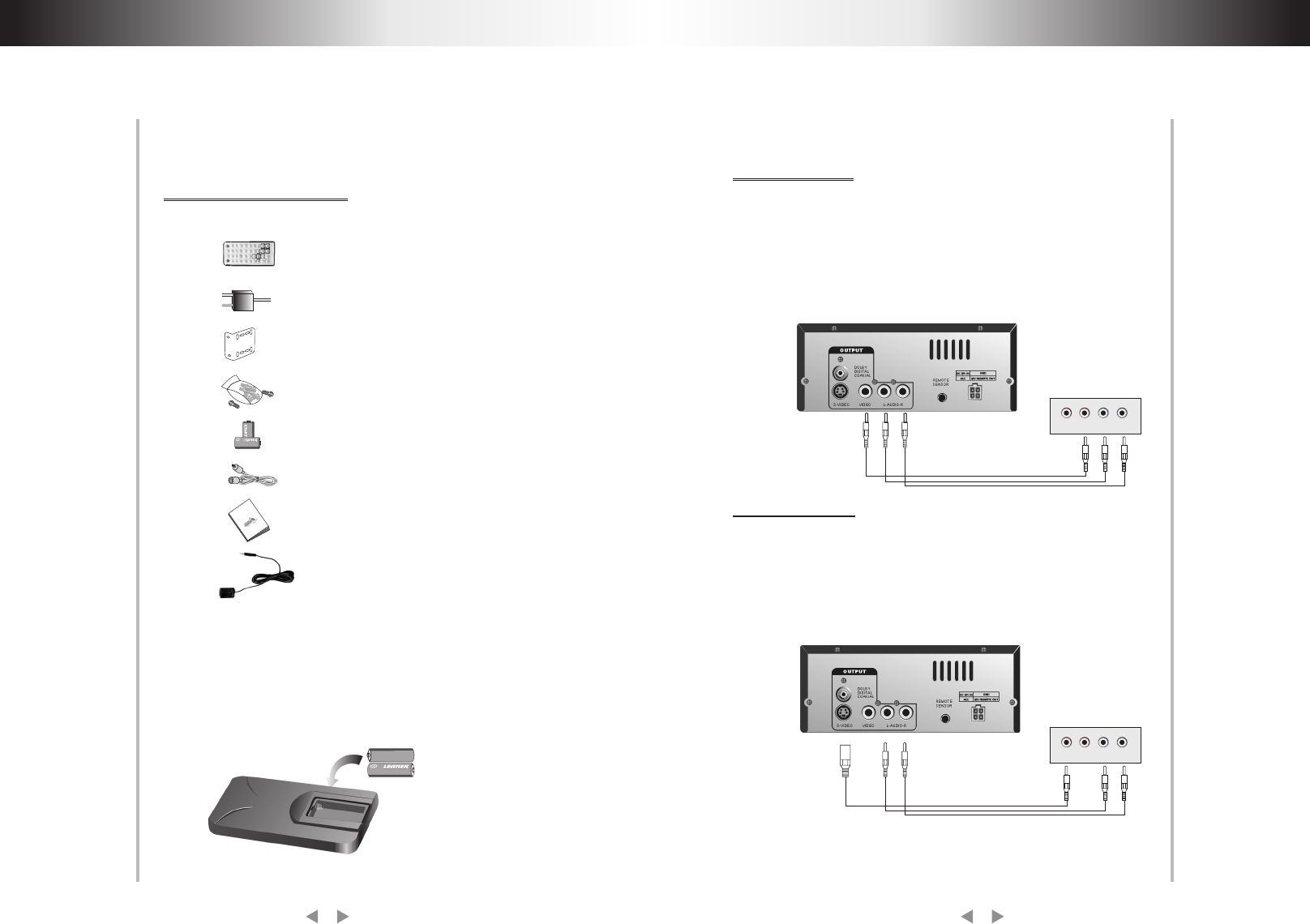

Preparation before operation
3. Preparation before operation
3.1 Unpacking and check
Check for the following Accessories:
S-videoterminal
Plug one end of S-video cableinto S-VIDEO socket in back panel
of the product, the other end into TV S-VIDEO socket, then
connect audio cable to TV (notes:do not connect video cable) .
Seediagramblow.
3.3Connections
The video signal is output through s-video or video output
terminal, whileaudio signalis outputby mixingchannel terminal,
coaxial terminal, dts signal is only output through or coaxial
terminal. There are many solutions to connect TV and this
product, user can select one according to the condition of the
apparatus to be connected. However, be aware to shut off all
powerpriorconnection.
Names of parts
3.2Assembling batteries of remote control
Open batterycompartment ,Insert two7#A batteries,make sure
to match "+" and "-" of the batteries to the marks in the battery
compartment. While operating remote control, please point it to
thefrontalpaneloftheDVDplayer.
Remote control 1
choke 1
Hanger 2
Screw
Battery 2
Audio/Video cord
Owner's manual 1
Remote sensor
5
-
D
V
D
P
la
y
er
DVD+TV
DVD player+TV
TV
TV
WHITE
RED
YELLOW
LRVIDEOS-VIDEO
WHITE
RED
LRVIDEOS-VIDEO
