Overview of EvolutionTV™
Video inputs

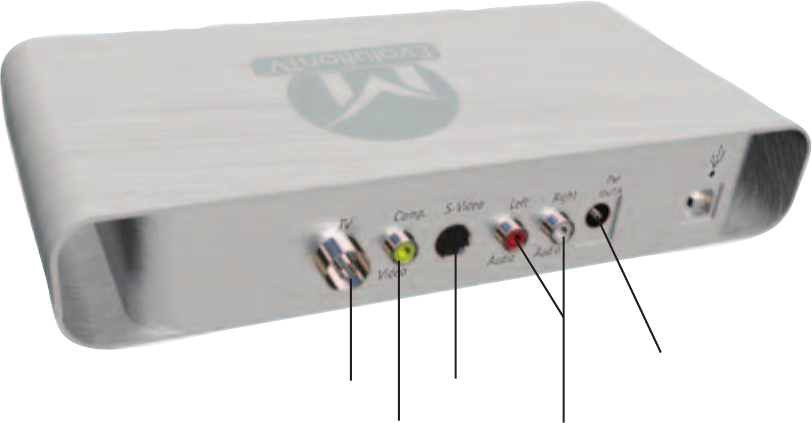

EvolutionTV™ features several video inputs:
• TV input
• Composite input
• S-Video input
• RCA Stereo audio input
• TV/Antenna connection: This connector should be used for your analogue TV cable coming
from an RF antenna or a cable box.
• Composite input: Composite is a widely used standard for connecting video
equipment. Note that the quality of this connection is not as good as
S-Video. This type of connector is often found on camcorders and
VCRs.
• S-Video input: This connection gives a better image quality than composite and is
generally found on mid-range camcorders, VCRs and DVD players. If
you intend to capture video from an analogue source, use this
connection whenever you can.
• Stereo audio IN: EvolutionTV™ card uses conventional RCA plugs
• Power: Connector for the power supply included in the package.
EvolutionTV™ User Guide
Page 3
Composite IN
S-Video IN
TV/Antenna
Audio IN
Power
