Connections
GB
11
CONNECTING TO THE SURROUND SOUND SYSTEM
VIDEO
OUT
VIDEO
OUTPUT
L
R
S-VIDEO
OUT
COAXIAL
DIGITAL
OUT
OPTICAL
DIGITAL
OUT
AUDIO
OUT
S-VIDEO
COMPONENT
TV
VIDEO
OUT
VIDEO
OUTPUT
L
R
S-VIDEO
OUT
COAXIAL
DIGITAL
OUT
OPTICAL
DIGITAL
OUT
AUDIO
OUT
S-VIDEO
COMPONENT
TO TV

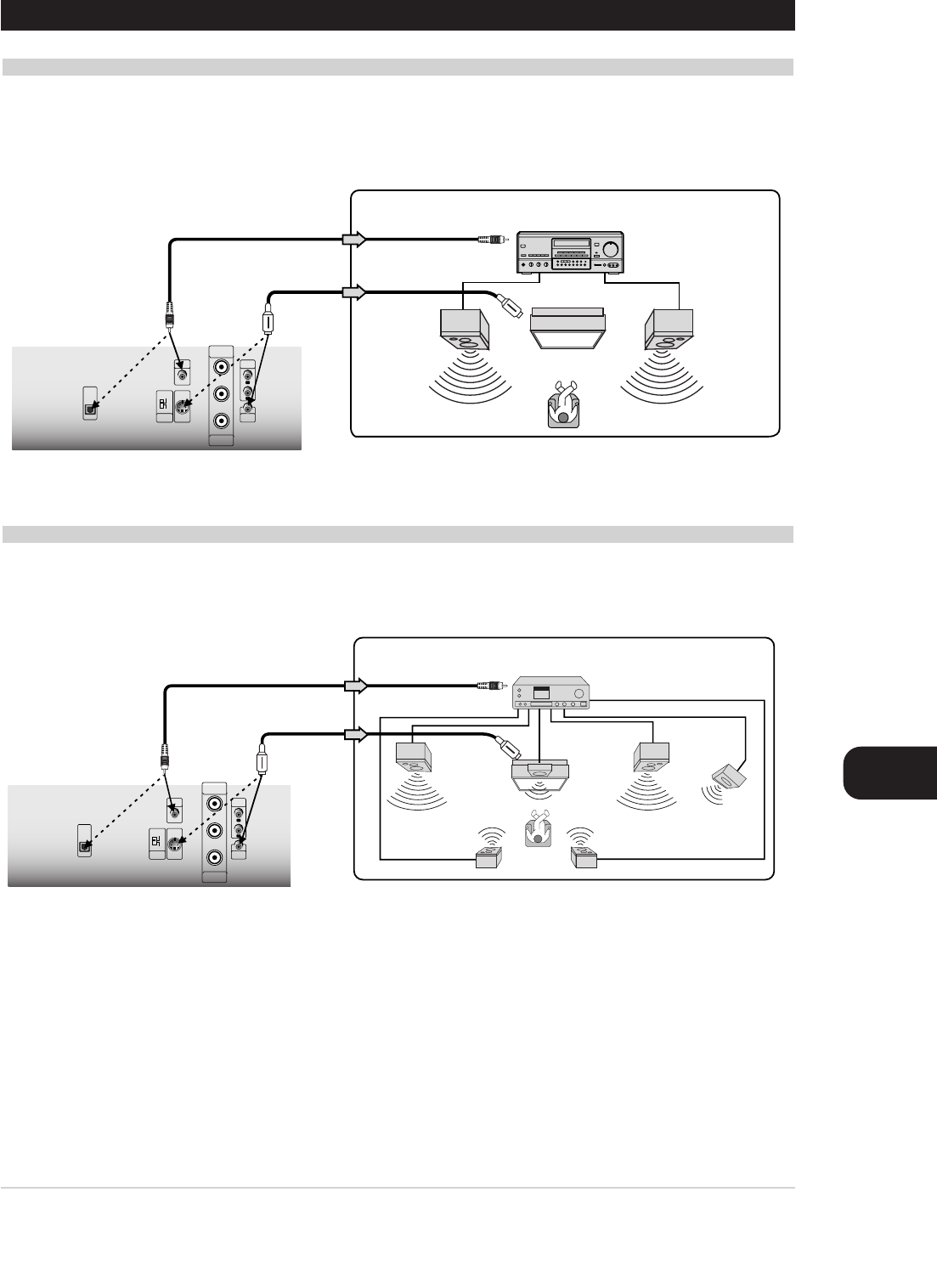

ENJOYING 2 CHANNEL DIGITAL STEREO SOUND
You can enjoy the dynamic sound of 2 Channel Digital Stereo by connecting this DVD player to a receiver equipped with a digital audio input and
speaker system (right and left front speakers).
To DIGITAL OUT
(COAXIAL or OPTICAL)
To S-VIDEO OUT
or VIDEO OUT
75 ohm coaxial cable or optical cable
To S-video input
or Video input
Connection example
Receiver equipped with a digital
audio input.
To digital audio input
Front speaker
(left)
TV
Front speaker
(right)
To DIGITAL OUT
(COAXIAL or OPTICAL)
To S-VIDEO OUT
or VIDEO OUT
75 ohm coaxial cable or optical cable
To S-video input
or Video input
S-Video cable or
Video cable
Connection example
Receiver equipped with a DTS
decoder.
To digital audio input
Front
speaker (left)
Centre
speaker
Front speaker
(right)
Sub woofer
Rear speaker
(left surround)
Rear speaker
(right surround)
NOTES
Refer to the owner’s manual of your receiver as well.
Before you connect the DVD player to other equipment, be sure to turn off the power and unplug all of the equipment from the wall outlet before
making any connections.
The output sound of the DVD player has a wide dynamic range. Be sure to adjust the receiver’s volume to a moderate listening level. Otherwise,
the speakers may be damaged by a sudden high volume sound.
•Turn off the receiver before you connect or disconnect the DVD player’s power cord. If you leave the receiver power on, the speakers may be
damaged.
S-Video cable
or Video cable
ENJOYING DTS SOUND
Your A/V Receiver or processor must be equipped with a DTS Decoder
The digital output (see selecting digital output page 20) must be set to “stream”.
The disc must have a DTS soundtrack
DTS and DTS Digital Out are trademarks of Digital Theater Systems Inc.
