NAD T532 DVD Player User Manual



Connections
GB
13
NOTES
Refer to the owner’s manual of your TV as well.
Before you connect the DVD player to your TV, be sure to turn off the power and unplug both units from the wall outlet before making any
connections.
Connect the DVD player to your TV directly. If you connect the DVD player to a VCR, the playback picture will be distorted because DVD video discs
are copy protected.
In case of the TV set corresponding to RGB signal, the RGB signal is automatically selected in the TV (Only when the VIDEO OUTPUT Switch is set
to COMPONENT on the Rear Panel).
WARNING
Do not set the Digital Audio Output of this DVD player to Dolby Digital unless you are connecting the DIGITAL OUT jack of this DVD player to an AV
decoder that has the Dolby Digital decoding function. High volume sound may damage your hearing as well as the speakers (Refer to Selecting Digital
Audio Output on page 20).
VIDEO
OUT
VIDEO
OUTPUT
L
R
S-VIDEO
OUT
COAXIAL
DIGITAL
OUT
OPTICAL
DIGITAL
OUT
AUDIO
OUT
S-VIDEO
COMPONENT

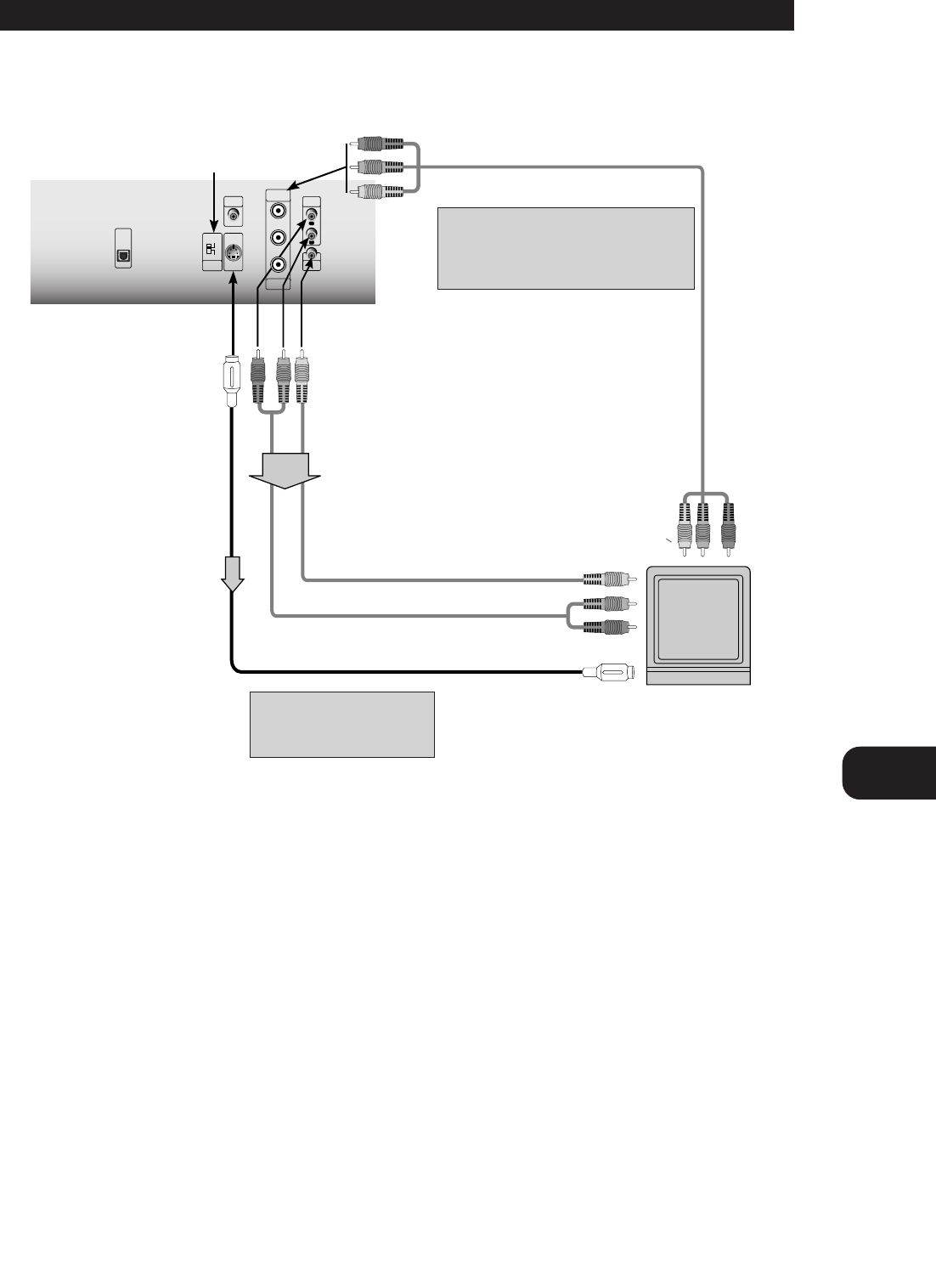

CONNECTING TO A TV
VIDEO OUTPUT SELECT switch
To S-VIDEO OUT
To AUDIO (L/R)/VIDEO OUT
Audio/Video cable (supplied)
To video input
To audio input
To S-video input
TV or monitor with
audio/video inputs
For using COMPONET signal, set the VIDEO
OUTPUT switch to COMPONENT or for using
S-VIDEO OUT jack, set the VIDEO OUTPUT
switch to S-VIDEO
If the TV has an S-video input,
connect the DVD player with the
S-video cable.
R
Y
Pb
Pr
COMPONENT
VIDEO OUT
PROGRESSIVE
SCAN
