Connections
Before making connections:
* First turn off the power of all the attached equipment and make connections.
* Refer to the user manual included with each separate piece of equipment.

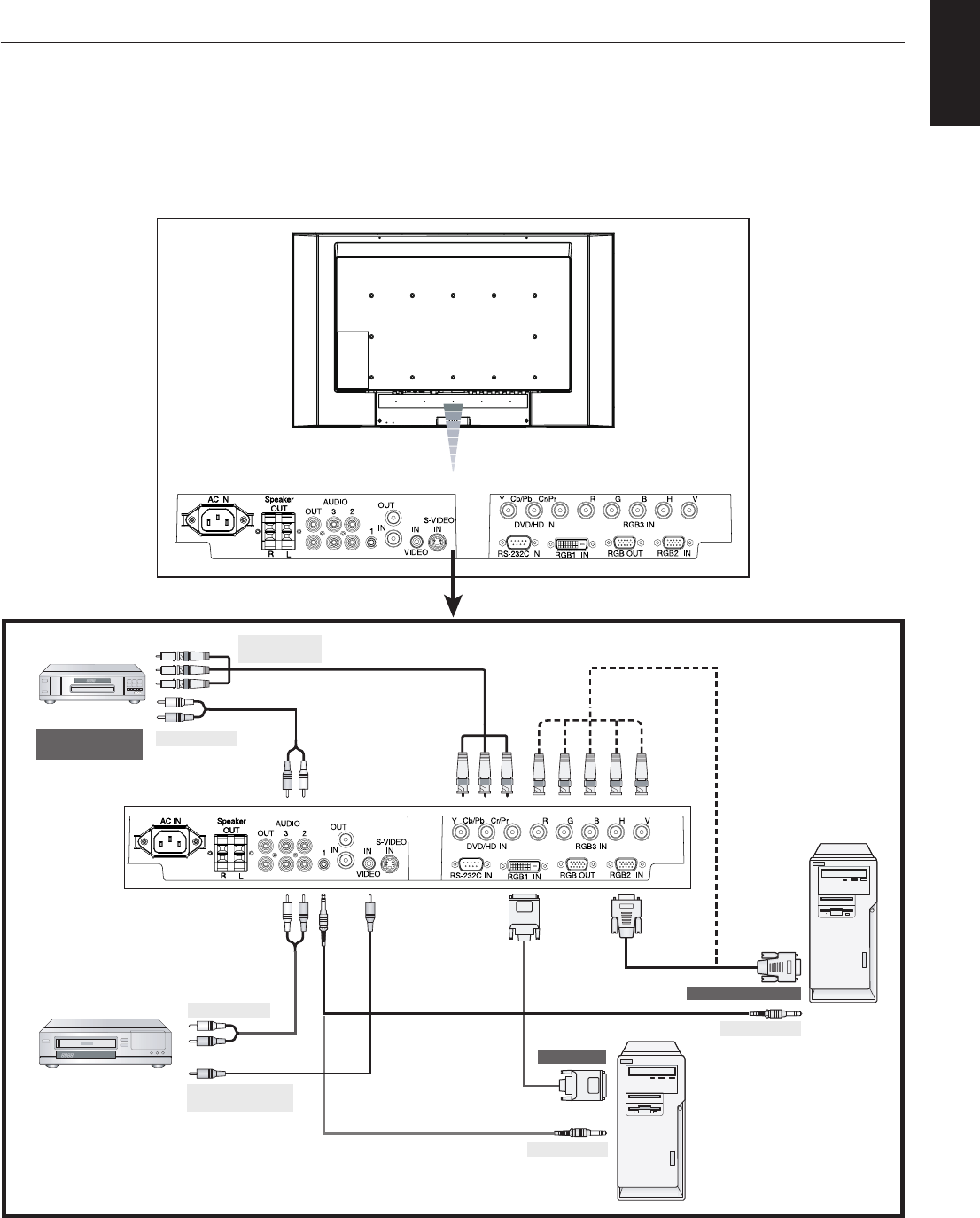

Wiring Diagram
Personal computer
BNC x 5BNC x 3RCA
RCA
RCA
RCA
To DVI output
Mini D-sub 15 pin
To DVD Component
video output
DVD player
To audio output
BNC-to-RCA
adapter BNC x 3
To audio output
VCR
To composite Output
In case of VCR
DVI-D connector
To audio output
To audio output
Equipment with
digital Interface
To analog RGB output
