Connect the LCD Monitor to a DVD Player
•To connect the DVD/HD IN connector (BNC) on the LCD monitor, use an BNC connector cable (sold separately).
Some DVD players may have different connectors such as DVI-D connector.
Select [DVI/HD] mode from the “DVI MODE” menu. For mode selection, see “DVI MODE” on page 24.
AUDIO IN 1, 2 and 3 can be used for audio input. To select audio source [AUDIO:1], [AUDIO:2] or [AUDIO:3] press the
AUDIO INPUT button.

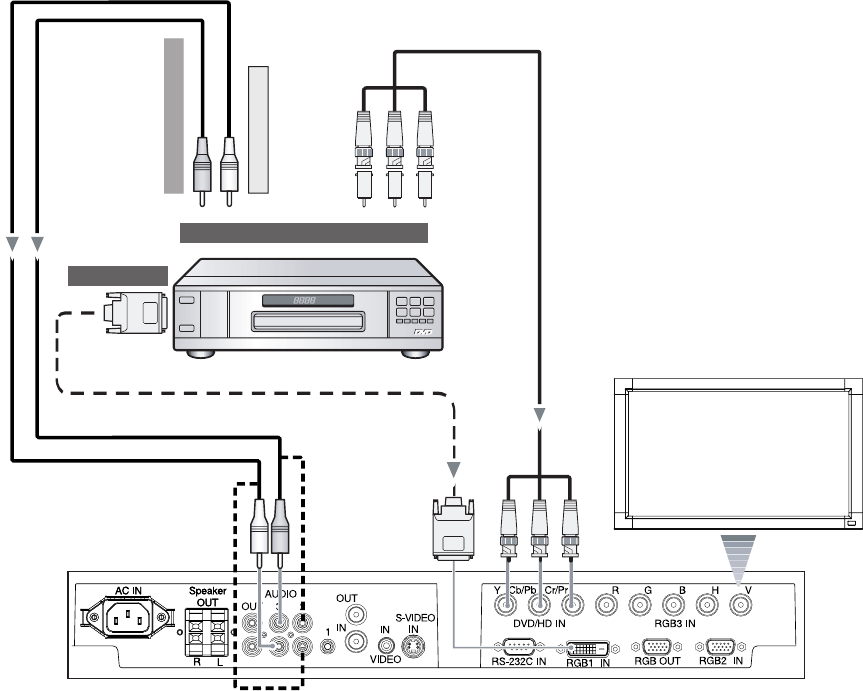

Connecting a DVD Player with component out
Connecting your DVD player to your LCD monitor will enable you to display DVD video.
Refer to your DVD player user’s manual for more information.
LCD monitor
DVI-D
connector
BNC x 3
To DVI output
To DVD Component video output
To audio left output
To audio right output
BNC-to-RCA
adapter BNC x 3
