OPERATION
Example include:
• Dropping a motorized screen
• Activating a television lift
• Turning on a voltage controlled switching device (e.g.: Niles AC-3 voltage controlled
switched outlet)
INSTALLATION
Simply plug a cable with a 3.5mm plug (tip=positive, sleeve=ground)
into the jack labeled “12VDC/200mA OUTPUT”. Connect the other end
of the cable to the device that will be triggered or a activated (Figure
8).“12VDC/200mA OUTPUT”. Connect the other end of the cable to the
device that will be triggered or activated (Figure 8).
POWER STATUS – INTRODUCTION
To properly wire an IntelliPad to the MSU250, refer to Figure 5
By providing 3-30 volt AC/DC to the status input jack of your MSU250
you can send a status signal to sensors or an IntelliPad without running any additional wiring. Built
into the MSU250 is a Niles status signal generator. When the MSU250 sees 3-30 volt AC/DC at the
status jack it broadcasts a status signal over your existing IR sensor wires. Any sensor or IntelliPad

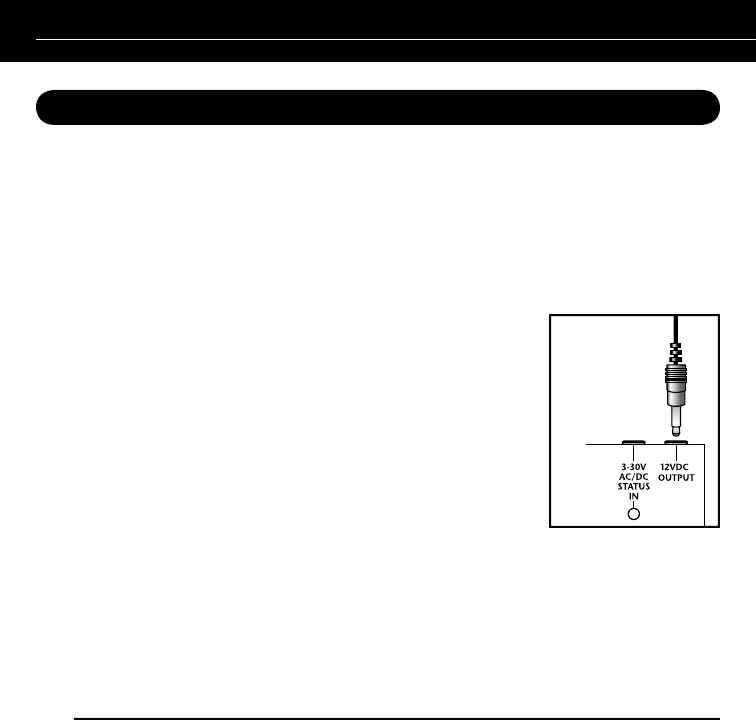

Figure 8
12
(CONTINUED ON NEXT PAGE)
