Sylvania 6720FDG TV DVD Combo User Manual



EN
AUDIO OUT
COAXIAL
To Coaxial digital
Audio input jack
Audio coaxial digital cable
(commercially available)
To AUDIO OUT
COAXIAL jack
(DVD AUDIO OUT Only )
Dolby Digital
decoder
AUDIO OUT
COAXIAL
or
MD deck,
DAT deck, etc.
To Coaxial digital
Audio input jack
7

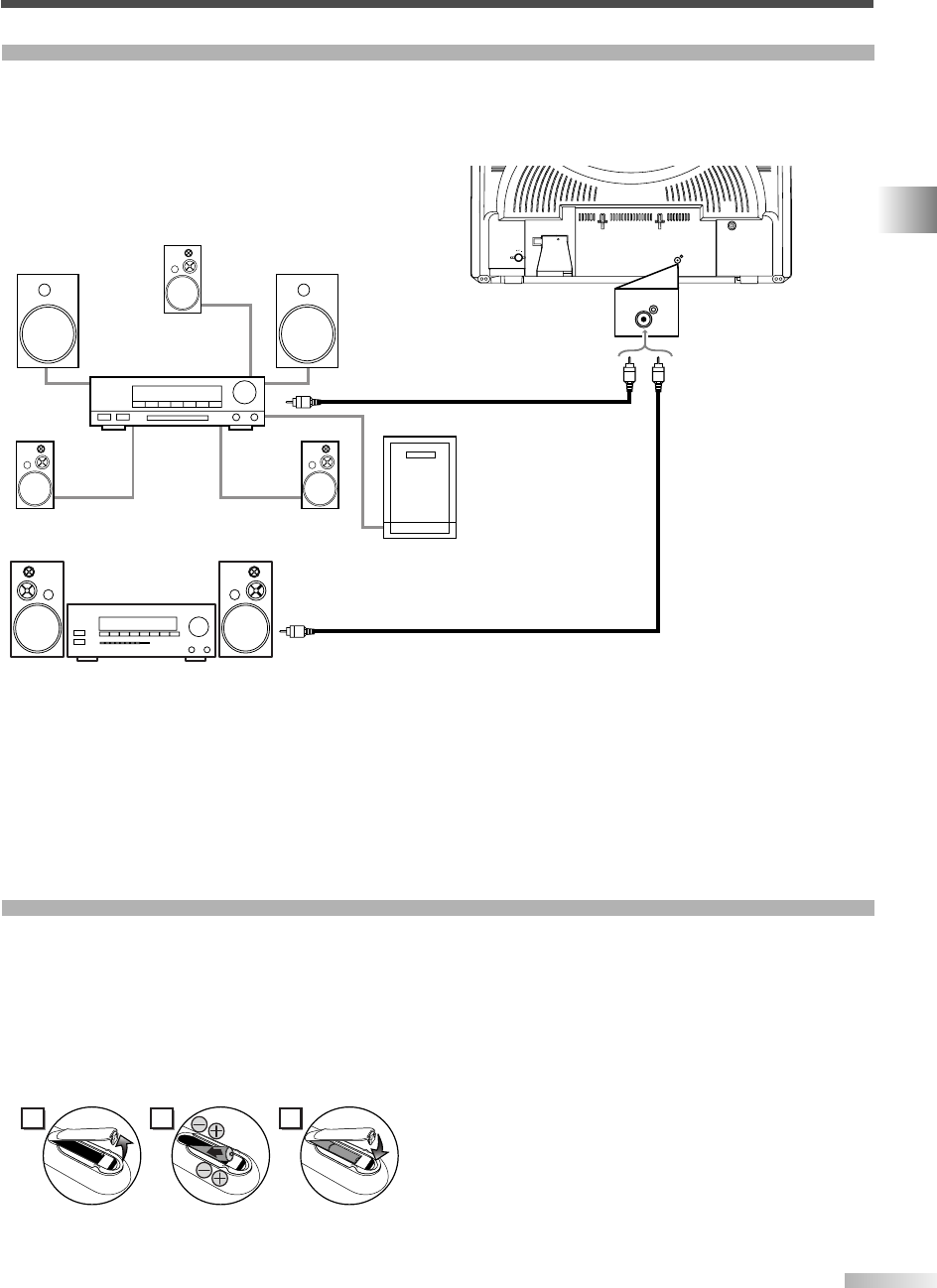

You can connect this unit to a digital audio device to enjoy the digital audio of DVD. Connect to an amplifier
equipped with digital input jacks, such as MD deck or DAT deck. To play a DVD disc in a Dolby Digital Multi-
channel surround format in this unit, connect to a Dolby Digital decoder.
Use an audio coaxial digital cable (commercially available) for the audio connections.
CONNECTING TO A DIGITAL AUDIO DEVICE (REAR)
(OUT)
(IN)
(IN)
NOTES:
• The audio source on a disc in a Dolby Digital Multi-channel surround format cannot be recorded as digital sound by an
MD or DAT deck.
• Be sure to turn off the power to all devices in the system before connecting another device.
• Refer to the Owner's Manuals for the devices to be connected to the unit.
• To connect to a MD or DAT deck, set "DOLBY DIGITAL" to "PCM" for the audio output in the setup mode, and to con-
nect to a Dolby Digital decoder, set to "BITSTREAM" (Refer to "AUDIO SETTING" on page 30). Playing a unit using
incorrect settings may generate noise distortion and may also damage the speakers.
21 3
INSTALLING THE BATTERIES IN REMOTE CONTROL
1) Open the battery compartment cover by pressing
the cover on the remote unit in the direction of
the arrow.
2) Insert 2 “AA” penlight batteries into the battery
compartment in the direction indicated by the
polarity (+/-) markings.
3) Replace the cover.
[BATTERY PRECAUTIONS]
Be sure to follow the correct polarity as indicat-
ed in the battery compartment. Reversed batter-
ies may cause damage to the device.
Do not mix different types of batteries together
(e.g. Alkaline and Carbon-Zinc) or old batteries
with fresh ones.
If the device is not to be used for a long period
of time, remove the batteries to prevent damage
or injury from possible battery leakage.
Do not try to recharge batteries not intended to
be recharged; they can overheat and rupture.
PREPARATION FOR USE
