Connections
There will be various ways of connecting STB to other devices. Make your connection according to your
choice of devices, screen format, and sound format.
You will find some sample connections in the following pages.
• All jacks on STB will not need to connected.
• When you change the connections, all devices should be turned off.
• Refer to each owner’s manual for further information on other devices.

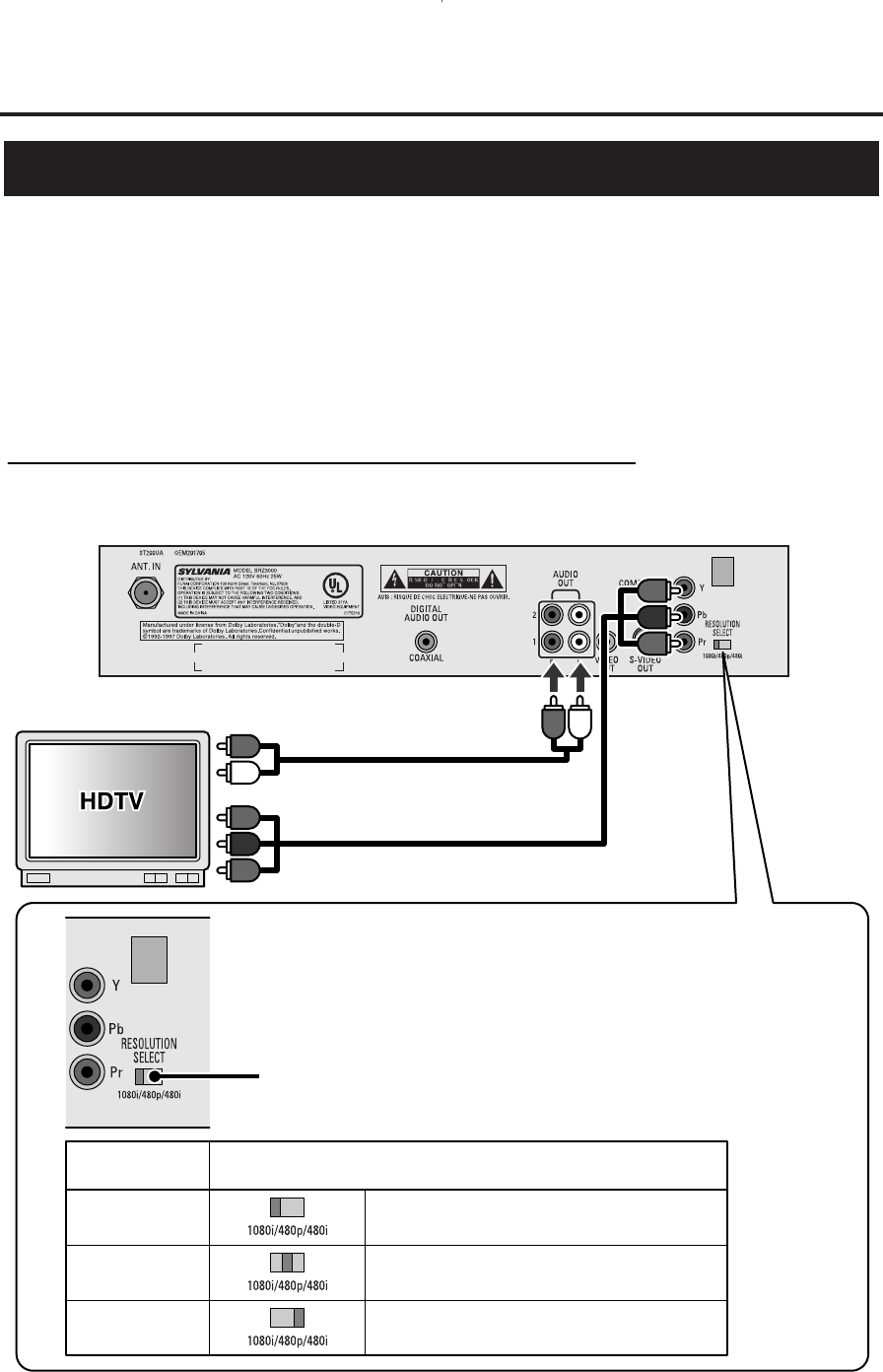

STB connection using COMPONENT video output to TV
e.g.: Connection to HDTV
Rear panel of STB
Audio cable
Component
video cable
To audio input jacks (L, R)
To component video input jacks (Y/ Pb/ Pr)
Position of Resolution Selection Switch
If your TV is capable of displaying 1080i,
then select 1080i as shown.
If your TV is capable of displaying 480p,
then select 480p as shown.
If your TV is capable of displaying 480i,
then select 480i as shown.
1080i
480p
480i
TV Format
NOTE:
Component video cable and audio cable are not included.
Resolution Selection Switch (1080i, 480p, 480i)
Refer to the TV owner’s manual for the video resolution of your TV.
Connections to other devices
