VCR functions Others
Español
Connections
Recording Playing discs EditingBefore you start Connections Getting started
Changing the
Setup menu
DVD/VCR
DVD/VCR
ANTENNA
IN
OUT
ANTENNA
IN
OUT
RF cable
(supplied)
RF Cable (supplied) RF Cable
(Back of this unit)
IN
OUT
E
(Back of TV)
(Back of TV)
IN
OUT
(Cable box or
Satellite box)
E
Cable
Signal
Connection B
Cable TV signal
(Back of this unit)
(Cable box or
Satellite box)

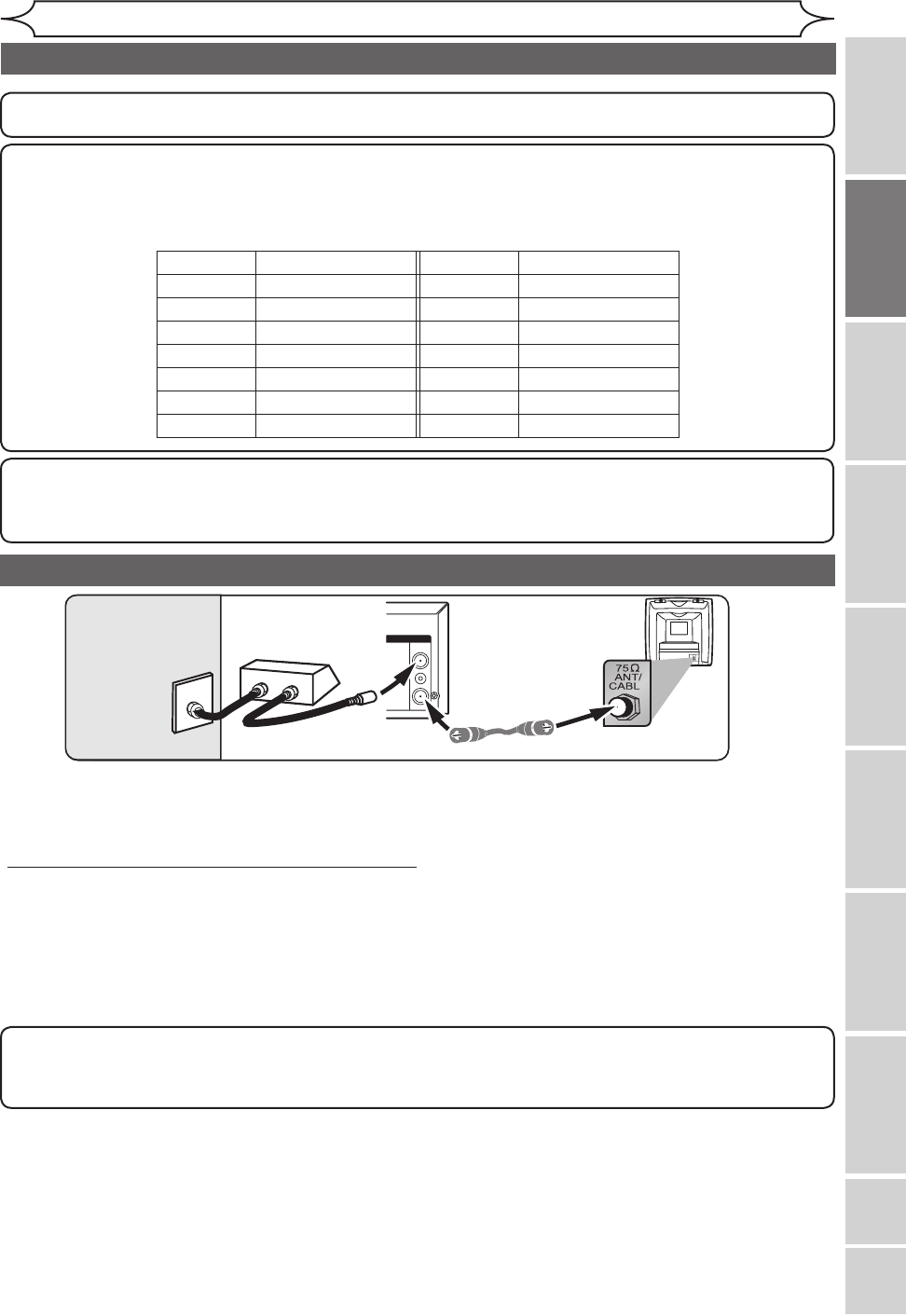

Connection to a cable box or satellite box
Note to the Cable TV System Installer :
This reminder is provided to call the Cable TV system installer’s attention to Article 820-40 of the National
Electrical Code, which provides guidelines for proper grounding - in particular, specifying that the cable ground
shall be connected to the grounding system of the building, as close to the point of cable entry as possible.
This connection allows you to view or record a scrambled channel. With this connection, channels cannot be
changed on this unit. You can view or record ONLY the channels you have selected on the cable box or the
satellite box.
• While you are recording, only the recorded channel can be viewed.
To select channels of the cable box or satellite box
1) Turn on this unit by pressing
[POWER]. The “POWER” indicator on the front panel will appear. Then, press
[CHANNEL L / K] to select channel 3 or 4 (the same channel as the output channel of the cable box or
satellite box).
• If noise appears on the TV screen, press
[VIDEO/TV] on the remote control.
• If you use the channel 4, you will need to change this unit’s RF output to channel 4. Refer to “RF output
switch” on page 81.
2) At the TV, select channel 3 or 4 (the same channel as you have selected at step 1).
3) At the cable box or satellite box, select the channel you want to view or record.
After you have completed connections
• Switch the input selector on your TV to an appropriate external input channel (usually near channel 0).
Press a button on the TV’s original remote control that selects an external input channel until the DVD
recorder’s picture appears. Check your TV owner’s manual for details.
Admiral
Curtis Mathis
GE
Hitachi
JVC
Kenwood
LXI-Series
Magnavox
AUX
LINE1, LINE2, 00, 90, 91, 92, 93
INPUT, TV/VCR, 00, 90, 91, 92, 93
INPUT, AUX
VIDEO, VIDEO 1, VIDEO 2, VIDEO 3
AUX
00
AUX CHANNEL
Input Mode Names for Common TV Brands (Example)
Panasonic
RCA
Samsung
Sanyo
Sharp
Sony
Toshiba
Zenith
TV/VIDEO
INPUT, TV/VCR, 00, 90, 91, 92, 93
TV/VIDEO
VIDEO
00
VIDEO1, VIDEO2, VIDEO3
TV/GAME
00
Connection to a TV (cont’d)
To set progressive scan mode, refer to pages 72-73
• This unit compatible with the Progressive Scan System. The feature provides you with the higher definition
images than the traditional output system does. To utilize this feature, you must set Progressive Scan mode
to “ON”.
Note
Set your TV to channel 3 or 4 if you use coaxial connection.
