12
EN
C
ONNECTION

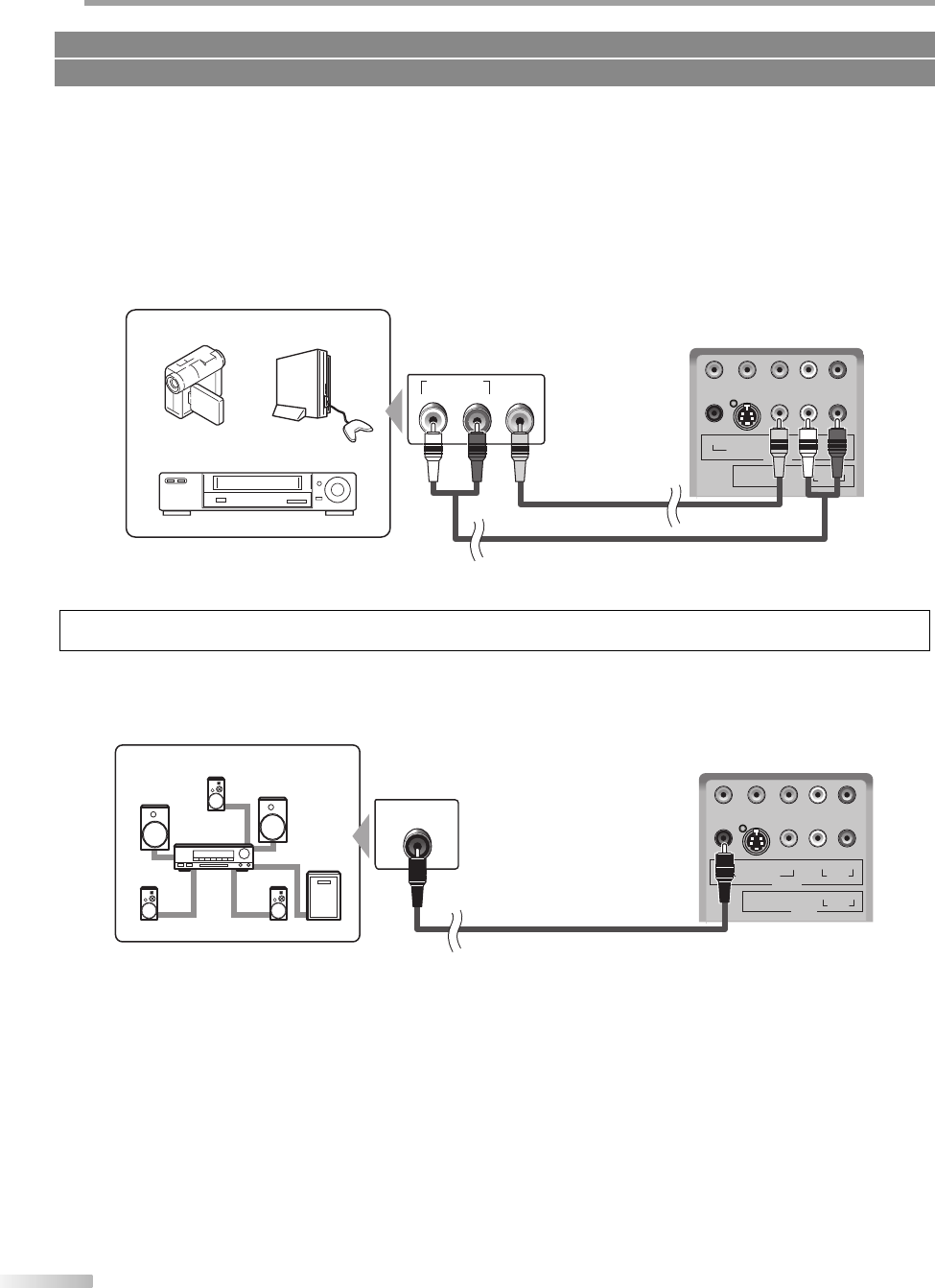

[Video Connection]
Video connection offers standard picture quality for video devices connected to the unit.
If you connect to the unit’s video input jack, connect RCA audio cables to the audio L/R jacks of VIDEO1.
When the audio jack of the video device is monaural, connect the RCA audio cable to the audio L input jack.
LR
PrPbY
VIDEO 1
LR
AUDIO
AUDIO
COMPONENT
VIDEO 2
VIDEOS-VIDEOCOAXIAL
AUDIO OUT
RL
VIDEO
OUT
rear of this unit
RCA audio cable
RCA video cable
camcorder video game
VCR
e.g.)
Note:
• If you connect to the S-video jack and the video jack at the same time, the S-video connection will have priority.
[Digital Audio Output Connection]
If you connect this unit to an external digital audio device, you can enjoy multi-channel audio like 5.1ch digital
broadcasting sound.
LR
PrPbY
VIDEO 1
LR
AUDIO
AUDIO
COMPONENT
VIDEO 2
VIDEOS-VIDEOCOAXIAL
DIGITAL AUDIO
COAXIAL IN
rear of this unit
digital audio coaxial cable
Dolby Digital decoder
e.g.)
Cables not included.
Please purchase the necessary cables at your local store.
