NOTE:
Before plugging the antenna into the ANT. IN jack of the TV/DVD, check that
the pin is not bent. If it is bent, straighten the pin as illustrated, then plug the pin
into the ANT. IN jack of the TV/DVD.
PREPARATION FOR USE
ANTENNA/CABLE CONNECTIONS
CABLE WITH CONVERTER/DESCRAM-
BLER BOX OR SATELLITE BOX
If your cable service supplies you with a converter
box or if you use a satellite system, you can use the
basic connection shown here.
Channel selection must be made with the converter
box or satellite box. This means that channels cannot
be changed using the TV/ DVD Remote Control.
TO VIEW A SCRAMBLED/UNSCRAMBLED
CHANNEL
1.Set the TV/DVD channel selector to the output
channel of the Cable Converter Box or Satellite
Box. (Ex. CH3)
2.Select the channel to view on your Cable Converter
Box or Satellite Box.
Bent pin
Cable
Plug
(Needs to be straightened)
(Straight pin)
COAXIAL
ANT.
ANT.
IN
OUT
VHF/UHF Antenna
(Not supplied)
VHF/UHF
Combiner
(Not supplied)
Flat twin-lead cable
UHF Antenna
(Not supplied)
VHF Antenna
(Not supplied)
From
Cable System
75-ohm Coaxial
Cable (Not supplied)
Satellite Box or
Cable Box
(Not supplied)
From Cable System or
Satellite Dish
or
or
or

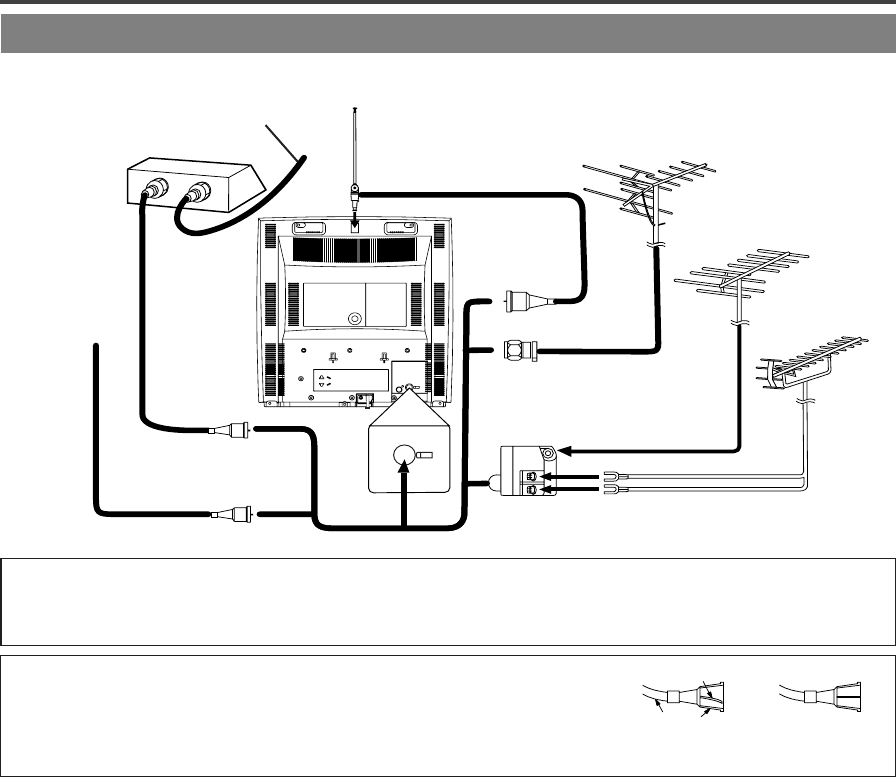

[Fig. 4]
VHF/UHF COMBINED ANTENNA
The VHF/UHF Rod Antenna (not supplied) is detach-
able. Insert the stem of the antenna into the hole on
the upper-back portion of the TV/DVD. Connect the
VHF/UHF Rod Antenna or VHF/UHF Combination
Antenna to the ANT. terminal of the TV/DVD as
shown in the diagram above. For the best reception,
fully extend the VHF/UHF Rod Antenna and make
the necessary adjustments. (Avoid touching the top
section when adjusting.)
VHF/UHF SEPARATE ANTENNAS
In some areas it will be necessary to use an outdoor
antenna.
CABLE WITHOUT CONVERTER/
DESCRAMBLER BOX
Use this connection if your cable system connects
directly to your TV/DVD without a converter box.
Use the TV/ DVD Remote Control to select channels.
Note to CATV system installer:
This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC that provides
guidelines for proper grounding and in particular, specifies that the cable ground shall be connected to the grounding
system of the building as close to the point of cable entry as practical.
Rod Antenna
(Not supplied)
or
