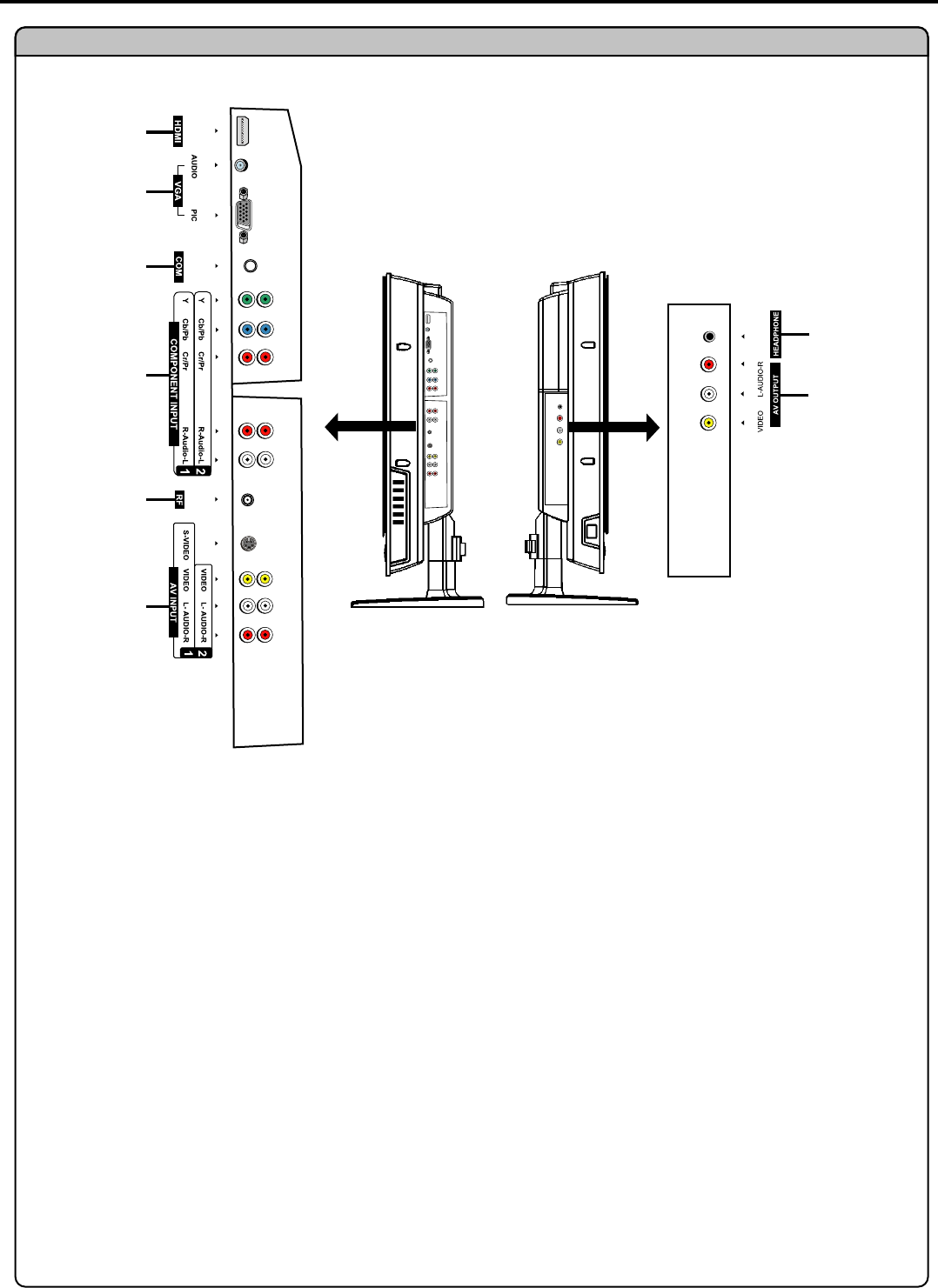

Identification of Controls (continued)
7
8
1. HDMI interface
2. VGA input/Audio in
Connect to the VGA /audio output sockets on your PC.
3. COM port
For service only. The user cannot operate the unit through the COM port.
4. Component inputs
Connect to the component and audio output sockets of a DVD player or Set-Top Box.
5. Antenna input
Allows you to connect cable or outdoor antenna.
6. AV inputs (S-Video, Video, Audio L, R)
Receive video/audio signals from external sources such as VCR or DVD player.
7. Headphone jack
8. AV outputs (Video, Audio L, R)
Connect to the VCR input jacks to record programs.
Main Unit
1
2
3
7
4
5
6
