E-5

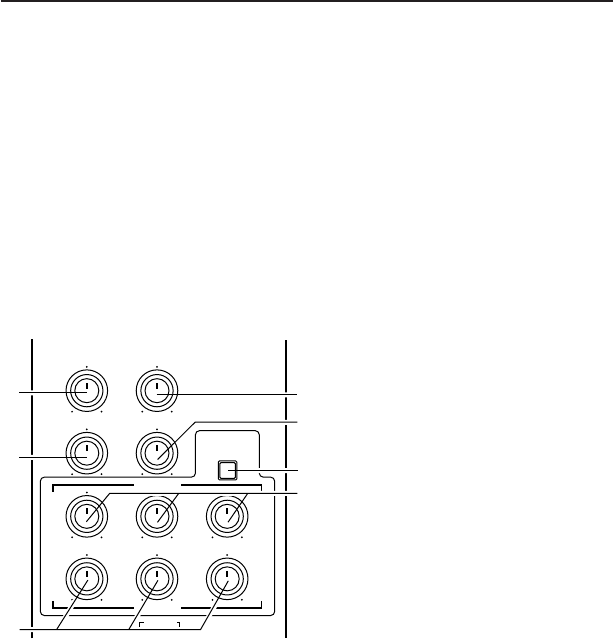

Parts and Their Functions
G
PAINTING ENABLE button
This button enables the painting (GAIN control
H
and BLACK control
I
) operations.
H
PAINTING GAIN control
This control is used to adjust the R, G and B gain.
DETAIL control
This control enables the master detail to
be adjusted.
C
D
GAMMA control
This control enables the camera’s master
gamma to be adjusted.
I
PAINTING BLACK control
This control is used to adjust the R, G and B pedestal.
F
KNEE SLOPE control
This control is used to set the manual
knee slope.
E
KNEE POINT control
This control is used to set the manual
knee point.
@
SHUTTER speed selector dial
This switch is used to select the shutter speed. SYNCHRO SCAN, SUPER V or any speed
from 1/100 (60) to 1/2000 can be selected.
When the SHUTTER switch ? is OFF, the shutter will not operate even if the SHUTTER
SPEED selector switch is turned.
A
SETUP switch
This switch is used to perform the camera settings. When it is at the ON position, the menu is
displayed at PIX OUT on the base station.
B
SETUP dial
This dial is used to set the SETUP menu. After using it to make a selection, press it to enter
the selection. When the SETUP switch A has been set to ON, the menu settings can be
performed. When it has been set to OFF and SYNCHRO SCAN has been selected, the
SYNCHRO SCAN speed can be set.
F
G
C
D
E
H
I
DETAIL
KNEE POINT
KNEE SLOPE
GAIN
BLACK
CALL
TALLY
IRIS
GRB
GAMMA
PAINTING
ENABLE
