RQT6920
Setting up

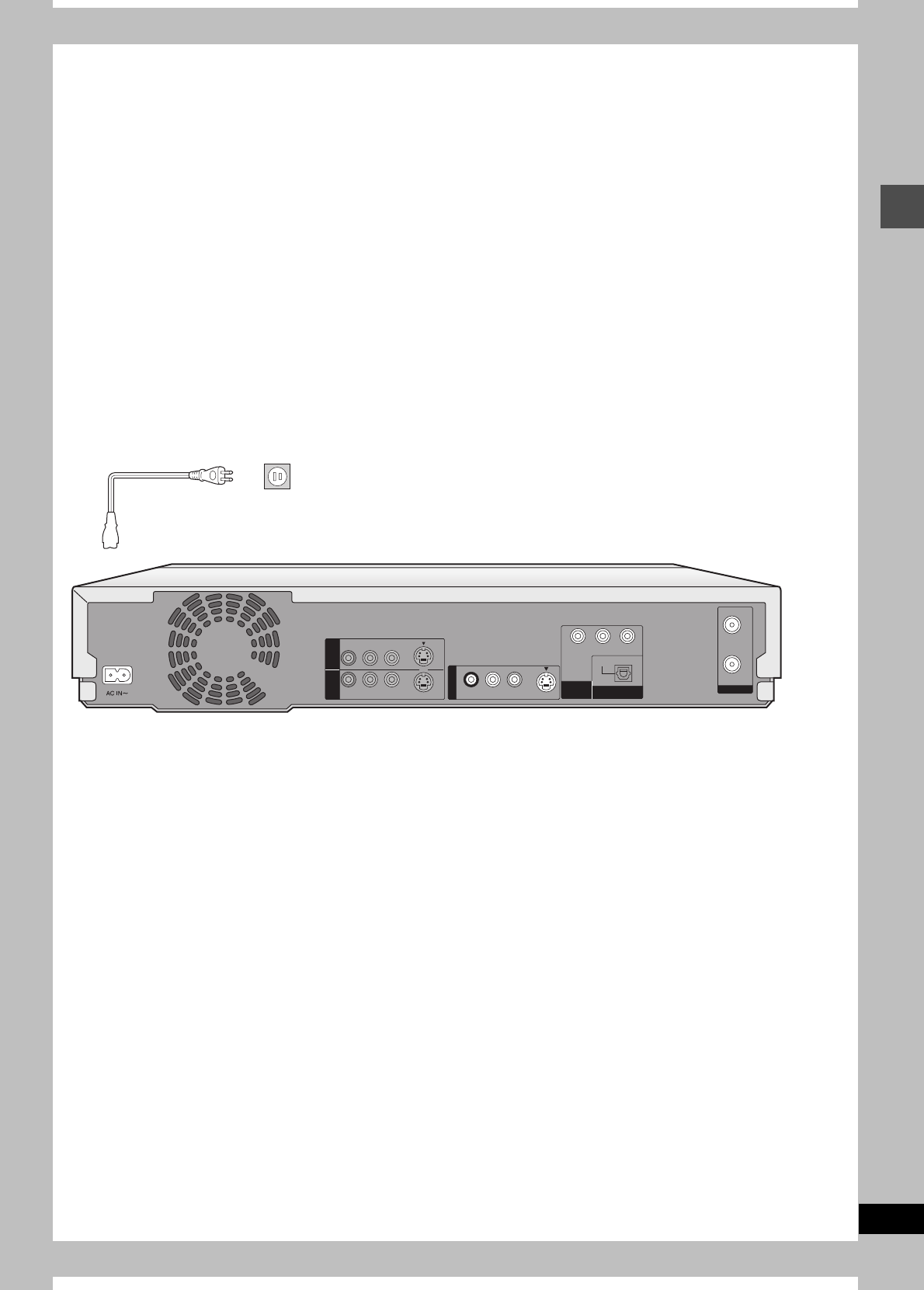

STEP 1 Antenna and television connections
Preparation
≥Refer to the television’s operating instructions.
≥Turn the television off and disconnect its AC power supply cord.
To enjoy sound through other audio equipment (
➜
page 42)
To enjoy progressive video
Connect to the component video (480P) input terminals on a televi-
sion compatible with this unit’s copy guard system. (Video will not
be displayed correctly if connected to an incompatible television.)
≥All Panasonic televisions that have 480P input terminals are com-
patible. Consult the manufacturer if you have another brand of
television.
R-AUDIO-L
VIDEO
OPTICAL
DIGITAL AUDIO OUT
(PCM/BITSTREAM)
OUT
R-AUDIO-L
R-AUDIO-L
VIDEO
VIDEO
S-VIDEO
S-VIDEO
(L3)
(L1)
IN 1 IN 3
S-VIDEO
COMPONENT
VIDEO OUT
(480P/480I)
YPB PR
VHF/UHF
RF IN
RF OUT
