Specifications
General
System . . . . . . . . . . . . . . . . . . . . . . . . DVD player
Power requirements . . .AC 220–240 V, 50/60 Hz
Power consumption . . . . . . . . . . . . . . . . . . 12 W
Power consumption (standby) . . . . . . . .0.12 W
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2.1 kg
Dimensions. . 420 (W) x 55 (H) x 243 (D) mm
Operating temperature . . . . . . . +5°C to +35°C
Operating humidity . . . . . . . . . . . . . . . 5% to 85%
(no condensation)
AV connector output

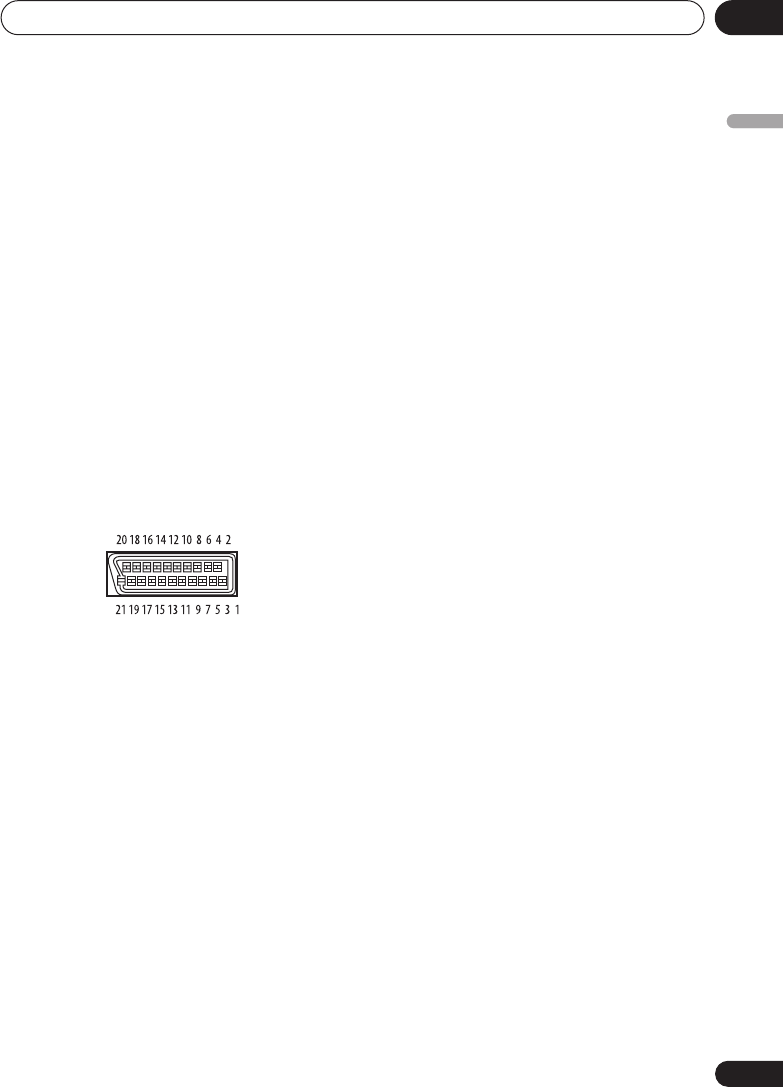

AV Connector (21-pin connector assignment)
AV connector output . . . . . . . . .21-pin connector
This connector provides the video and audio
signals for connection to a compatible colour TV
or monitor.
PIN no.
1. . . . . . . . . . . . . . . . . . . . . . . . . . . . Audio 2/R out
3. . . . . . . . . . . . . . . . . . . . . . . . . . . . .Audio 1/L out
4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .GND.
7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B out.
8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Status.
11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . G out
15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . R or C out
17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GND.
19. . . . . . . . . . . . . . . . . . . . . . . . Video out or Y out
21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GND
Component video output
Y (luminance) - Output level . . . . . . 1 Vp-p (75
Ω
)
P
B
(color) - Output level . . . . . . . 0.7 Vp-p (75
Ω
)
P
R
(color) - Output level . . . . . . . 0.7 Vp-p (75
Ω
)
Jack. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . RCA
S-video output
Y (luminance) - Output level . . . . . 1 Vp-p (75
Ω
)
C (color) - Output level . . . . . . .286 mVp-p (75
Ω
)
Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S-video
Video output
Output level . . . . . . . . . . . . . . . . . . 1 Vp-p (75
Ω
)
Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .RCA
Audio output (2 stereo pair)
Output level. . . . . . . . . . . . . During audio output
200 mVrms (1 kHz, –20 dB)
Number of channels . . . . . . . . . . . . . . . . . . . . . 2
Jacks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .RCA
Digital audio characteristics
Frequency response . . . . . . . . . . 4 Hz to 44 kHz
(DVD fs: 96 kHz)
S/N ratio . . . . . . . . . . . . . . . . . . . . . . . . . . .115 dB
Dynamic range . . . . . . . . . . . . . . . . . . . . . .101 dB
Total harmonic distortion. . . . . . . . . . . . 0.0020 %
Wow and flutter . . . . . . . .Limit of measurement
(±0.001% W. PEAK) or lower
Digital output
Coaxial digital output . . . . . . . . . . . . . . .RCA jack
Optical digital output . . . . . . .Optical digital jack
Accessories
Audio/video cable. . . . . . . . . . . . . . . . . . . . . . . . 1
Power cable. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . 1
AA/R6P dry cell batteries . . . . . . . . . . . . . . . . . 2
Warranty card . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Operating Instructions
The specifications and design of this product are subject to
change without notice, due to improvement.
