INSTALLATION
English - 21

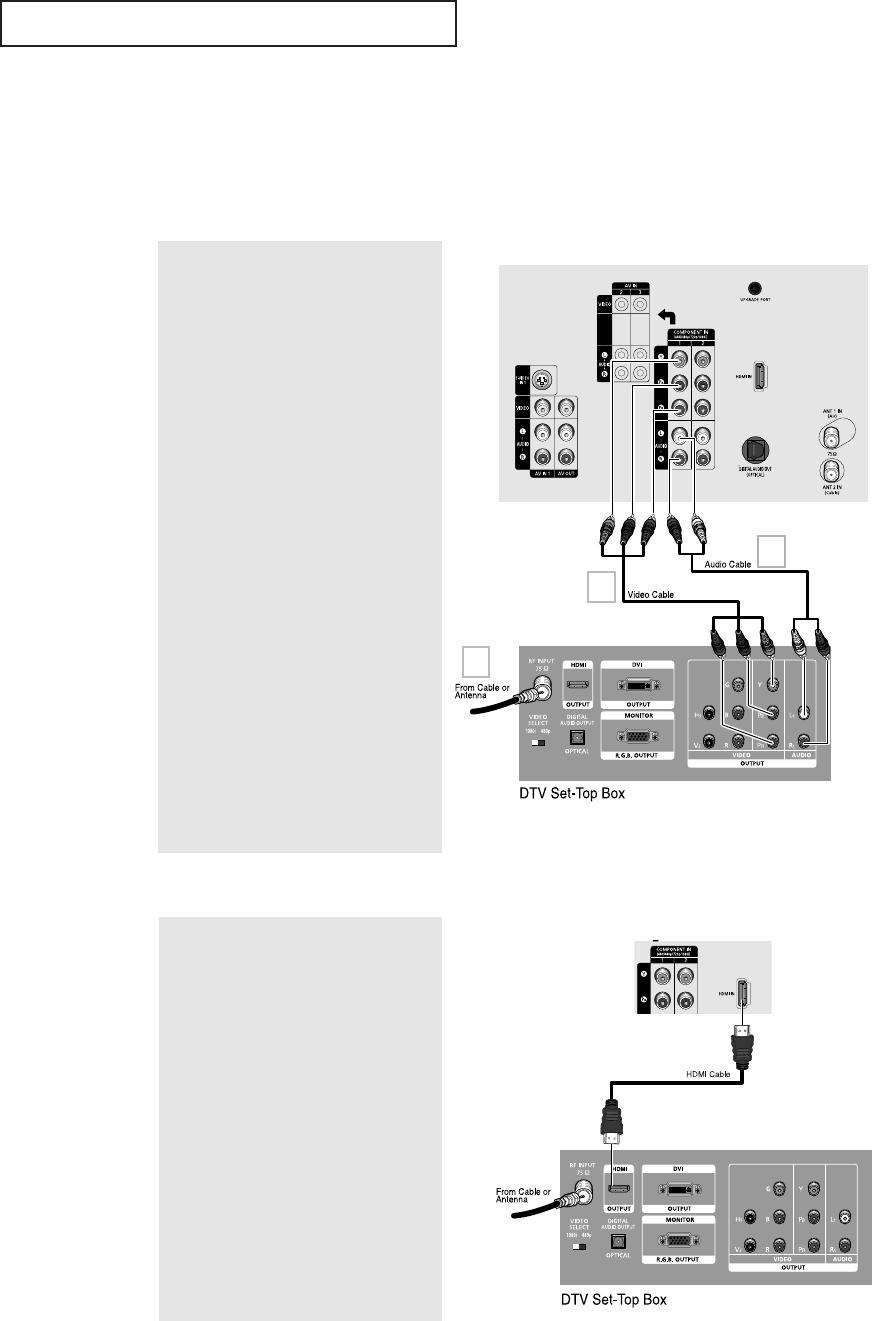

Connecting a Digital TV Set-Top Box
The rear panel jacks on your TV make it easy to connect a set-top box to your TV.
• Please be sure to match the color coded input terminals and cable jacks.
Connecting to Y, PB, PR
1
Connect a coaxial cable to the
ANTENNA IN terminal on the set-top
box.
2
Connect a set of audio cables between
the “COMPONENT IN 1 (L, R)” (or
“COMPONENT IN 2 (L, R)”) jacks on the
TV and the AUDIO OUT jacks on the
set-top box.
3
Connect a set of video cables between
the “COMPONENT IN 1 (Y, P
B
, P
R
)” (or
“COMPONENT IN 2 (Y, P
B
, P
R
)”) jacks
on the TV and the VIDEO OUT (Y, P
B
, P
R
)
jacks on the set-top box.
The connections for a typical set-top
box are shown.
For detailed information, refer to the
set-top box instruction manual.
TV Rear Panel
Connecting to HDMI (High Definition Multimedia Interface)
Connect an HDMI cable between the
“HDMI IN” jack on the TV and the
HDMI OUT jack on the set-top box.
Please check that the HDMI source is
powered on. If not, you can not select
“HDMI” in the “Source List” on-screen
menu.
TV Rear Panel
2
3
1
