SCEPTRE X42 HDTV User Manual
- 40 -
www.SCEPTRE.com
For Your Xbox 360…

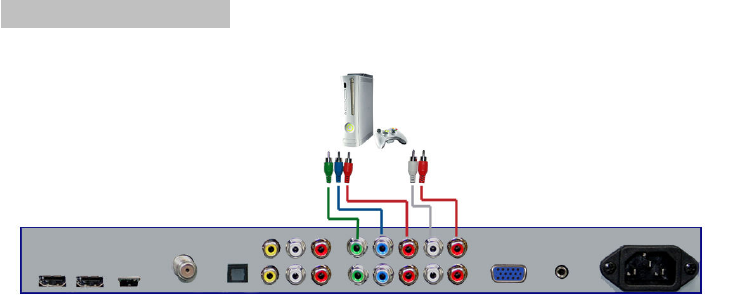

1. Make sure the power of X42 LCD HDTV and your Xbox 360 is turned off.
2. Obtain the Xbox360 Component Cable. Connect the green color
connector to Component 1’s green connector port off the back of your
X42 LCD HDTV.
3. Connect the blue color connector to Component 1’s blue connector port
off the back of your X42 LCD HDTV.
4. Connect the red color connector to Component 1’s red connector port off
the back of your X42 LCD HDTV.
5. Connect the white color connector Component 1’s white connector port
off the back of your X42 LCD HDTV to the right side of your green, blue,
red component connection.
6. Connect the red color connector to Component 1’s red connector port off
the back of your X42 LCD HDTV to the right side of your green, blue, red
component connection.
7. Connect the gray head to your Xbox 360 and make sure the switch on
the head is switched to HD.
8. Turn on the X42 LCD HDTV and your Xbox 360.
9. Use the remote control’s source button or the source button on the right
side of the TV to switch to YPbPr 1.
Please Note :
• Make sure to not confuse the red connector for video with the
red connector for audio, they are on separate rows on the Xbox
360’s connector.
• If Component 1 is already occupied, please use Component 2 as
your connection port and switch to source YPbPr 2.
• Please reference the Xbox 360’s manual as well, to make sure
the Xbox 360 is configured to output correctly to the TV.
