MD-MT888H
Important Introduction
-Names of Controls and Indicators-
Names of Controls and Indicators
„

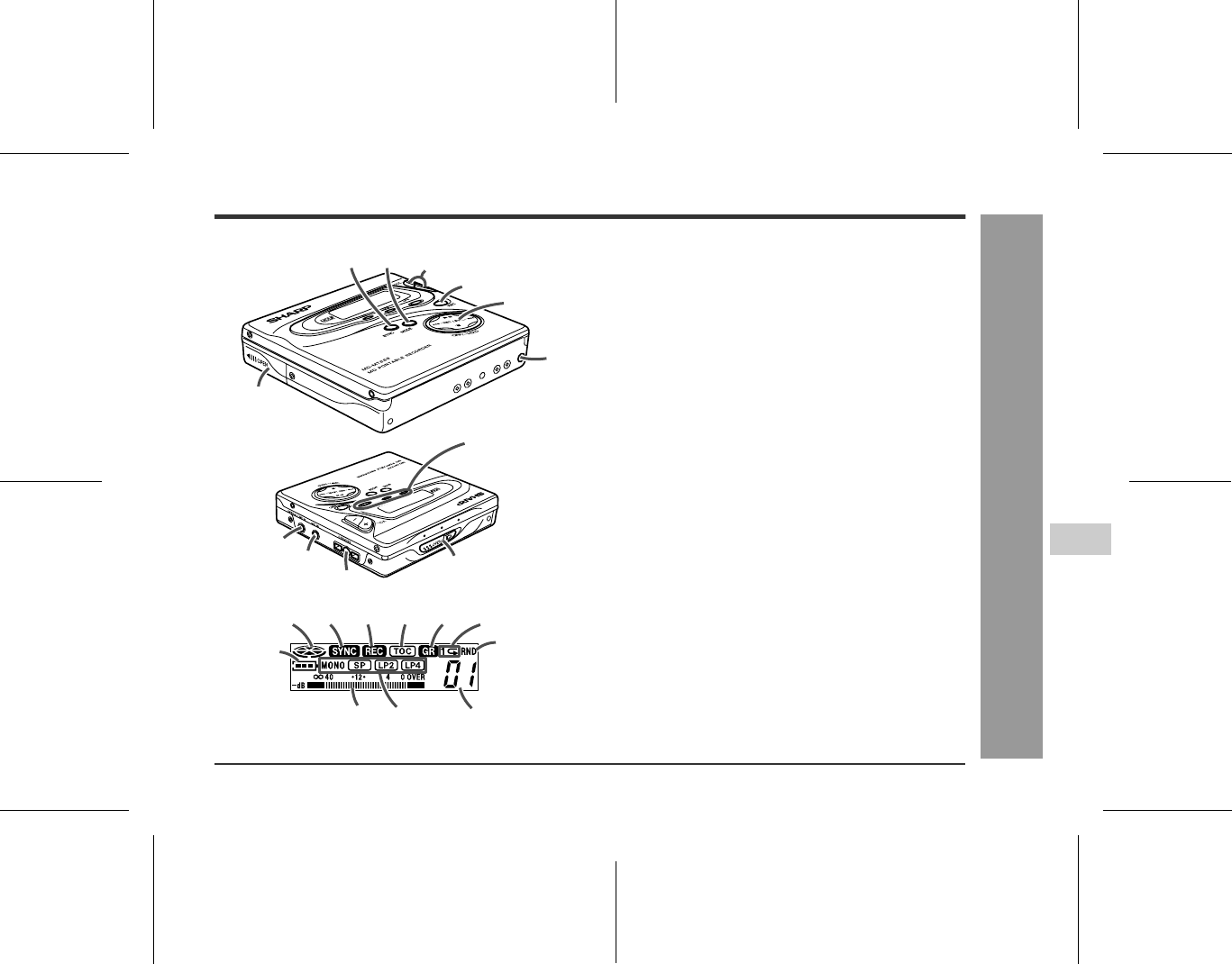

Main unit
Reference page
1.Synchronised Recording Button . . . . . . . . . . .(28)
2.Mode Button . . . . . . . . . . . . . . . . . . . . . .(19, 26, 29)
3.Volume Buttons . . . . . . . . . . . . . . . . . . . . . . . . .(24)
4.Record Button . . . . . . . . . . . . . . . . . . . . . . .(19, 31)
5.Play/Pause/Stop/Power Off/Hold/Fast Forward/
Fast Reverse Button . . . . .(19 - 21, 23 - 25, 40, 51)
6.Rechargeable Battery Cover. . . . . . . . . . . . . . .(10)
7.2 V DC Input Socket. . . . . . . . . . . . . . . . . . . . . .(12)
8.Optical/Line Input Socket . . . . . . . . . . . . . . (14, 15)
9.Microphone Input Socket . . . . . . . . . . . . . . . . .(34)
10.Remote Control/Earphones/
Line Output Socket . . . . . . . . . . . . . . . . . . .(18, 22)
11.Open Lever . . . . . . . . . . . . . . . . . . . . . . . . . . . .(13)
12.3-Colour Indicators . . . . . . . . . . . . . . . . . . . (23, 53)
13.Battery Indicator
14.Disc Mode Indicator
15.Synchro Recording Indicator
16.Record Indicator
17.TOC Indicator
18.Group Indicator
19.Repeat Indicator
20.Random Indicator
21.Level Meter
22.Recording Mode Indicators
23.Track Number Indicator
1
2
3
4
5
7
6
8
9
10
11
12
14
13
21
20
22 23
15 16 17 18
19
