Table 2.2: Physical specifications
Size 340× 60× 270mm
Weight 3.4kg
Operating temperature 0 to 45°C
Storage relative humidity 5 to 90%
2.3 Rear panel connections

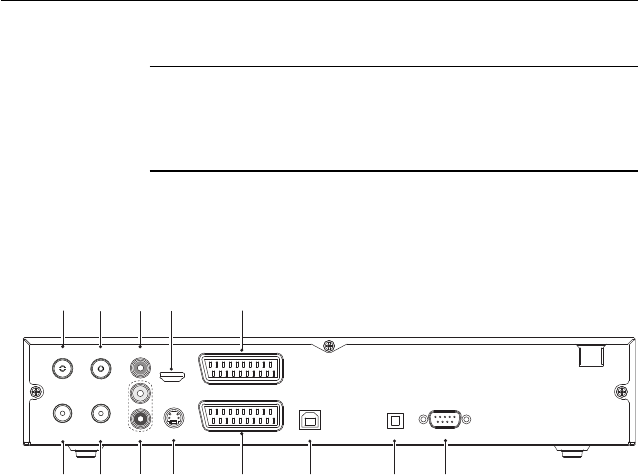

The TF500 PVRc has a wide range of connections on the back.
RS-232
S/PDIF
VCR
USB
TV
RF LOOP
1 OUT
CABLE 1 IN
CABLE 2 IN
RF LOOP
2 OUT
VIDEO
S-VIDEO
AUDIO
HDMI
R
L
1
2
3
4
5
6
7
8
9
10
11
12
13
Check what connections your television set has in comparison
with the digital receiver.
1
CABLE 1 IN
Cable broadcasting signal input socket for
the first tuner.
2
RF LOOP 1 OUT
Cable broadcasting signal output
socket through the first tuner.
3
CABLE 2 IN
Cable broadcasting signal input socket for
the second tuner.
4
RF LOOP 2 OUT
Cable broadcasting signal output
socket through the second tuner.
5
VIDEO
Composite video output socket for the television
set. (yellow)
6
AUDIO L/R
Stereo audio output socket for the television
set or the audio system. (white/red)
