4
Daisy-Chaining - If the DVD-RAM you are installing is one of two or
more SCSI devices you are connecting to your system, you will need to
use a custom built SCSI interface cable. Remember that the terminator
jumper on the DVD-RAM drive must have the jumper installed when the
drive is the last device in the chain.
Power Cable - Connect an in-
ternal computer power sup-
ply cable to the power socket
at the back of the DVD-RAM.
One side of the plug has
chamfered edges, so the
power connector fits only one
way. Push plug completely
into the socket making sure
the plug fits correctly.
DVD-RAM
DRIVE
Host Computer
I/F Card
Terminator
SCSI Cable
Interface Connector
DVD-RAM
DRIVE
#2
DVD-RAM
DRIVE
#N
(N < 7)
Install Terminator Jumper
only on the last drive of BUS
(see note 1)
Host Computer
I/F Card
Terminator
SCSI Cable

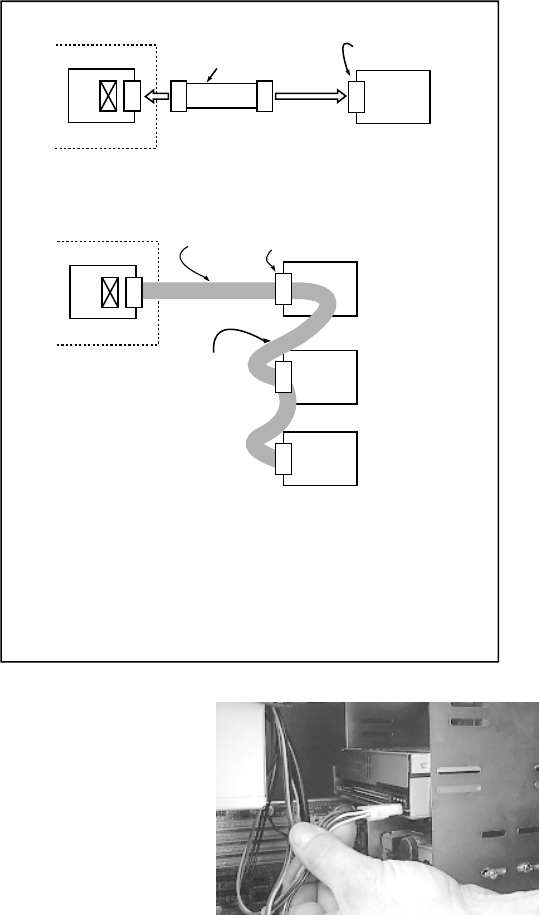

SD-W1101 CONNECTION (ONE DRIVE)
SD-W1101 DAISY-CHAIN CONNECTION
(MULTIPLE DRIVES)
If connecting more
than three SCSI
devices, you need to
use a custom built
SCSI Interface Cable.
SD-W1101
INTERNAL DRIVE(S)
DVD-RAM
DRIVE
#1
Notes:
1. Terminator jumper must be jumpered when DVD-RAM is the last
or only device on the SCSI BUS.
2. Terminator jumper should be removed when DVD is in a "daisy-chain"
and is NOT the last drive.
Interface
Connector
(see note 2)
(see note 2)
(see note 1)
