1-28 Chapter 1: Product introduction

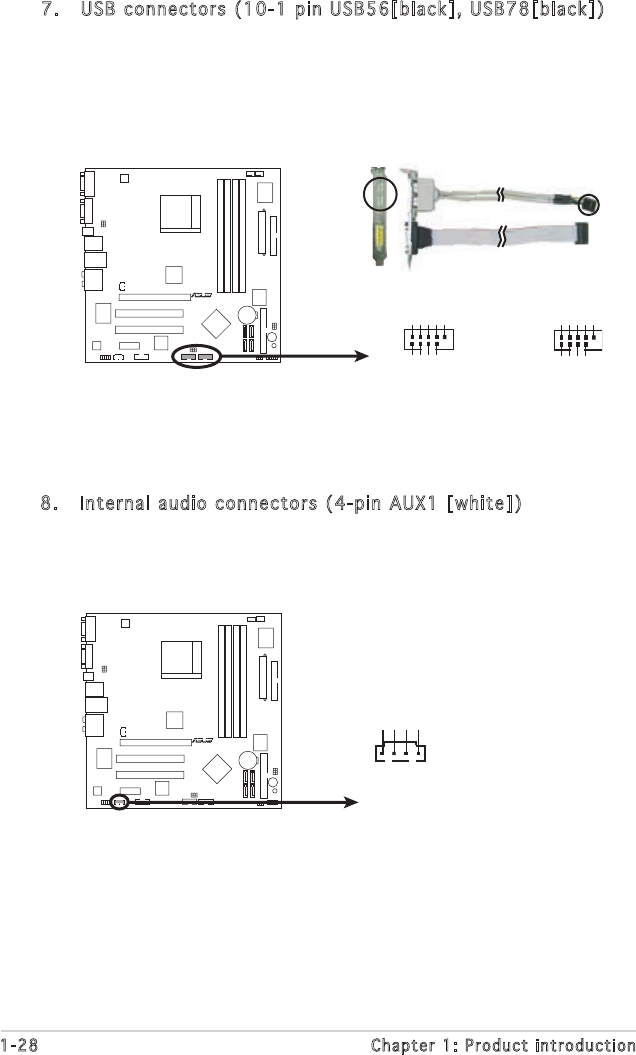

7. USB connectors (10-1 pin USB56[black], USB78[black])
These connectors are for USB 2.0 ports. Connect the optional
USB module cable to any of these connectors, then install the module
to a slot opening at the back of the system chassis. These USB
connectors comply with USB 2.0 speciļ¬cation that supports up to 480
Mbps connection speed.
M2R-FVM
M2R-FVM USB 2.0 Connectors
USB78
USB+5V
USB_P8-
USB_P8+
GND
NC
USB+5V
USB_P7-
U
SB_P7+
GND
1
USB56
USB+5V
USB_P6
USB_P6
GND
NC
USB+5V
USB_P5-
USB_P5+
GND
-
+
1
8. Internal audio connectors (4-pin AUX1 [white])
These connectors allow you to receive stereo audio input from sound
sources such as a CD-ROM, TV tuner, or MPEG card.
R
M2R-FVM
M2R-FVM
AUX Audio Connector
AUX
(White)
Right Audio Channel
Left Audio Channel
Ground
Ground
