Geberit Tessera
TM
Toilet System
Installation & Maintenance Instructions
ACCESS PANEL-FLUSH ACTUATOR INSTALLATION
8

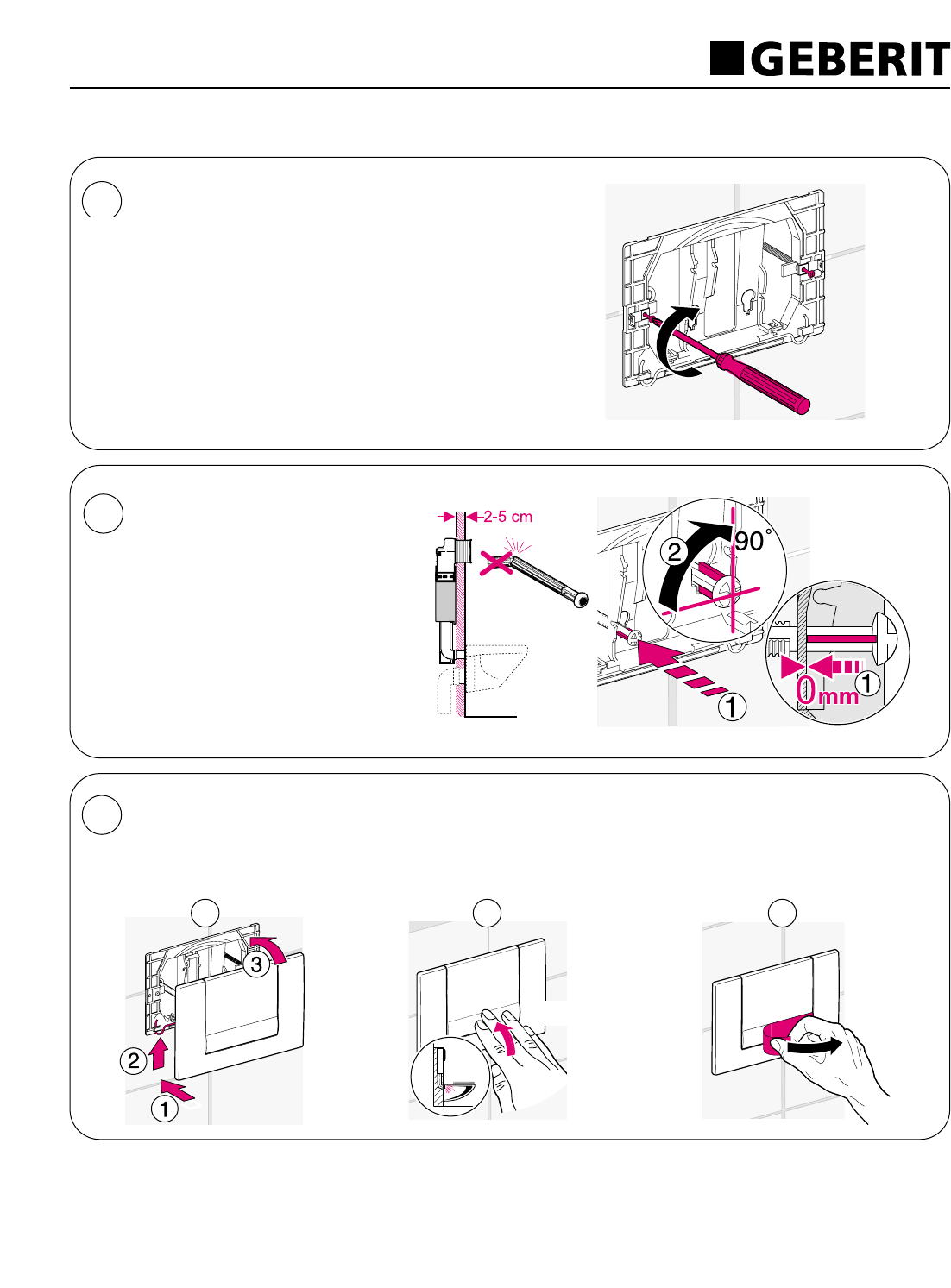

1. Insert actuator push rod
into rocker bushing so that
taps are in contact with the
actuator frame surface.
2. Install rod and tum clockwise
to lock it into the bushing.
9
7
1. Place actuator frame onto front of box with
spring at the bottom facing outward.
2. Secure frame onto lock pins with two (2)
self-tapping screws provided.
A
C
B
push
1. To complete the installation attach the actuator plate on to spring at
lower side push up and snap the upper edge onto frame.
2. Secure actuator plate to frame, test for function.
3. Remove protective foil.
