GB 10

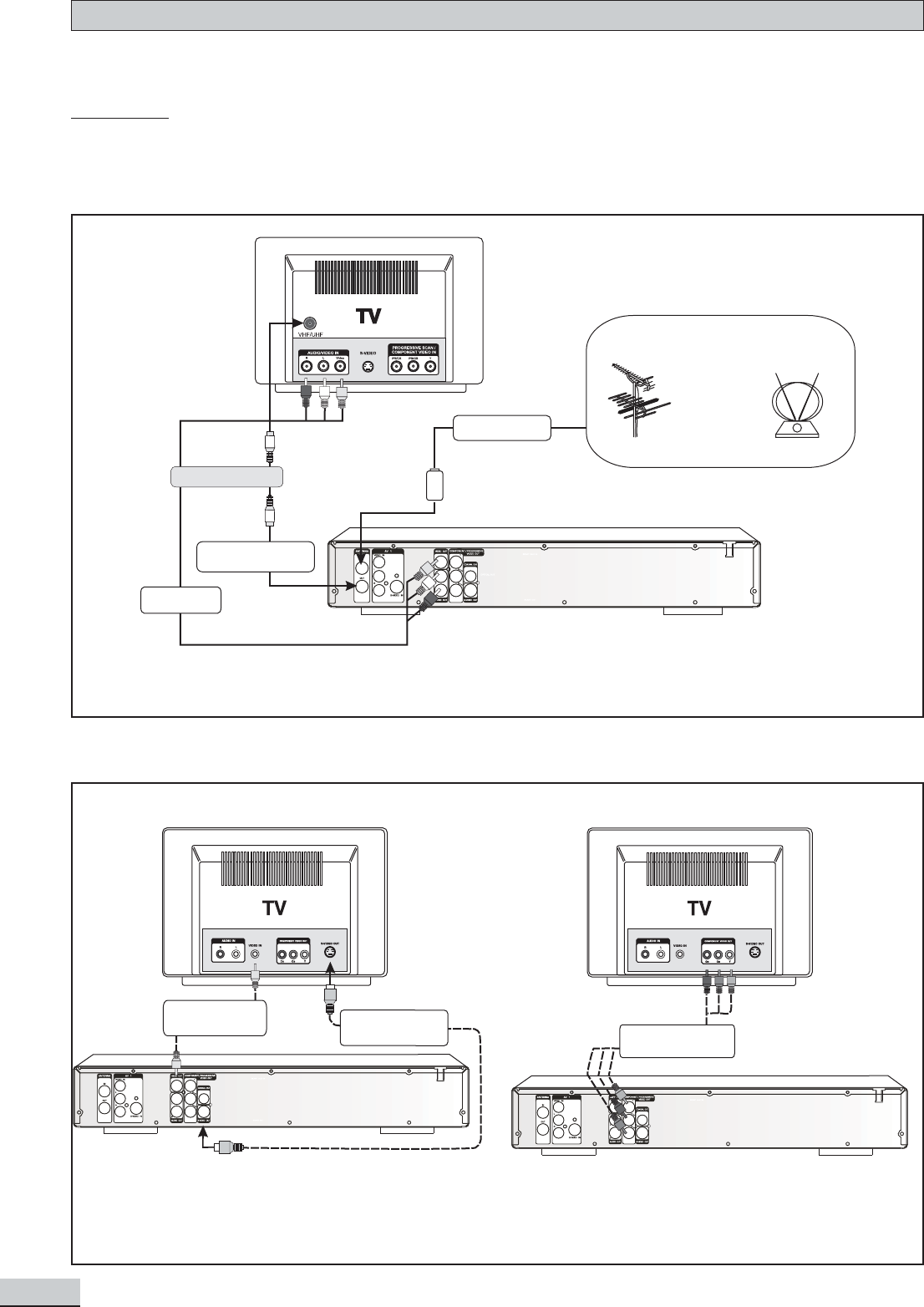

SETUP AND INSTALLATION
The following setup and installation diagrams show the different video and audio connections to TV, Receiver and
Other video equipment.
Important
Make sure the AC Voltage matches your local voltage.
Connect the AC cord only after the antennas, and all optional equipment are connected.
(1) Antenna and television connections
(2) Video connections
REMARK: PLEASE ENSURE YOU SELECT THE CORRECT VIDEO OUTPUT. REFER TO
CH2.4 OR P16.
REMARK: FOR RF LOOP THROUGH FUNCTION, CONNECT UP BOTH ANTENNA CABLE
& TV ANTENNA CABLE.
Indoor antenna
Indoor antenna
Outdoor antenna
Outdoor antenna
Or
TVANTENNACABLE
(Included)
TVANTENNACABLE
(Included)
ANTENNACABLE
(Not Included)
ANTENNACABLE
(Not
Included)
RCA AV CABLE
(Included)
RCA AV CABLE
(Included)
USE EITHER ONE
USE EITHER ONE
RCAVIDEO CABLE
(Included)
FOR GOOD PICTURE
RCAVIDEO CABLE
(Included)
FOR
GOOD PICTURE
S-VIDEO CABLE
(Not Included)
FOR BETTER PICTURE
S-VIDEO CABLE
(Not
Included)
FOR
BETTER PICTURE
COMPONENT VIDEO CABLE
(Not Included)
FOR BEST PICTURE
COMPONENT VIDEO
CABLE
(Not
Included)
FOR
BEST PICTURE
