VX401E/VZ401E
53
Installation manual

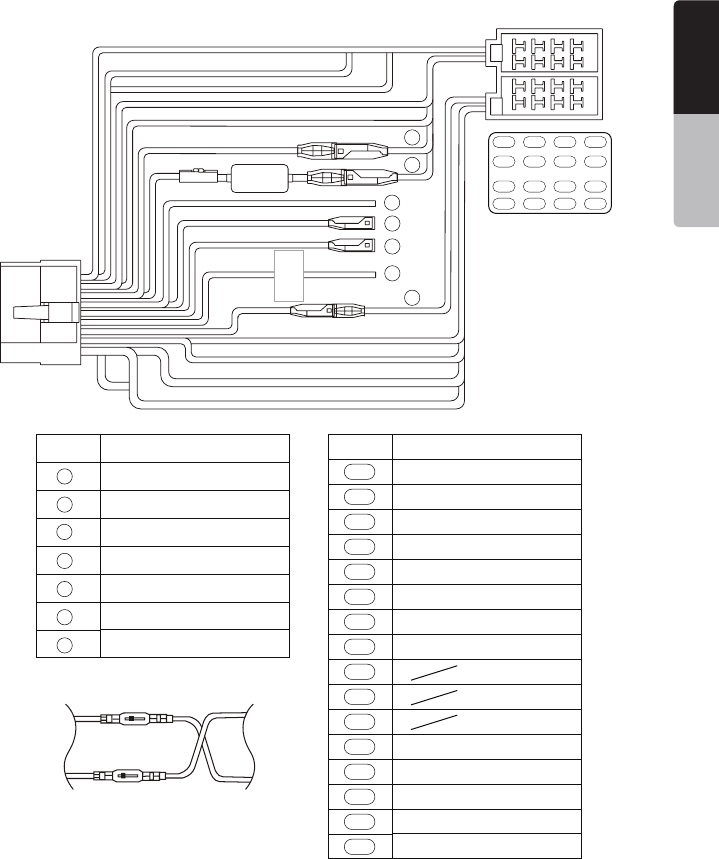

See next page for how to connect the parking brake cord.
Note:
*1: Connecting the PHONE INTERRUPT terminal
The phone interrupt will mute the audio if the lead receives a negative or ground signal.
15A
A-1
A-2
A-3
A-4
A-5
A-6
A-7
A-8
B-1
B-2
B-3
B-4
B-5
B-6
B-7
B-8
Description
No.
A-1
A-2
A-3
A-4
A-5
A-6
A-7
A-8
B-1
B-2
B-3
B-4
B-5
B-6
B-7
B-8
Rear right-
Rear right+
Rear left-
Rear left+
Front left-
Front left+
Front right+
Front right-
GND
Illumination
Auto antenna
ACC
BACK UP
BACK UP(
Yellow)
Auto antenna(Blue)
Phone interrupt(Brown)
Parking(
Grass-green)
Remote(Blue/White)
Reverse(Purple/White)
ACC(Red)
No. Description
3
4
5
6
7
2
1
3
4
5
6
7
2
1
!!!!Warning!!!!
Parking brake safety
device must be connected
for complete operation
Yellow
Red
Yellow
Red
For VW and Audi: Change wiring as above
