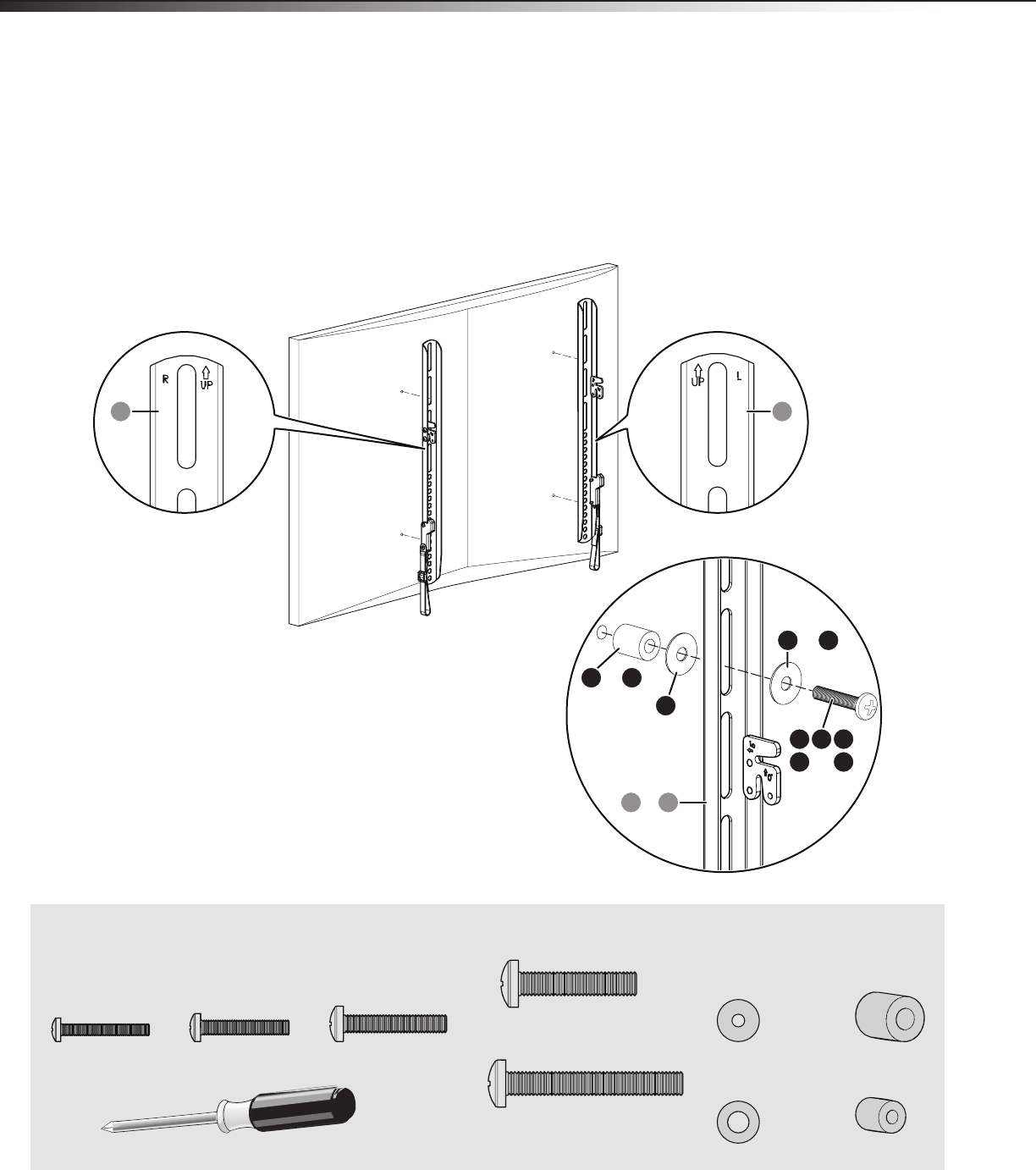

Step 4: Install the TV brackets (continued)
Option 2: Installing for a TV with an irregular or obstructed back
1 Place M4/M5 spacers (19) or M6/M8 spacers (20) over the mounting holes in the back of your TV.
2 If you are using M4 or M5 screws, place M4/M5 washers (17) over the spacers.
3 Align the holes you noted on the left TV bracket (02) and right TV bracket (03) with the spacers. The brackets are
marked “R” for the right bracket and “L” for the left bracket.
4 Place M4/M5 washers (17) or M6/M8 washers (18) over the holes in the TV brackets, then insert M4 screws (08),
M5 screws (10), M6 screws (13), or M8 screws (15 or 16).
5 Tighten the screws until they are snug against the TV bracket. Do not over tighten.
You’ll need:
19
17
20
8 1310
0302
17 18
03 02
1615
OR
OR
OR
&
08 (4) 10 (4)
Phillips screwdriver
Screws
13 (4)
20 (4)
OR
OR
OR
Washers
OR
17 (8)
18 (4)
Spacers
19 (4)
OR
15 (4)
OR
16 (4)
