DX-DRTVL103
Need help? Call 800-305-2204

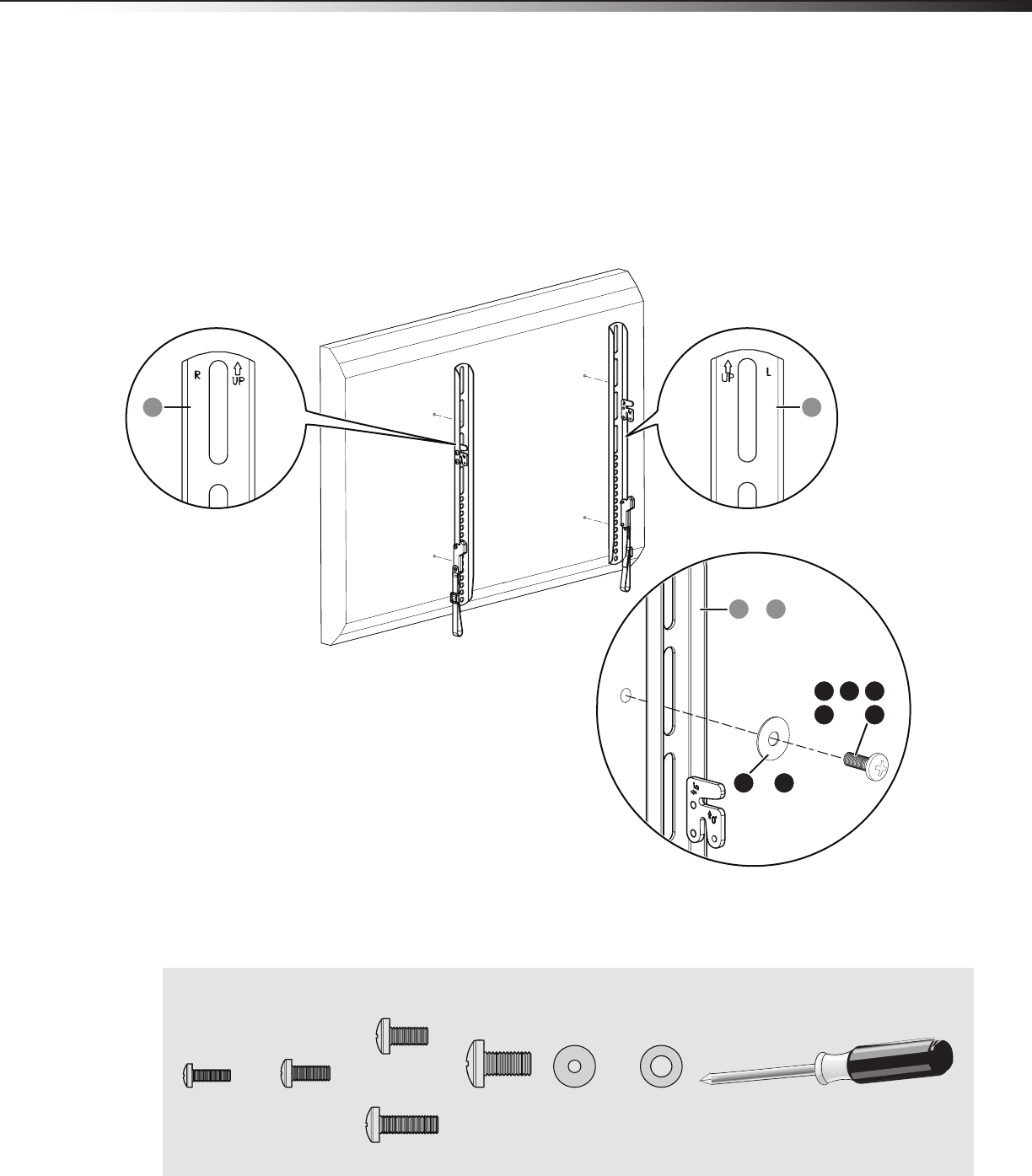

Step 4: Install the TV brackets
Option 1: Installing for a TV with a flat back
1 Align the holes you noted on the left TV bracket (02) and right TV bracket (03) with the screw holes on the back
of your TV. The brackets are marked “R” for the right bracket and “L” for the left bracket.
2 Place the M4/M5 washers (17) or M6/M8 washers (18) over the holes in the TV brackets that align with the screw
holes on the back of your TV, then insert the M4 screws (07), M5 screws (09), M6 screws (11 or 12) or
M8 screws (14).
3 Tighten the screws until they are snug against the TV bracket. Do not over tighten.
You’ll need:
17 18
12 14
7 119
0302
03 02
OR
OR
&
07 (4) 09 (4)
Phillips screwdriver
Screws
11 (4)
12 (4)
OR OR
OR
Washers
OR
17 (4) 18 (4)
OR
14 (4)
