STEP 8 - Removing the TV from the wall plate and
disassembling the wall mount

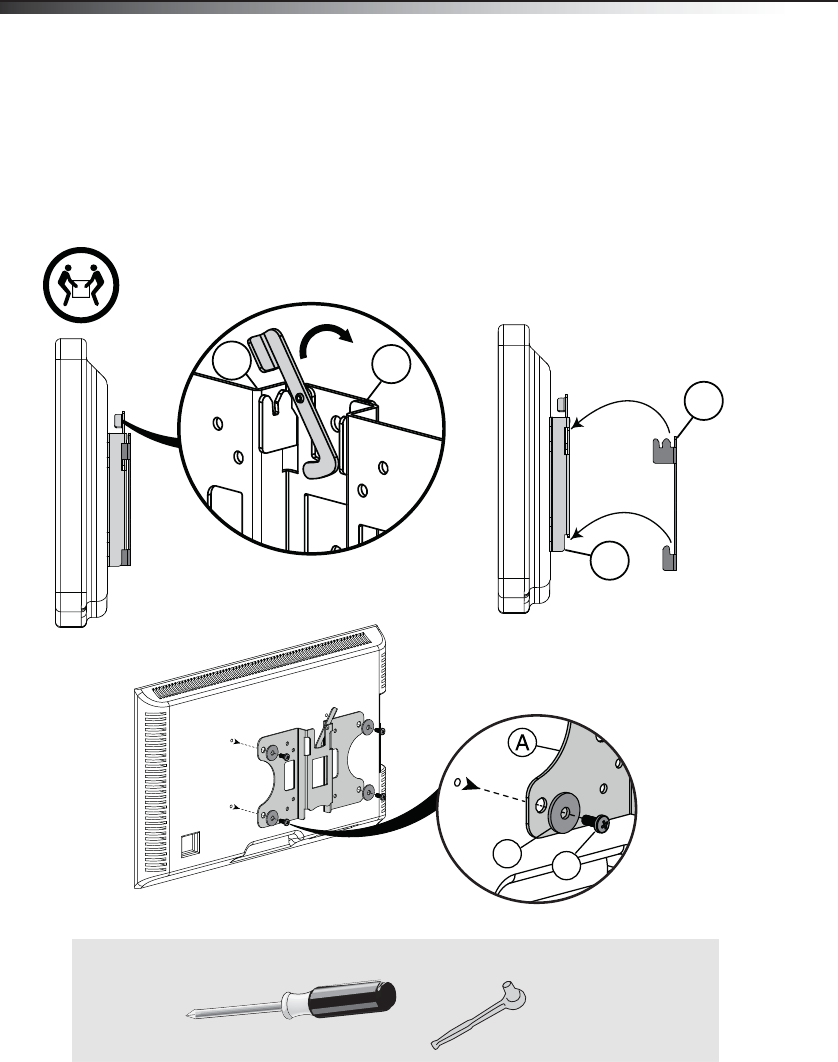

1 Unlock the TV and bracket assembly from the wall plate by rotating the lock out of the flange slot.
2 Lift the TV bracket (A) from the slotted flanges of the wall plate (B) and place it on a cushioned, clean
surface to protect the screen from damage and scratches.
3 Using a Phillips screwdriver, remove the screws from the back of your TV, then remove the TV bracket.
4 Using a 7/16” or 12 mm socket wrench, remove the lag bolts from the wall, then remove the wall plate.
You’ll need
B
A
B
A
G
E
HEAVY! You will need assistance
with this step.
Phillips screwdriver
7/16" (12 mm)
socket wrench
