STEP 4 - Option 2: Attaching the mounting hardware to TVs
with irregular or obstructed backs

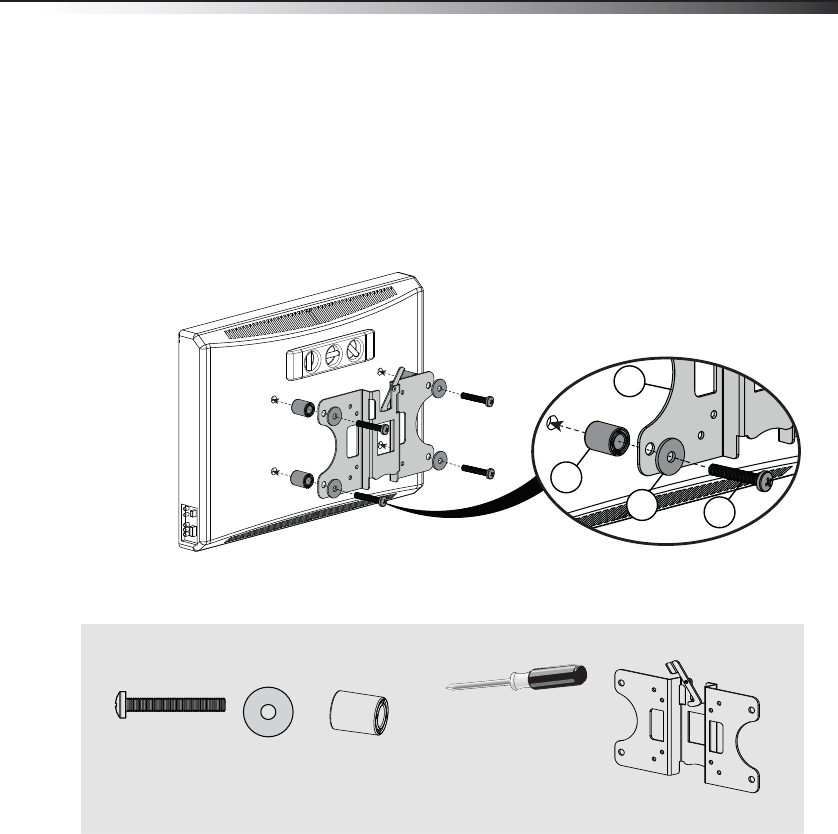

1 Align the TV bracket (A) with the screw holes on the back of the TV.
2 Place spacers (H) behind the TV bracket and the washers (G) over the holes in the TV bracket, then insert
the screws (F) through the washers, TV bracket, and spacers.
3 Tighten the screws until they are snug against the TV bracket. Do not over tighten.
You’ll need
A
H
F
G
G (4)
F (4)
Phillips screwdriver
Screws
Washers
Spacers
H (4)
TV bracket (A)
