6
STEP 2 - Determine whether your TV has a flat, irregular, or
obstructed back
1 Temporarily lay the TV bracket (A) and adapters (C), if necessary, on the back of your TV.
2 Align the screw holes in the TV bracket with the mounting screw holes on your TV.

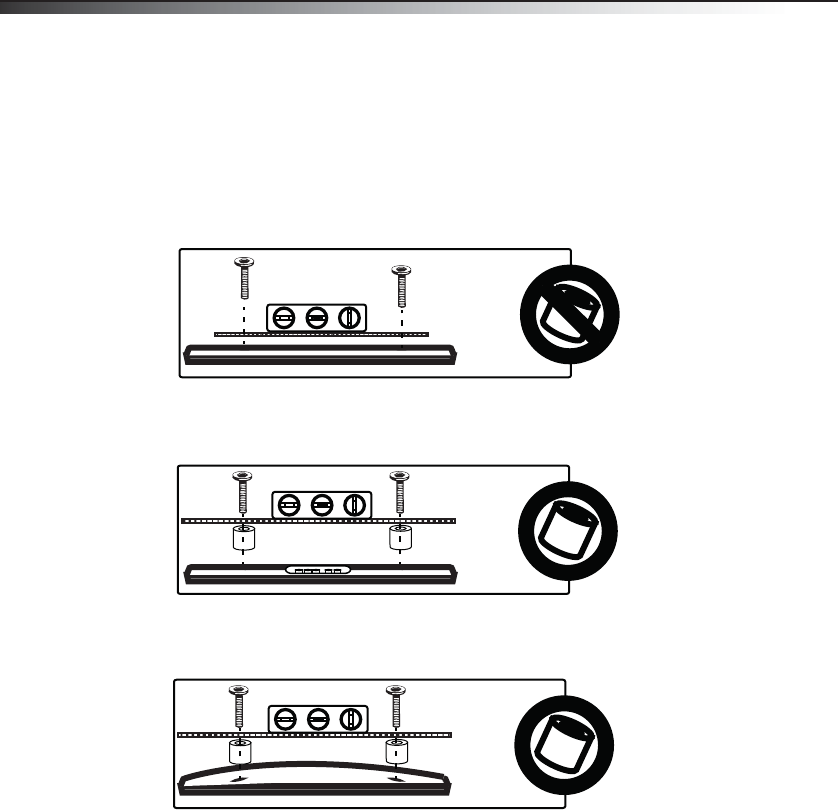

3 Identify which type of back your TV may have:
• Flat back: The bracket and adapters (if necessary) lay flush against the back of your TV and does not
block any jacks. You do not need spacers when assembling the wall mount.
• Obstructed back: The bracket and adapters (if necessary) block one or more of the jacks on the back of
your TV. You will need spacers when assembling the wall mount.
• Irregularly-shaped back: There is a gap between the bracket and adapters (if necessary) and some
part of the back of your TV. You will need spacers when assembling the wall mount.
4 Remove the TV bracket (A) and adapters (C).
DX-DRTVM112_13-0668_MAN_V1_ENG.fm Page 6 Friday, July 19, 2013 10:37 AM
