Installation instructions
5
DX-TVM113

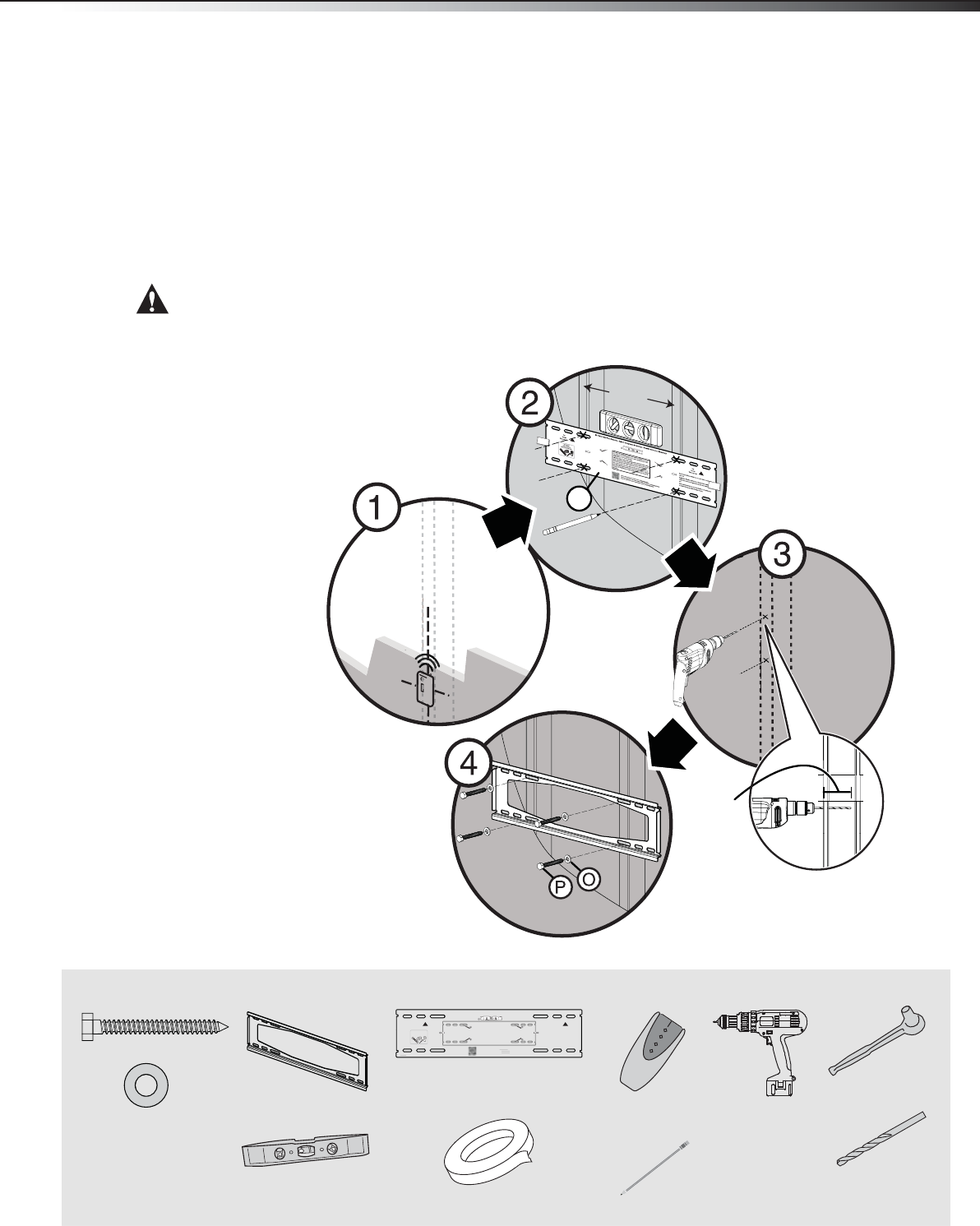

STEP 2 - Option 1: Installing on a wood stud* wall
Note: Any drywall covering the wall must not exceed 5/8" (16 mm).
1 Locate the stud. Verify the center of the stud with an edge-to-edge stud finder.
2 Align the wall plate template (R) at the height you determined in the previous step, make sure that it is level,
then tape it into place. Use a pencil to mark the lag bolt hole locations (4) on the stud centers. Remove the
wall plate template.
3 Drill pilot holes to a depth of 2.5 in. (63.5 mm) using a 7/32 in. (5.5 mm) diameter drill bit.
4 Align the wall plate (A) with the pilot holes, insert the lag bolts (P) through the lag bolt washers (O), then
through the holes in the wall plate. Tighten the lag bolts only until they are firm against the wall plate.
CAUTION:
• Avoid potential injuries or property damage!
• DO NOT over-tighten the lag bolts (P).
You’ll need
R
16-24 in.
2.5 in.
(63.5 mm)
* Minimum wood stud size: common 2 x 4 in. (51 x 102 mm)
nominal 11/2 x 31/2 in. (38 x 89 mm).
* Minimum horizontal spacing between fasteners cannot be
less than 16” (406 mm).
DX-TVM113 Wall Plate Template • Gabarit • Plantilla
Note: For wood frame installations, use a stud nder to locate wood
studs rst.
Remarque : Pour une construction à ossature de bois, localiser
d'abord les montants en bois, à l'aide d'un détecteur de montants.
Nota: para la instalación en construcciones de armazón de madera,
primero debe localizar las vigas de madera con un localizador de vigas.
http://san.us/286
Need more information about your mount? Scan this QR code or visit www.dynexproducts.com.
<FR>Need more information about your mount? Scan this QR code or visit www.dynexproducts.com.
<SP>Need more information about your mount? Scan this QR code or visit www.dynexproducts.com.
Tools Needed
Outils nécessaires
Herramientas requeridas
Top
Haut
Parte superior
Top
Haut
Parte superior
V1 13-0140
Edge-to edge
stud finder
P (4)
Pencil
Drill
7/32" wood
drill bit
1/2" socket wrench
Level
Wall plate (A)
O (4)
Wall plate template (R)
Tape
