1080p Upconvert DVD Player
13

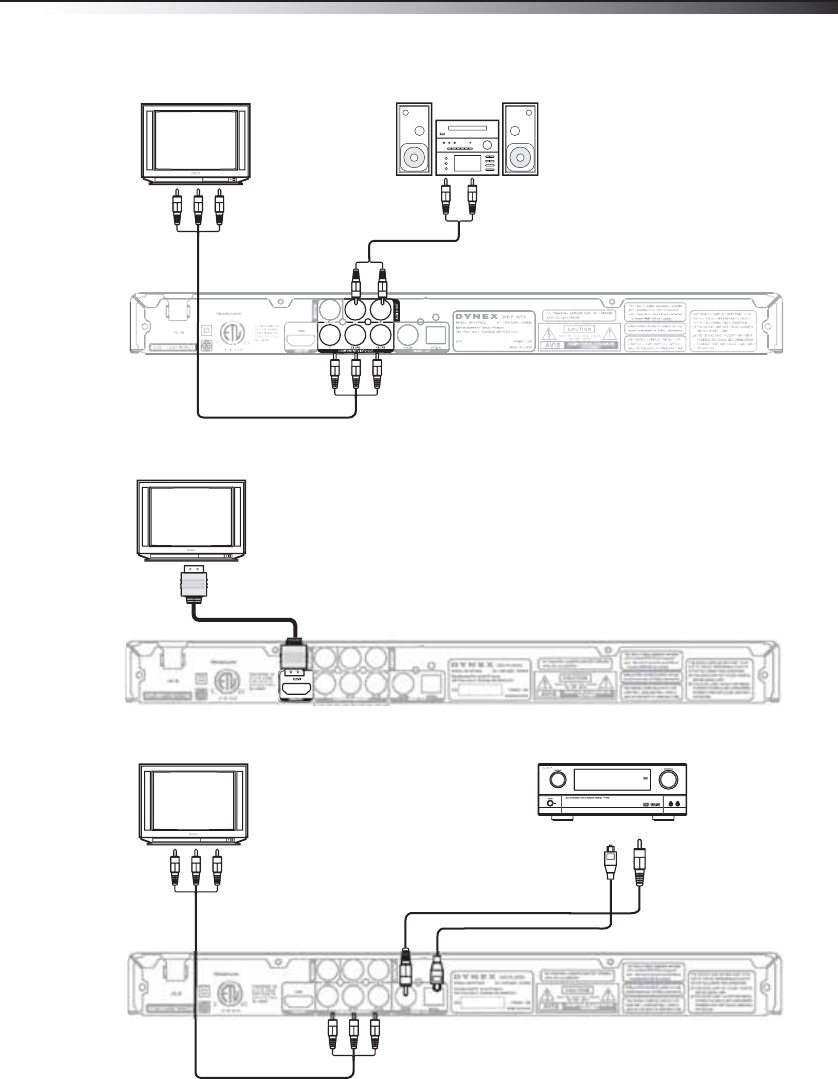

Component connection
HDMI connection
Component connection with digital audio
TV
DVD player
Audio cable
Component cable connectors are color-coded.
Connect yellow (Y) to yellow, blue (Pb or Cb) to
blue, and green (Pr or Cr) to green.
Audio cable connectors are
color-coded. Connect red
(audio right) to red and white
(audio left) to white.
Component
cable
Stereo system
TV
DVD player
HDMI cable
TV
DVD player
Digital optical or
digital coaxial cable
Component cable connectors are color-coded.
Connect yellow (Y) to yellow, blue (Pb or Cb) to
blue, and green (Pr or Cr) to green.
Component
cable
Amplifier
