Using LANVIEW
4-2 Troubleshooting

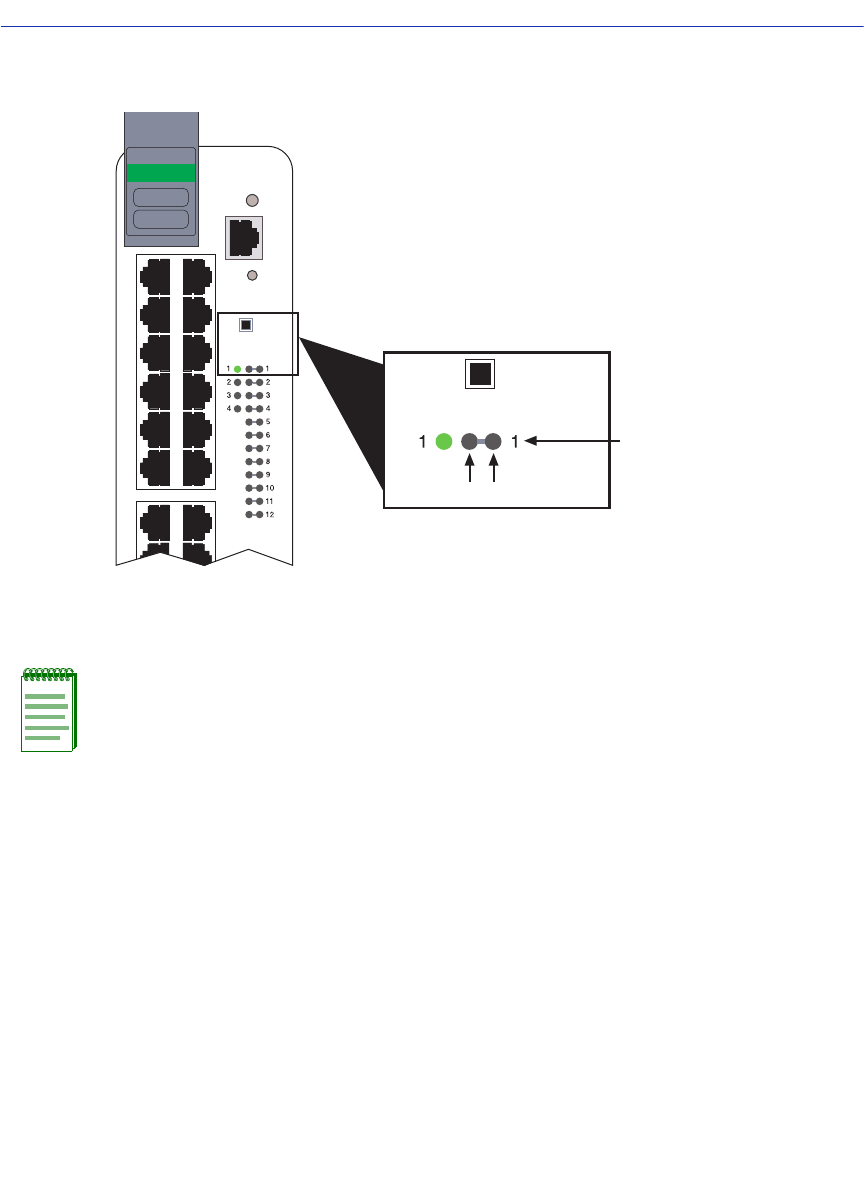

Figure 4-1 LANVIEW LEDs (both modules)
Table 4-1 describes the LED indications and provides recommended actions as appropriate.
NOTE: The terms flashing, blinking, and solid used in Ta ble 4-1 indicate the following:
Flashing indicates an LED is flashing randomly.
Blinking indicates an LED is flashing at a steady rate (approximately 50% on, 50% off).
Solid indicates a steady LED light. No pulsing.
FAST ENET
5H102-48
GROUP
GROUP
SELECT
RESET
COM
CPU
11X
1X
G
R
O
U
P
1
13X
GROUP
35861_07
GROUP
GROUP
SELECT
Port 1,
Group 1 LEDs
RX TX
