REFERENCE
49

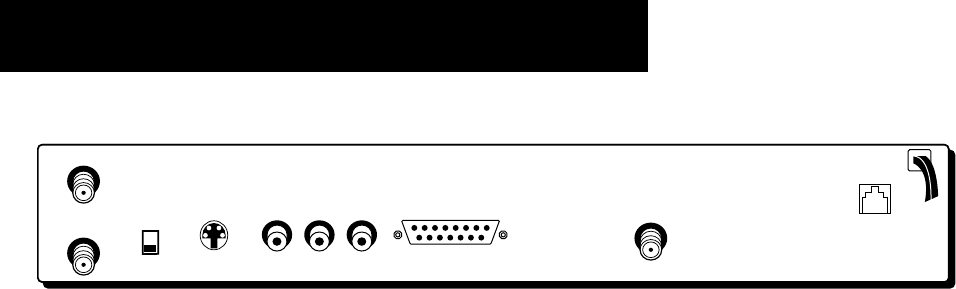

Back Panel
IN FROM ANT Use to connect an off-air antenna or cable TV signal to
the DSS
®
system.
OUT TO TV Use to connect the DSS
®
receiver to your TV. However, if
your TV has audio/video jacks, you should use those jacks to get better
picture and sound quality.
CH3/CH4 SWITCH If a coaxial cable is used to connect the DSS
®
receiver to your TV, you must set the CH3/CH4 SWITCH. For example,
to see the DSS
®
signal on TV channel 3, set the switch to 3.
S-VIDEO Provides the best picture quality. If your TV has S-VIDEO
capability, use this jack along with the audio/video jacks to connect the
DSS
®
receiver to your TV.
VIDEO Provides better picture quality than the OUT TO TV jack. If
your TV has audio/video capability, use this jack to connect the DSS
®
receiver to your TV. You must also connect the AUDIO jacks.
AUDIO (R and L) Provide better sound quality than the OUT TO TV
jack. If your TV has audio/video capability, use these jacks to connect
the DSS
®
receiver to your TV. You must also connect the VIDEO jack.
WIDE BAND DATA PORT This port allows you to connect the DSS
®
system to future services and accessories as they become available. A
shielded cable and additional hardware may be required.
SATELLITE IN Use to connect the DSS
®
receiver to the satellite dish.
PHONE JACK Use to connect a phone line to the DSS
®
receiver. The
DSS
®
system requires a phone line connection to periodically call out
to program providers.
OUT
TO
TV
IN
FROM
ANT
S-VIDEO VIDEO R LAUDIO WIDE BAND DATA
SATELLITE IN
PHONE JACK
CH 4
CH 3
