Connecting an Antenna
or Cable TV
aa
Antenna:
Disconnect the antenna from the rear of the TV and
identify the antenna cable. If it is a round 75 ohm
coaxial cable connect it directly to the jack marked
ANT. IN on your Recorder. If your antenna cable is flat
connect it to a 300-ohm to 75-ohm antenna
adaptor (not supplied) and slip the adaptor over the
ANT. IN jack. Don’t attempt to screw it into to the
Recorder.
bb
Cable TV:
If your cable connection has no converter or
descrambler, unscrew the cable from your TV and
attach it to the ANT. IN jack on the Recorder.
If a converter is required connect a coaxial cable from
the wall jack to the IN connector on the converter, and
a coaxial cable from the OUT connector on the
converter to the ANT. IN on your Recorder. This cable
hookup permits both TV and Recorder operation.
To view or record a CATV channel
1. Tune the TV to the Recorder output channel (CH 3
or 4).
2. Set the Recorder channel selector to the cable
output channel. (Example: CH3)
3. Select a channel using the cable converter.
Notes:
With this connection, you cannot record one channel
while viewing another.
If you are using a cable box to tune channels, it is not
necessary to do Auto Channel Set.

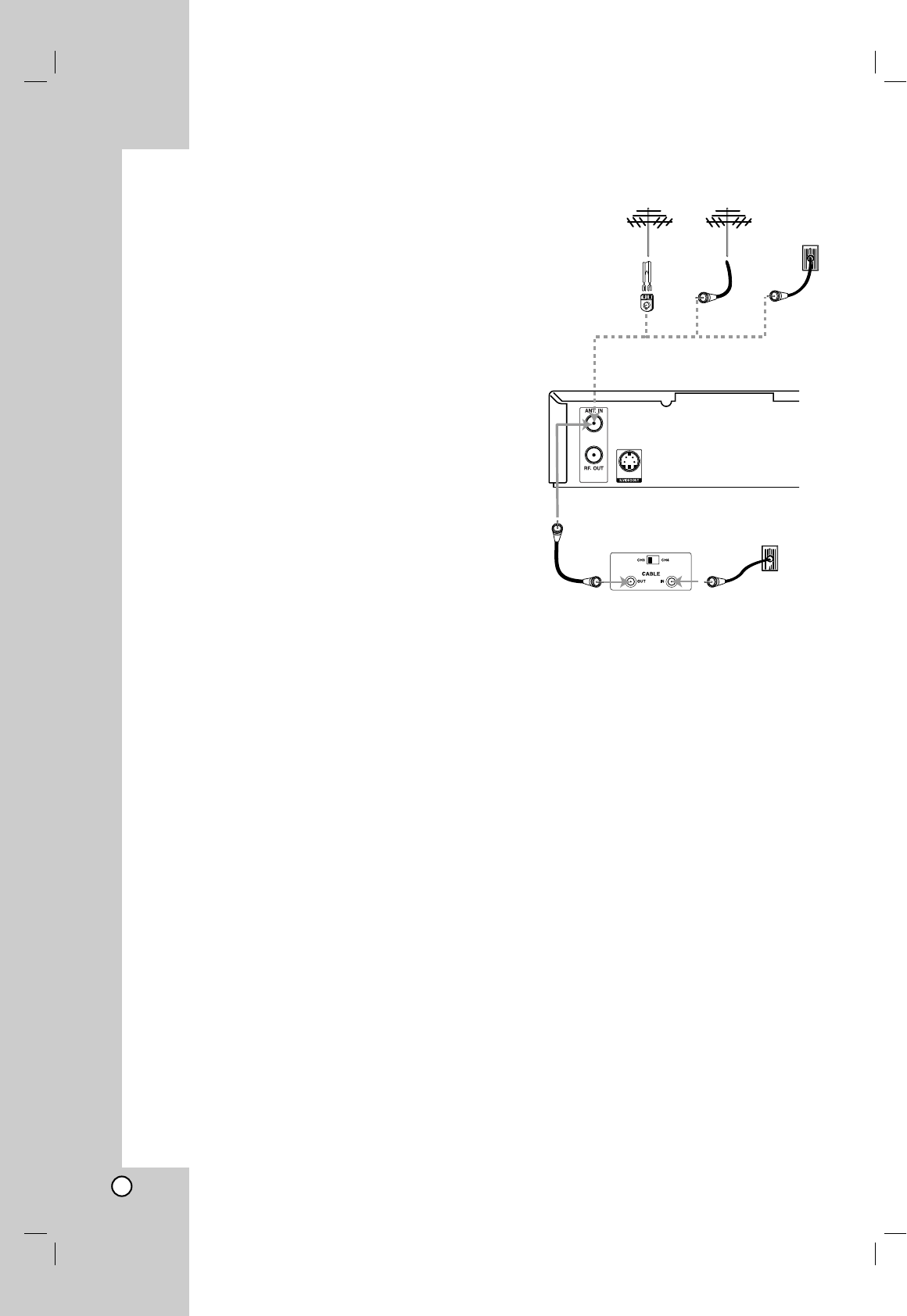

Antenna
Rear of the recorder
Back Panel of
Typical Cable Box
Antenna
Cable TV
Wall Jack
Cable TV
Wall Jack
OR
Flat Wire
(300 ohm)
300/75 ohm
Adapter
(Not supplied)
OR
