16
Component Video / Progressive Scan
connection
If your television is a high-definition or “digital ready”
television, you may take advantage of the Recorder’s
progressive scan output for the highest video resolu-
tion possible.
Connect the COMPONENT VIDEO OUT/P/SCAN
jacks on the Recorder to the corresponding in jacks
on the TV using an optional Y Pb Pr cable (C).
Notes:
• Set Progressive Scan option to [ON] in the setup menu,
see page 20.
• Progressive Scan does not work with the RF,
Audio/Video or S-Video connections.
• If your TV does not accept the Progressive Scan format,
the picture may appear scrambled or no picture at all.
• When you use Component Video signal, set the
Progressive Scan to [OFF] on the setup menu.
Audio connection
Connect the Left and Right AUDIO OUT jacks on the
Recorder to the audio left/right in jacks on the TV
using the supplied audio cables (A).
Connection to an
Connection to an
Amplifier
Amplifier
Connecting to an amplifier equipped with two
channel analog stereo or Dolby Pro Logic II/Pro
Logic
Connect the Left and Right AUDIO OUT jacks on the
Recorder to the audio left and right in jacks on your
amplifier, receiver, or stereo system using the audio
cables (A) supplied.
Connecting to an amplifier equipped with two chan-
nel digital stereo (PCM) or to an Audio/Video receiv-
er equipped with a multi-channel decoder (Dolby
Digital™, MPEG 2, or DTS)
1. Connect one of the Recorder’s DIGITAL AUDIO
OUT jacks ( OPTICAL O, COAXIAL X) to the cor-
responding in jack on your amplifier. Use an
optional digital (OPTICAL O, COAXIAL X) audio
cable.
2. You will need to activate the Recorder ’s digital
output. (See [Audio Settings] on page 22).
Digital Multi-channel sound
A digital multi-channel connection provides the best
sound quality. For this you need a multi-channel
Audio/Video receiver that supports one or more of the
audio formats supported by your Recorder (MPEG 2,
Dolby Digital and DTS). Check the receiver manual
and the logos on the front of the receiver.
Caution:
Due to the DTS Licensing agreement, the digital
output will be in DTS digital out when DTS audio
stream is selected.
Notes:
• If the audio format of the digital output does not match
the capabilities of your receiver, the receiver will pro-
duce a strong, distorted sound or no sound at all.
• Six Channel Digital Surround Sound via digital connec-
tion can only be obtained if your receiver is equipped
with a Digital Multi-channel decoder.
•To see the audio format of the current DVD in the on-
screen display, press AUDIO.
• This Recorder does not perform internal (2 channel)
decoding of a DTS sound track. To enjoy DTS multi
channel surround, you must connect this Recorder to a
DTS compatible receiver via one of this Recorder’s digi-
tal audio outputs.
Manufactured under license from Dolby
Laboratories. “Dolby”, “Pro Logic”, and the
double-D symbol are trademarks of Dolby
Laboratories.
DTS and DTS Digital Out are trademarks of
Digital Theater Systems, Inc.

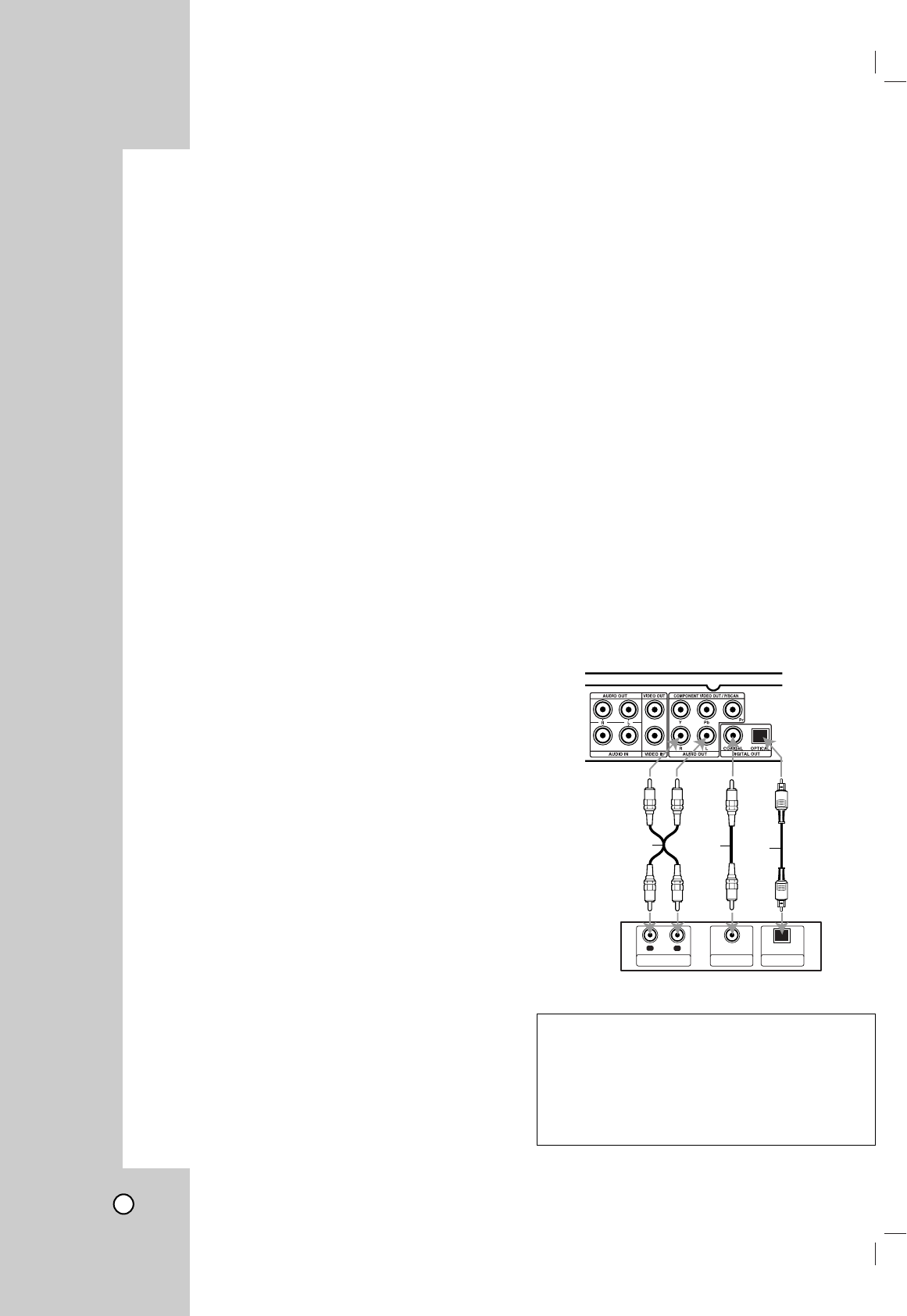

Rear of the recorder
R
L
AUDIO INPUT DIGITAL INPUT
COAXIAL
DIGITAL INPUT
OPTICAL
Amplifier (Receiver)
A
X
O
