17

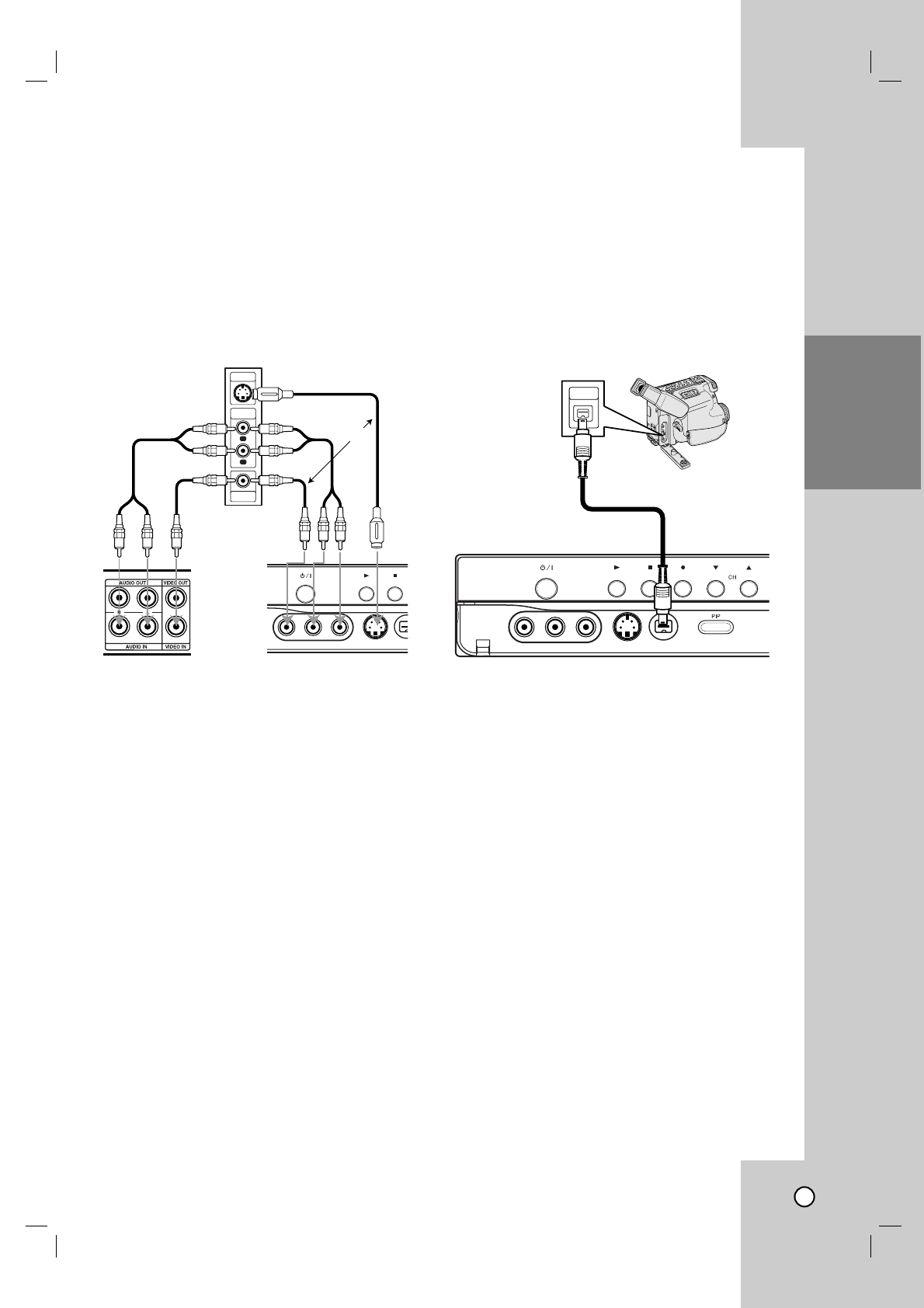

Connecting to the INPUT 1 or INPUT 2
Jacks
Connect the input jacks (INPUT1, INPUT2) on the
recorder to the audio/video out jacks on your acces-
sory component, using audio/video cables.
Note:
If you use the S-VIDEO IN jack on the front panel,
the VIDEO IN jack on the front panel is not available.
Connecting a Digital Camcorder
Use a DV cable (not supplied) to connect the DV
in/out jack of your DV Digital Camcorder to the front
panel DV IN jack of this Recorder.
Note:
This jack is for connection to DV Digital Camcorder
only. It is not compatible with digital satellite tuners or
D-VHS video decks.
Hookup and
Settings
L
R
VIDEO
OUTPUT
AUDIO
OUTPUT
S-VIDEO
OUTPUT
Jack panel of Accessory Component
(VCR, Camcorder, etc.)
Rear of
the recorder
Front of
the recorder
OR
OR
DV Digital Camcorder
Front of the recorder
DV
IN/OUT
