Minimum 40 square inches of
ventilation opening required, both at
the top and bottom of the enclosure. Ventilation openings are required in
enclosures up to 84” high. They are recommended for all enclosures.
72” MINIMUM
ENCLOSURE
HEIGHT
VENTILATION
REQUIRED IN
ENCLOSURES
BETWEEN 72”
AND 84”
1” OPEN
1” OPEN
72” MINIMUM
ENCLOSURE
HEIGHT
VENTILATION
REQUIRED IN
ENCLOSURES
BETWEEN 72”
AND 84”

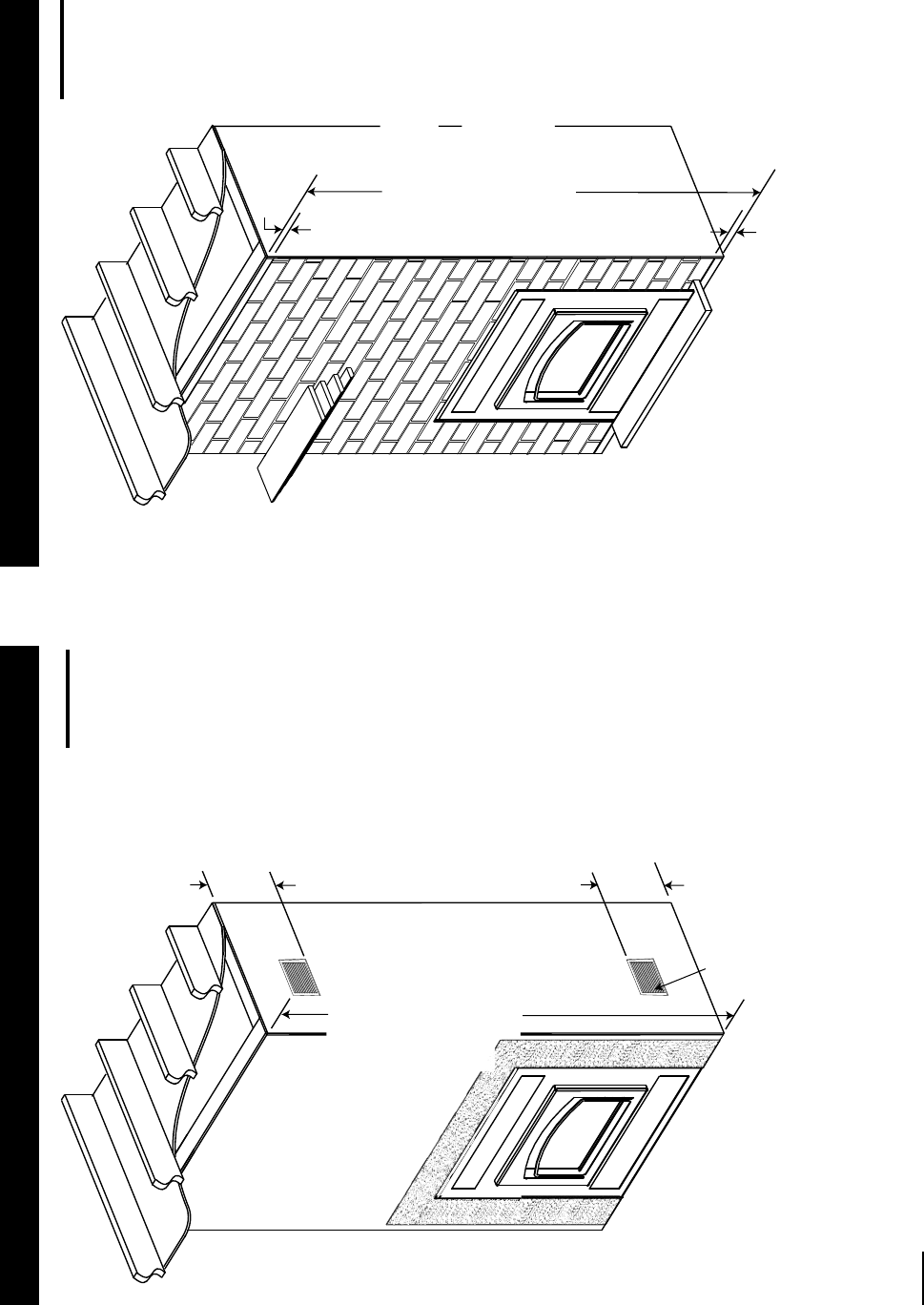

ENCLOSURE FINISHING ENCLOSURE ALTERNATE FINISHING
NOTE: As an alternate to grates a 1" x 40 inches wide gap can be left in the bottom and top of any fi nishing material to circulate the air from the fl oor, around the fi replace
through the enclosure and out the top. If utilizing this method, ensure the fi replace is properly supported and support method does not restrict the fl ow of air.
FIGURE 8a
FIGURE 8b
