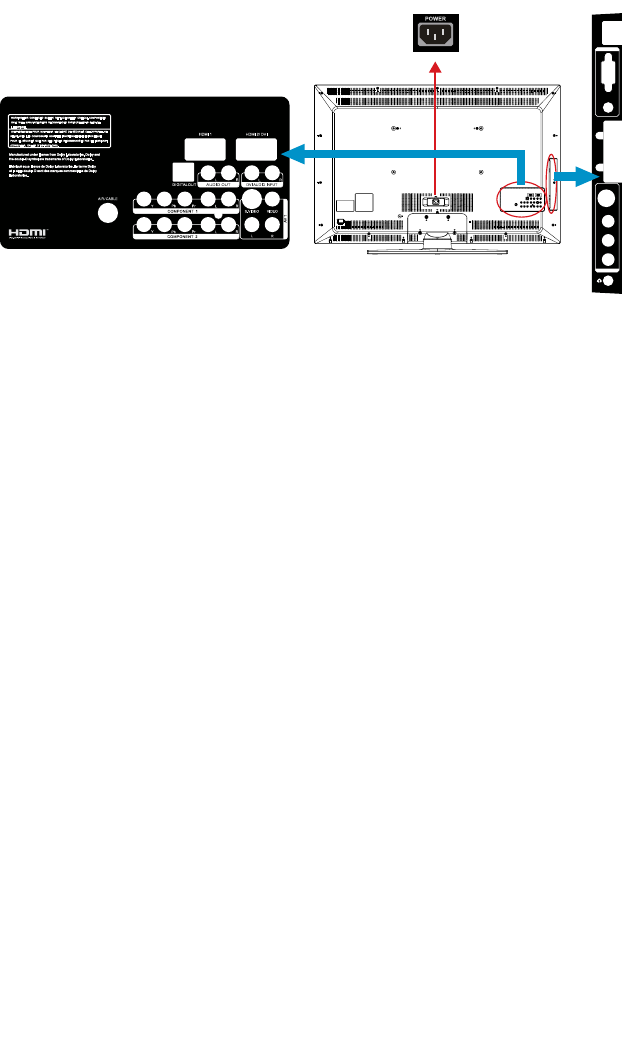

Source Connection Guide
S-VIDEO
VIDEO
L
R
HDMI 3
HDMI 4
AUDIO
RGB
USB/
SERVICE
RGB
AV 2
AC POWER
E461/E551
1. HDMI – Connect the primary source for digital video such as a DVD
multimedia player or set top box through this all digital connector.
2. RGB/AUDIO – Connect the video and audio cables from a computer
here.
3. AV/S-VIDEO – Connect the primary source for composite video devices,
such as a VCR or video game. Use the white and red connectors to
connect the external audio from the same source. The signal being
carried by the S-Video cable and connector, if connected, will take
priority over the Video RCA connector (yellow connector).
4. COMPONENT (Y-PbPr with Audio L/R) – Connect the primary source
for component video devices such as a DVD Player or set top box here.
Use red for Pr, blue for Pb, green for Y, red for right audio (R) and white
for left audio (L) inputs.
5. AIR/CABLE – Connect to an antenna or digital cable (out of-the-wall, not
from Cable Box) for the digital tuner.
6. SPDIF (Optical Digital Audio Out) – When a digital audio signal is
associated with the input selected for viewing, the digital audio will be
available on this SPDIF connection to your home theater system.
7. DVI AUDIO INPUT – This jack provides Audio Input from a DVI source
when connected to the HDMI 2 Input. A DVI (source) to HDMI (Display)
connection must be made to HDMI 2.
8. AUDIO OUT – Connect an external sound system with standard audio
cable to the AUDIO OUT L and R jacks on the back of your display and
to the AUDIO IN jacks on the amplifier.
9. Earphone Output – Connect to the headphones. When the headphone
is inserted to the plug, all the speakers will be muted.
10. USB/SERVICE – This USB slot is for future software upgrades.
Once your AV device is connected, press the Source button on the remote
control to select the relevant source to view. (ex: Press Comp button to select
“Component” if you have connected a source to the Component input.)
