23

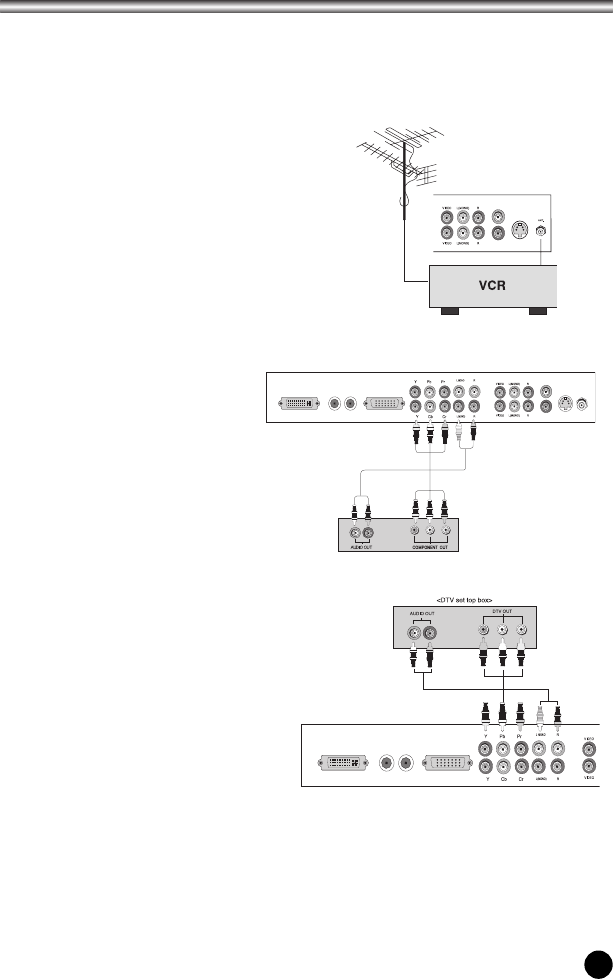

Antenna connection
1. Connect RF out on the VCR to the
Antenna input on the rear of the TV.
2.
Connect the antenna cable to the
antenna in jack
on the VCR.
3.
Use the TV/AV button to select TV mode.
4. Press the PLAY button on the VCR.
COMPONENT INPUT
1. device to the COMPONENT on the TV.
2. Use the TV/AV button to select
COMPONENT mode.
3. Press the PLAY button on the DVD.
DTV Input
1. Connect the DTV video
output sockets(Y,Pb, Pr)
of the DTV set top
box to the DTV
Input sockets of the set.
2. Connect the audio cable from the
DTV set top box to the Audio
Input sockets of the set.
3. Press the TV/AV button to select DTV mode.
External Equipment Connection
You can connect additional equipment, such as VCRs, camcorders etc. to your set.
Examples are shown below.
Note. When connecting to other equipment, please ensure you turn the main switch
OFF to prevent any damage to the equipment.
