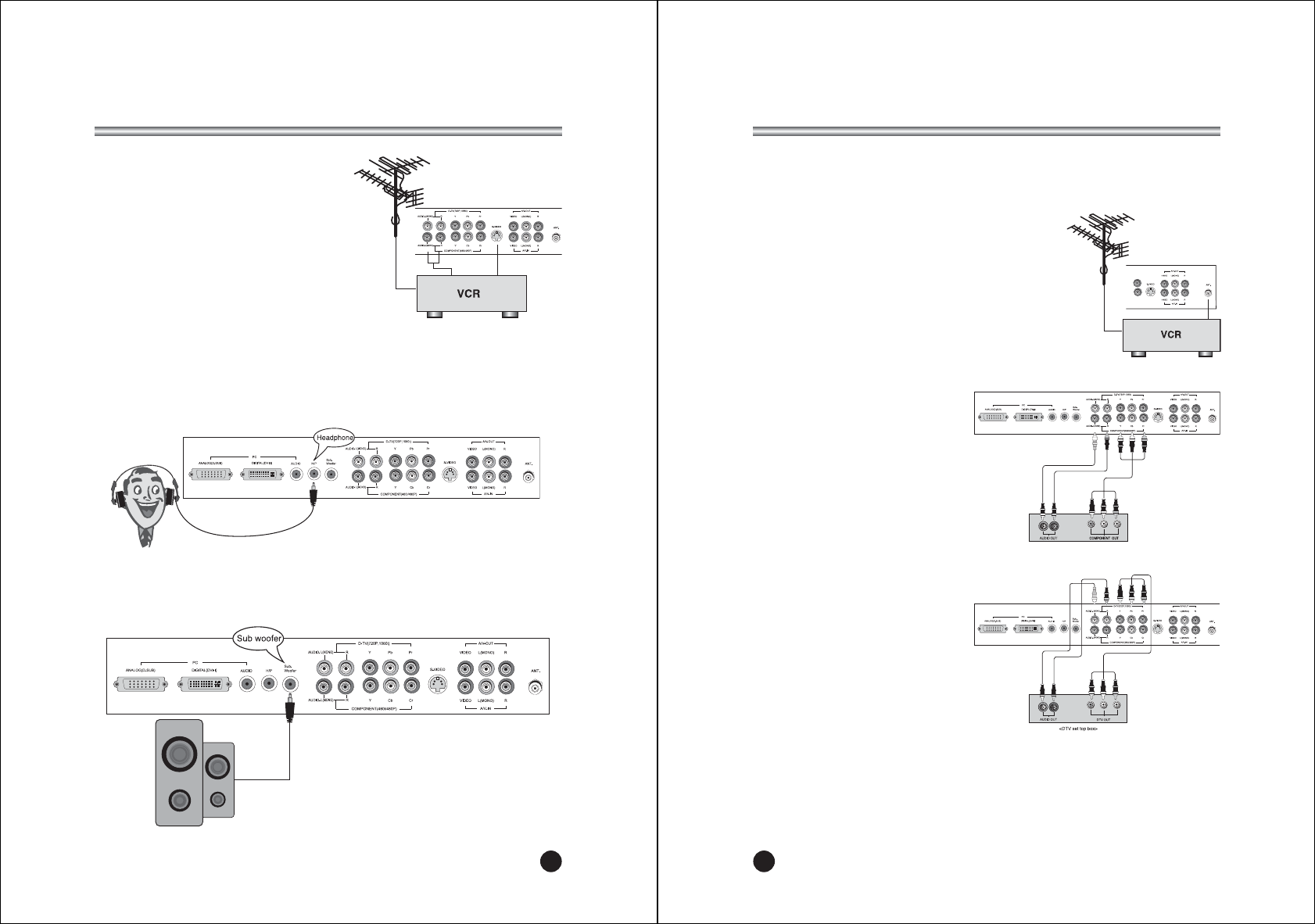

External Equipment Connection
You can connect additional equipment, such as VCRs, camcorders etc. to your set.
Examples are shown below.
When connecting to other equipment, please ensure you turn the main switch OFF to
prevent any damage to the equipment.
Antenna connection
1. Connect RF out on the VCR to the Antenna input
on the rear of the TV.
2. Connect the antenna cable to the antenna in jack
on the VCR.
3. Use the TV/AV button to select TV mode.
4. Press the PLAY button on the VCR.
COMPONENT INPUT
1. Connect the AV out jacks on the AV
device to the COMPONENT on the TV.
2. Use the TV/AV button to select
COMPONENT mode.
3. Press the PLAY button on the DVD.
DTV Input
1. Connect the DTV video output
sockets(Y,Pb, Pr) of the DTV set top
box to the COMPONENT Input
sockets of the set.
2. Connect the audio cable from the DTV set
top box to the Audio Input sockets of the set.
3. Press the TV/AV button to select DTV mode.
23
External Equipment Connection
S-VIDEO input
If using an S-VIDEO source, the picture quality
will be improved over a video source.
1. Connect the S-VIDEO output of a VCR
to the S-VIDEO input on the TV.
2. Connect the audio cables from the
S-VIDEO VCR to the L (MONO) R inputs
on the TV.
3. Select S-VIDEO mode by pressing the
TV/AV button repeatedly.
4. Press the PLAY button on the VCR.
The VCR playback picture appears on the
screen.
Headphone jack
Insert the headphone plug to the headphone jack on the TV. You can listen to the
sound through the headphone; no sound from the speaker on the TV. To adjust the
headphone volume, use the
n
Volume menu in the Sound menu.
Sub woofer output
Connect the cable of the sub woofer to the sub woofer output on the TV.
You can listen to the bass well. To adjust the bass volume, use the Sub woofer menu
in the sound menu.
