PREPARATION FOR USE

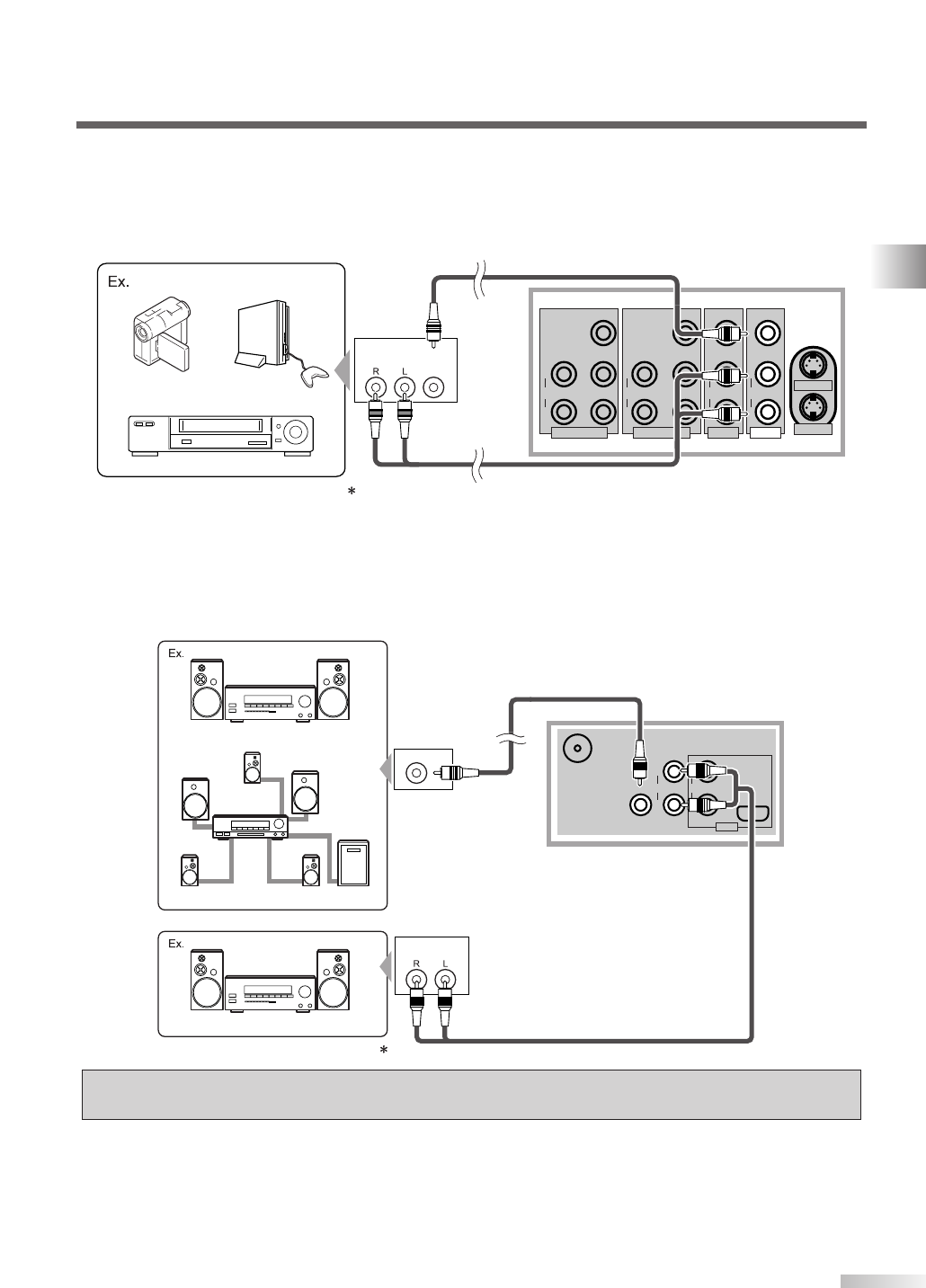

[ANALOG AUDIO/VIDEO CONNECTION]
1) This is the general method to connect this TV to video devices with the video and audio output jacks, such
as VCR, Camcorder, Video Game, etc..
When the audio jack of video devices is monaural, connect this TV to the Audio L jack.
[AUDIO OUTPUT CONNECTION]
1) If you connect this TV to the external audio devices, you can enjoy much more of the broadcasting pro-
grams with the feeling of being at a live program.
Use the Digital Audio Coaxial cable or Audio cable (commercially available) for connection.
Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are
trademarks of Dolby Laboratories.
ANT. IN
AUDIO OUT
L
R
HDMI IN
DIGITAL
AUDIO OUT
(COAXIAL)
AUDIO
L
R
HDMI
AUDIO
IN
COAXIAL
Rear of this TV
MD deck, DAT deck etc.
Stereo system
Dolby Digital decoder
or
To coaxial digital
audio input jack
To DIGITAL AUDIO
OUTPUT jack
To AUDIO
OUTPUT jack
To audio input jacks
Cables not included
S-VIDEO1
S-VIDEO2
VIDEO1
VIDEO
VIDEO2COMPONENT1
VIDEOY
Pb
Pr
COMPONENT2
Y
Pb
Pr
AUDIO
L
R
AUDIO
L
R
AUDIO
L
R
AUDIO
L
R
AUDIO
OUT
VIDEO
OUT
Camcorder
To video
output
jack
To audio output
jacks
To AUDIO INPUT
jacks
To VIDEO1 INPUT jack
Rear of this TV
Video Game
VCR
Cables not included
