PREPARATION FOR USE
EXTERNAL CONNECTION

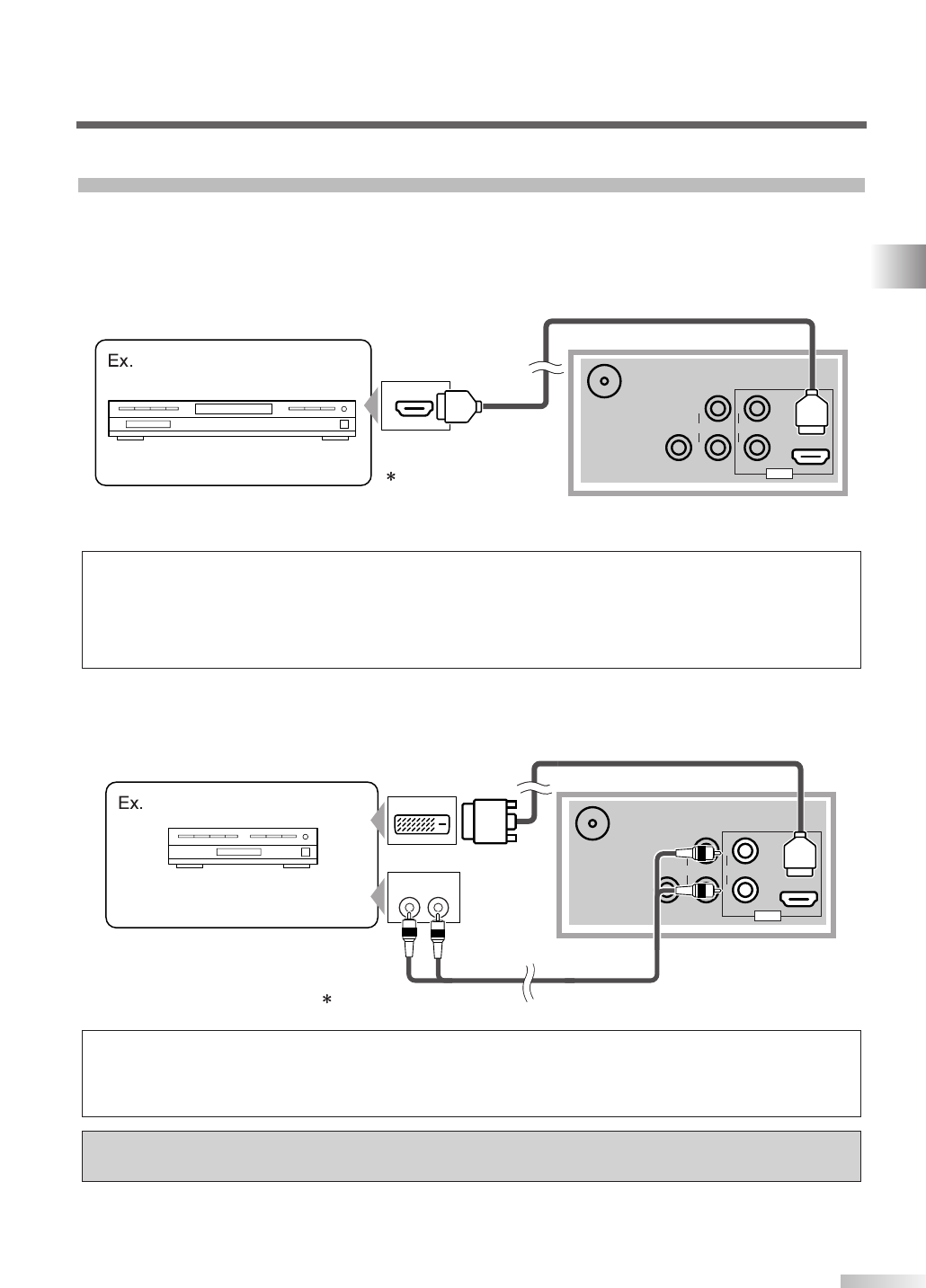

[HDMI CONNECTION]
1) This is the best method to connect this TV to video devices with the HDMI output jack, such as DVD play-
er with HDMI output jack, etc. It can minimize the deterioration of image quality.
Use the HDMI cable (commercially available) for connection.
2) When your video devices has the DVI output jack, use the HDMI conversion cable from DVI output jack
(commercially available) for connection as illustrated below.
“HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered
trademarks of HDMI Licensing LLC.”
NOTE:
This TV accepts 480i / 480p / 720p / 1080i video signals.
Audio signals are converted to an analog signal from the digital if you make a connection above.
DVI does not show image if the 480i does not accept EIA/CEA-861/861B.
ANT. IN
AUDIO OUT
L
R
HDMI IN
DIGITAL
AUDIO OUT
(COAXIAL)
AUDIO
L
R
HDMI
DVI OUT
AUDIO OUT
RL
To DVI output jack
To audio
output jacks
To AUDIO INPUT
jacks
Rear of this TV
To HDMI INPUT jack
Cable Box or Satellite Box
with the DVI output jack
Cables not included
NOTE:
This TV accepts 480i / 480p / 720p / 1080i video signals, and 32kHz / 44.1kHz / 48kHz audio signals.
This TV accepts only 2 channel audio signal (LPCM).
Yo u need to select “PCM” for the digital audio output of the device you connect or the HDMI audio setting. Audio sometimes makes no
sound if you select “Bitstream”, etc..
This TV only accept signals corresponding EIA861.
ANT. IN
AUDIO OUT
L
R
HDMI IN
DIGITAL
AUDIO OUT
(COAXIAL)
AUDIO
L
R
HDMI
HDMI OUT
To HDMI output jack
To HDMI INPUT jack
Rear of this TV
DVD Player with the HDMI output jack
Cables not included
