Sylvania 6632LCT Flat Panel Television User Manual



P
REPARATION FOR USE
8
EN
CONNECTION
This section describes how to connect this TV to reception and other sources.

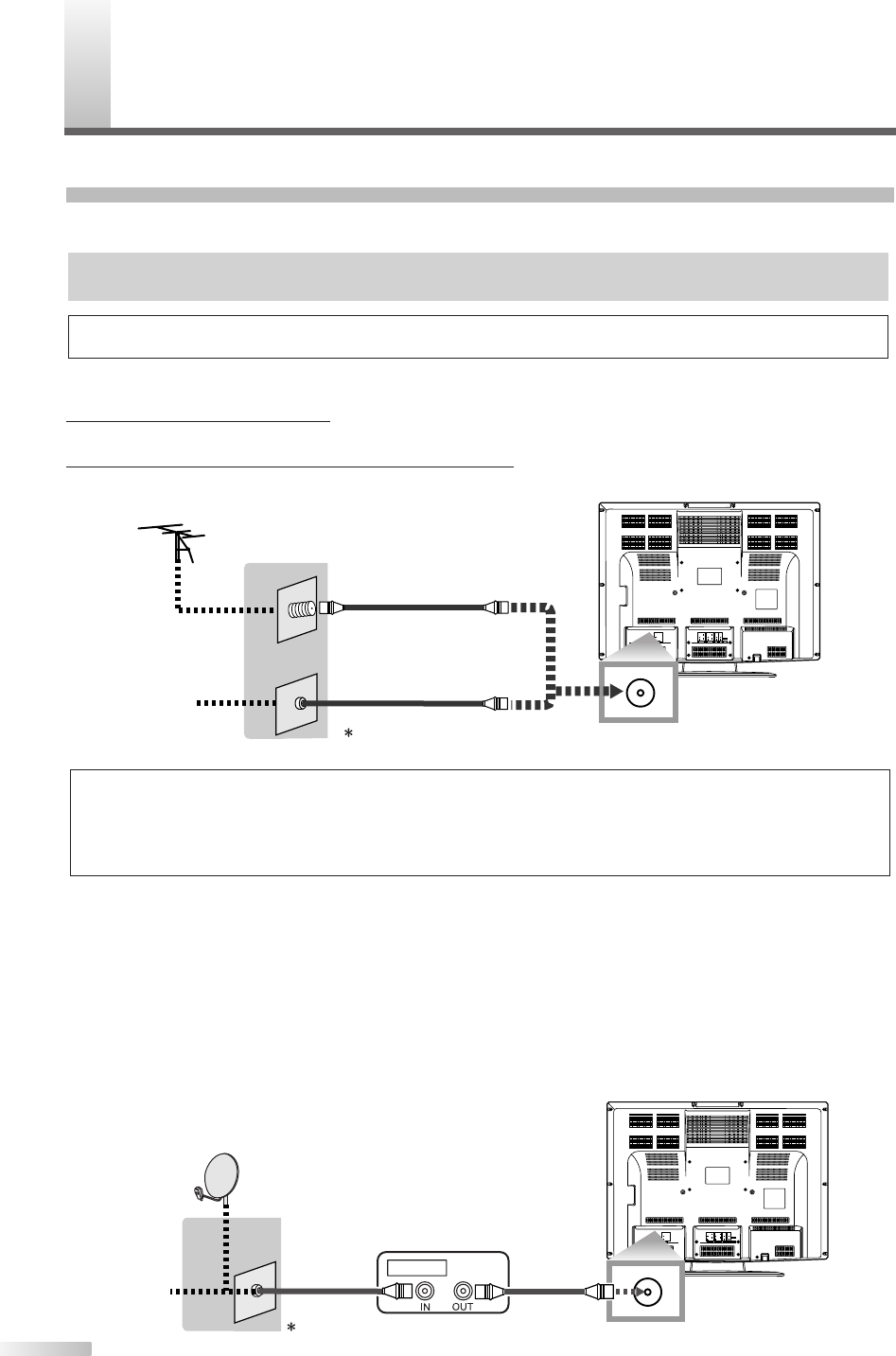

[ANTENNA CABLE CONNECTION]
1) When connecting TV to antenna
Connect the RF cable or antenna cable on your home outlet to the ANT. IN jack of this TV.
2)
When connecting TV to RF/Incoming cable (without box)
Connect the RF cable or incoming cable on your home outlet to the ANT. IN jack of this TV.
*Once connections are completed, turn on the TV and begin initial setup.
Channel scanning is necessary for the TV to memorize all available channels in your area if using antenna
or RF/Incoming cable. (Refer to “INITIAL SETTINGS” on page 12.)
[CONNECTION TO CABLE/SATELLITE BOX]
1) Connect the antenna cable on your home outlet to the input jack of the CABLE/SATELLITE box.
2) Use the corresponding cable to connect the ANT. IN jack of this TV and the output jack of the
CABLE/SATELLITE box.
*Required cables in 2) and connecting methods differ depending on the CABLE/SATELLITE box. For more informa-
tion, please contact the store where you purchased the CABLE/SATELLITE box or nearby electric appliance stores.
ANT. IN
AUDIO OUT
L
R
AUDIO
HDMI IN
L
R
INNER JACKS
DIGITAL
AUDIO OUT
(COAXIAL)
HDMI
S-VIDEO1
S-VIDEO2
COMPONENT2
INNER JACKS
AUDIO
L
RPr
Pb
Y
VIDEO2
VIDEO
AUDIO
L
R
VIDEO1
VIDEO
AUDIO
L
R
COMPONENT1
AUDIO
L
RPr
Pb
Y
ANT. IN
Cable TV
signal
RF Cable
CABLE Box
or SATELLITE Box
or
Satellite
antenna
Rear of this TV
Cables not included
NOTES:
• For your safety and to avoid damages to the unit, unplug the antenna cable from the ANT. IN jack before moving the unit.
If you use an antenna in order to receive analog TV, the same antenna generally will work for DTV reception.
Outdoor or attic antennas will be more effective than set-top versions.
• To easily switch between antenna and cable wires, you can purchase “Antenna Selector” commercially available.
ANT. IN
AUDIO OUT
L
R
AUDIO
HDMI IN
L
R
INNER JACKS
DIGITAL
AUDIO OUT
(COAXIAL)
HDMI
S-VIDEO1
S-VIDEO2
COMPONENT2
INNER JACKS
AUDIO
L
RPr
Pb
Y
VIDEO2
VIDEO
AUDIO
L
R
VIDEO1
VIDEO
AUDIO
L
R
COMPONENT1
AUDIO
L
RPr
Pb
Y
ANT. IN
or
Aerial
antenna
RF Cable
Rear of this TV
Incoming Cable
Cable TV
signal
Cables not included
NOTE:
Be sure that antenna or cable is connected properly before plugging the power cord.
MAKE SURE YOU HAVE AN ANTENNA
As DTV is only available over the air, you need an antenna to receive digital signal.
