INSTALLING THE BATTERIES
Install two AA batteries (supplied) matching the polarity indicated inside battery compartment of the remote
control.
[BATTERY PRECAUTIONS]
• Be sure to follow the correct polarity as indicated in the battery compartment.
Reversed batteries may cause damage to the device.
• Do not mix different types of batteries together (e.g. Alkaline and Carbon-Zinc) or old batteries with fresh
ones.
• If the device is not to be used for a long period of time, remove the batteries to prevent damage or injury
from possible battery leakage.
• Do not try to recharge batteries not intended to be recharged; they can overheat and rupture.

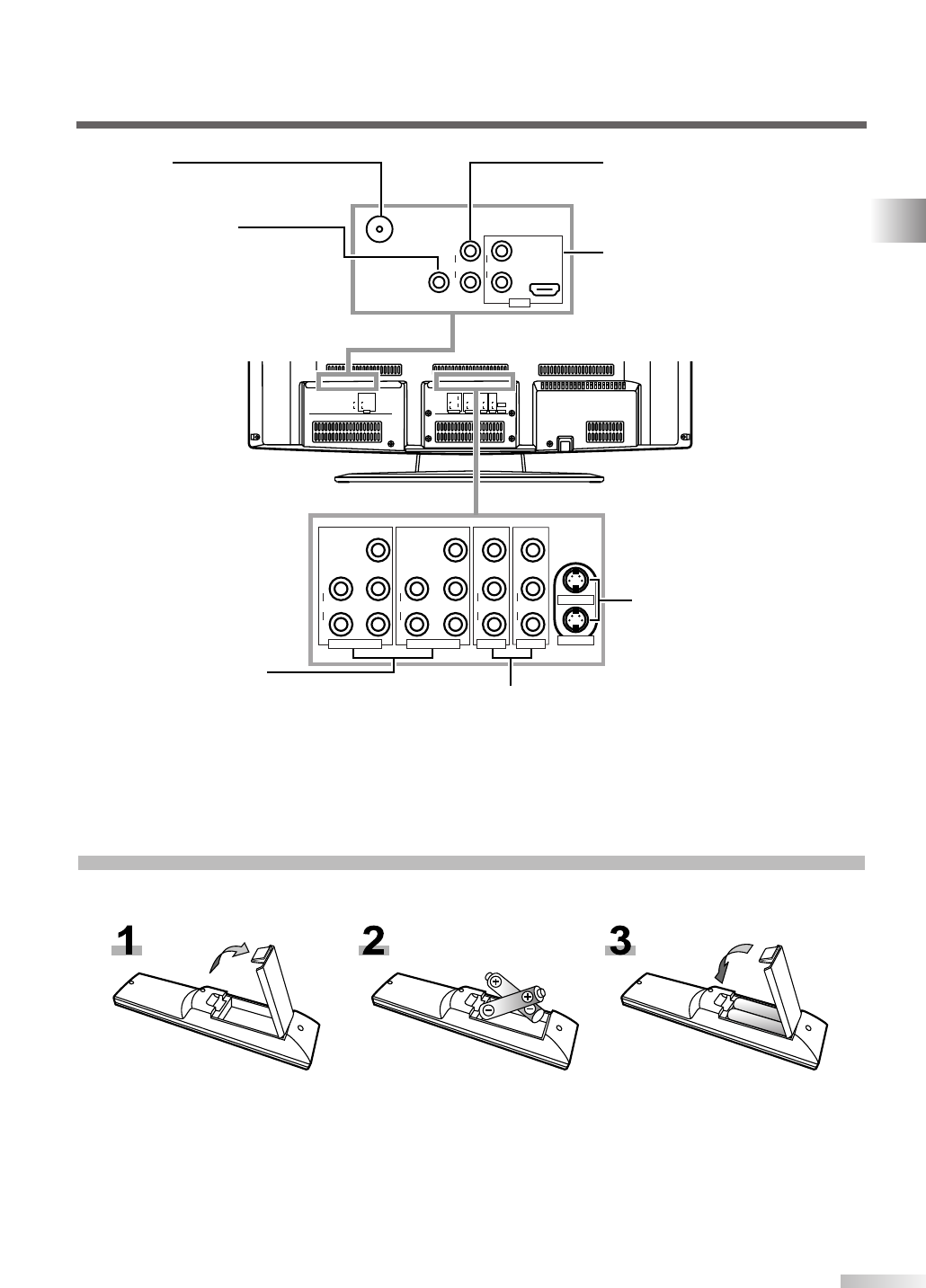

FUNCTIONS
ANT. IN
AUDIO OUT
L
R
AUDIO
HDMI IN
L
R
INNER JACKS
DIGITAL
AUDIO OUT
(COAXIAL)
HDMI
S-VIDEO1
S-VIDEO2
COMPONENT2
INNER JACKS
AUDIO
L
RPr
Pb
Y
VIDEO2
VIDEO
AUDIO
L
R
VIDEO1
VIDEO
AUDIO
L
R
COMPONENT1
AUDIO
L
RPr
Pb
Y
ANT. IN
AUDIO OUT
L
R
HDMI IN
DIGITAL
AUDIO OUT
(COAXIAL)
AUDIO
L
R
HDMI
S-VIDEO1
S-VIDEO2
VIDEO1
VIDEO
VIDEO2COMPONENT1
VIDEOY
Pb
Pr
COMPONENT2
Y
Pb
Pr
AUDIO
L
R
AUDIO
L
R
AUDIO
L
R
AUDIO
L
R
Rear of this TV
from underneath
from underneath
ANT. IN jack
Connect your antenna or cable
box here.
DIGITAL AUDIO OUT
(COAXIAL) jack
Connect an optional coaxial digi-
tal audio cable here through the
coaxial digital audio in jack of a
decoder or audio receiver.
AUDIO OUT jacks
Connect the supplied audio cable
here through the audio in jacks of
audio equipment.
HDMI IN jacks
Connect HDMI cable and audio
cable coming from the HDMI and
audio out jack of external devices.
COMPONENT IN jacks
Connect component cable
and audio cable coming
from the component and
audio out jack of external
devices.
VIDEO IN jacks
Connect video cable and
audio cable coming from
the video and audio out
jack of external devices.
S-VIDEO IN jacks
Connect S-video cable and
audio cable coming from the
S-video and audio jack of
external devices.
