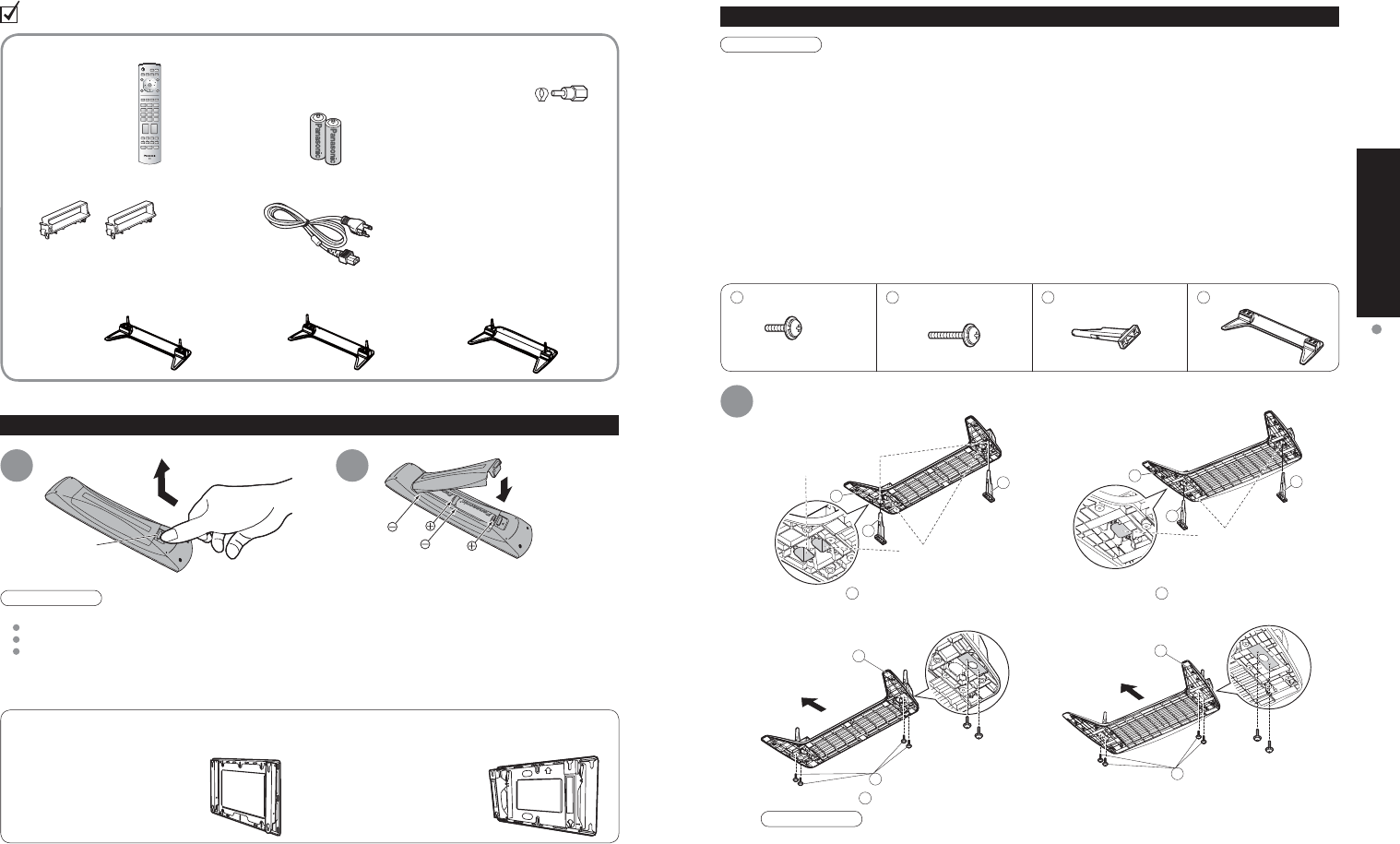

Quick Start Guide
Accessories/Options
Check you have all the items shown.
C
C
D
A
D
C
C
D
A
D
Accessories/Options
Installing remote’s batteries
1
Open
Hook
2
Note the correct polarity (+ or -).
Close
Caution
•
Incorrect installation may cause battery leakage and corrosion, resulting in damage to the remote control unit.
Do not mix old and new batteries.
Do not mix different battery types (such as alkaline and manganese batteries).
Do not use rechargeable (Ni-Cd) batteries.
•
Do not burn or break batteries.
•
Make a note of the remote control codes before changing batteries in case the codes are reset. (p. 37-38)
Wall-hanging bracket
(vertical)
•
TY-WK42PV3U
(TH-37PX60U, TH-42PX60U,
TH-42PX60X, TH-50PX60U,
TH-50PX60X, TH-58PX60U)
(angle)
•
TY-WK42PR2U
•
TY-WK42PR3U
(TH-37PX60U, TH-42PX60U,
TH-42PX60X, TH-50PX60U,
TH-50PX60X)
Optional accessories
Ƒ
Batteries for the Remote
Control Transmitter
(2)
•
AA Battery
Ƒ
AC cord
Ƒ
Remote Control
Transmitter
•
EUR7737Z20
Ƒ
Cable clamper (2)
Ƒ
Antenna Adapter
•
F-Type
for 5C-2V
Ƒ
Operating Instructions
Ƒ
Product Registration Card
(U.S.A.)
Ƒ
Customer Care Plan Card
(U.S.A.)
Ƒ
Warranty Card (TH-42PX60X,
TH-50PX60X)
(Mexico)
Accessories
Attaching the pedestal to the plasma television
Caution
Do not use any television or displays other than those given in this manual.
•
Otherwise the unit may fall over and become damaged, and personal injury may result.
Do not use the pedestal if it becomes warped or physically damaged.
•
If you use the pedestal while it is physically damaged, personal injury may result. Contact your nearest Panasonic
Dealer immediately.
During setting-up, make sure that all screws are securely tightened.
•
If sufficient care is not taken to ensure screws are properly tightened during assembly, the pedestal will not be
strong enough to support the plasma television, and it might fall over and become damaged, and personal injury
may result.
Use the accessory fall-prevention brackets to secure the plasma television.
•
If the unit is knocked or children climb onto the pedestal with the Plasma TV installed, the plasma television may
fall over and personal injury may result.
Two or more people are required to install and remove the television.
•
If two people are not present, the television may be dropped, and personal injury may result.
Accessories for pedestal assembly
A
Assembly screw (4)
B
Assembly screw (4)
C
Pole (2)
D
Base (1)
(37˝, 42˝, 50˝) M5 x 20
(58˝) M6 x 20
M5 x 30
1
Assembling the pedestal
Ŷ
Installing the poles
Ŷ
Securing the poles
For 42˝ ,50˝ Plasma
television (Outside)
For 37˝ Plasma television
(Inside)
Front
Insert the poles
C
into the left and right holes in the underside of the base
D
so that they fit securely as
shown in the illustration above.
Use the assembly
A
screws to secure the poles firmly to the bottom of the base.
Note
Forcing the assembly screws the wrong way will strip the threads.
For 58˝ Plasma television
Front
•
TBL2AX00051
(TH-50PX60U, TH-50PX60X)
Ƒ
Pedestal
•
TBL2AX00011
(TH-37PX60U, TH-42PX60U,
TH-42PX60X)
•
TBL2AX00081
(TH-58PX60U)
