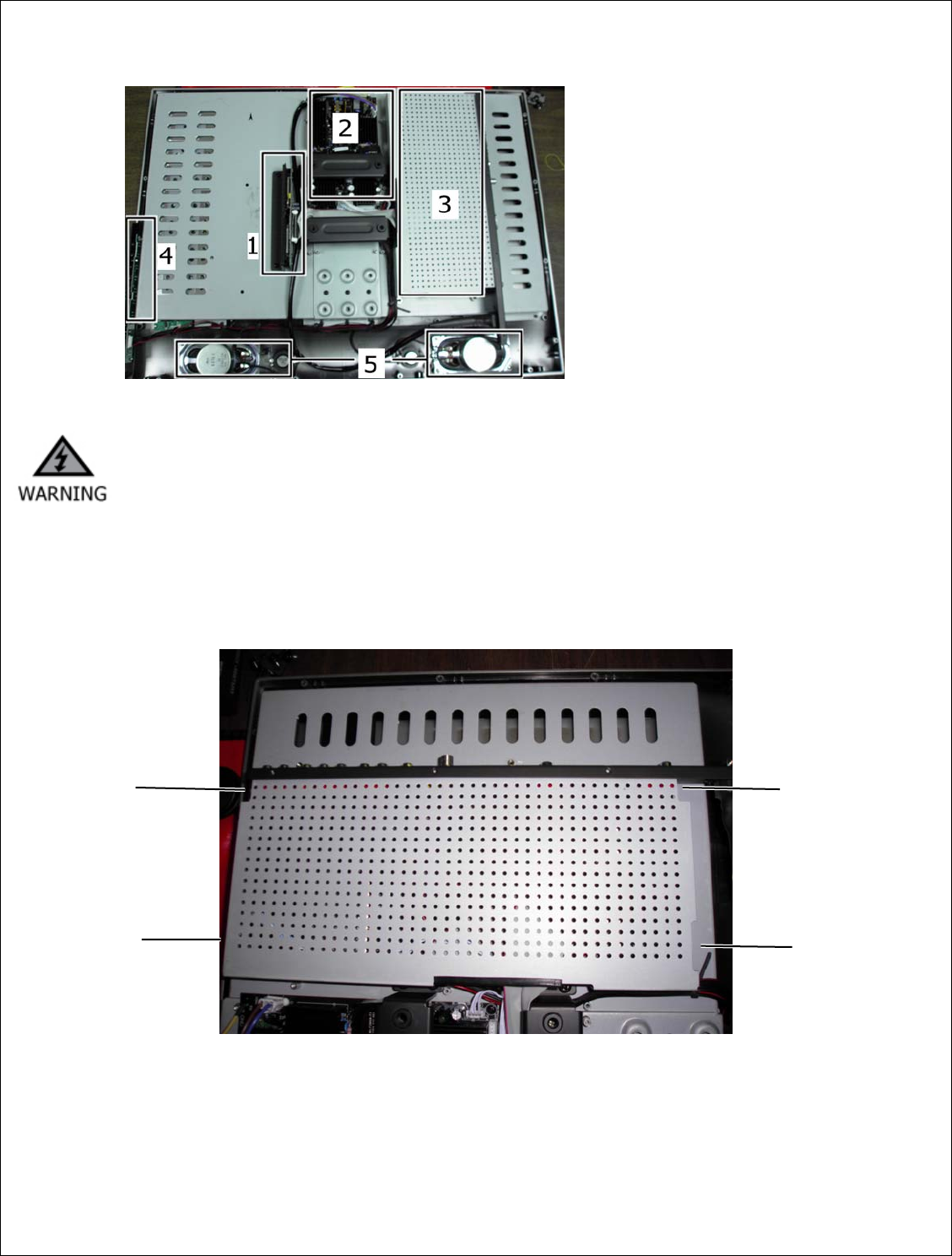

Main Board Removal and Replacement
(1) DVD Module Board
(2) Power Board
(3) Main Board
(4) Control Button Board
(5) Speakers
Note: Before disassembly of any part the TV, make sure the power is OFF, and the
power cord is removed from the wall outlet. Allow time for power within all system
boards to discharge before you begin disassembly. Never insert any objects into the
vent holes in the TV case.
(1) Remove rear cover and baffles as shown in the section, Disassembly Procedure on page 17.
(2) Remove the 4 screws from the top and bottom of the main board cover (Location A), and remove the cover.
20
A
A
A
A
