References
Location of Controls

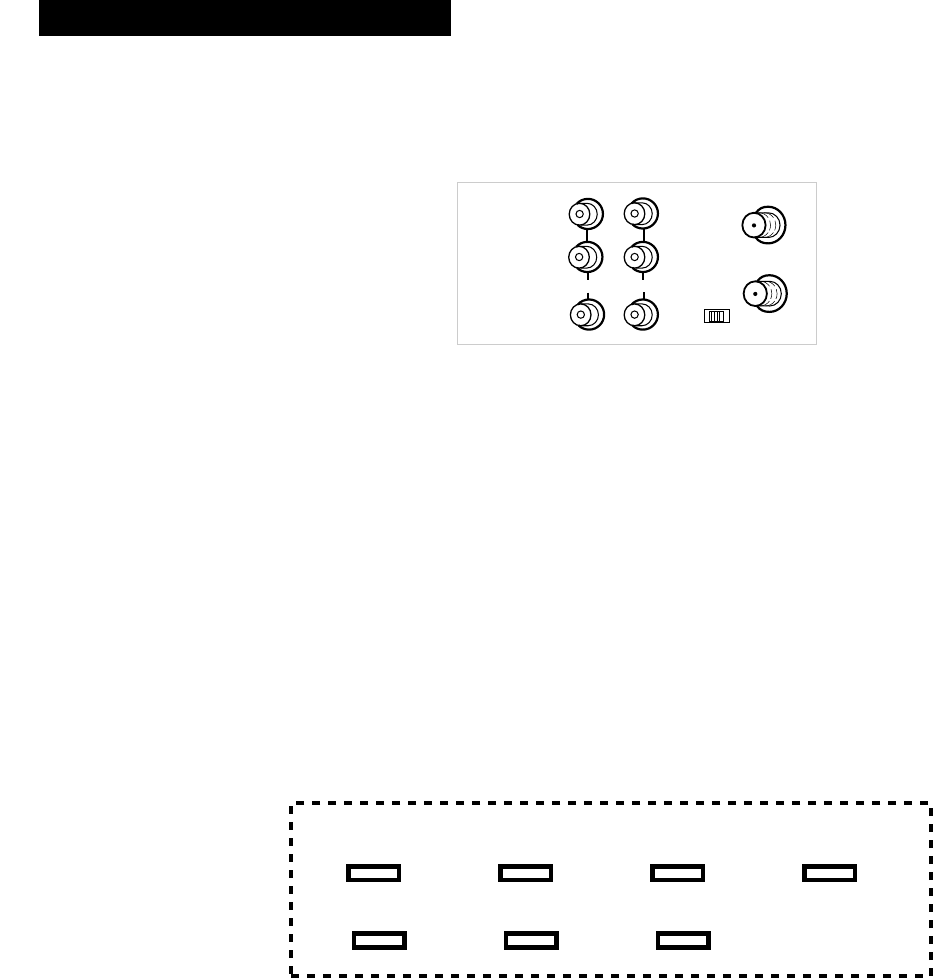

Back Panel
3CH.4 Switch
Selects the channel to which you tune the TV to
see the VCR picture if you connect the VCR
using one of the basic hookups.
IN FROM ANT. (Antenna) Connector
Receives a signal from an antenna or cable
system when attached.
OUT TO TV Connector
Passes signal to TV using the cable supplied.
VIDEO1 IN and AUDIO1 (R and L) IN Jacks
Receive signals from another component like a
VCR or camcorder when it is connected to these
jacks. Use INPUT on the remote to select.
VIDEO1 OUT and AUDIO1 (R and L) OUT Jacks
Send signals from VCR to another component like
a VCR or camcorder when it is connected to these
jacks.
OUT TO TV
IN FROM
ANT.
VHF/UHF
3 CH. 4
IN
AUDIO1
VIDEO1
R
L
OUT
Hi-Fi Indicator
Lights when PLAYBACK: HI-FI/MIX/LINEAR
feature is set to HI-FI or MIX.
POWER Indicator
Lights when the VCR is turned on.
RECORD Indicator
Lights when the VCR is recording.
STEREO Indicator
Lights when the station you are tuned to is
broadcasting stereo.
SAP Indicator
Lights when the station you are tuned to is
broadcasting SAP.
POWER VCR TIMER RECORD
Hi-Fi STEREO SAP
Display Panel
TIMER Indicator
Shows VCR is set for timer recording when VCR is
turned off.
Flashes when the clock is not set or a timer
recording is set and there is no cassette in the VCR.
VCR Indicator
Lights when using the TV•VCR button.
When using one of the basic hookups:
• The picture is coming from the VCR when the
VCR indicator is on.
• The picture is coming from the television
channels when the VCR indicator is off.
