Installation
Runco VX-8d Installation/Operation Manual 25
PRE
L
IMINAR
Y

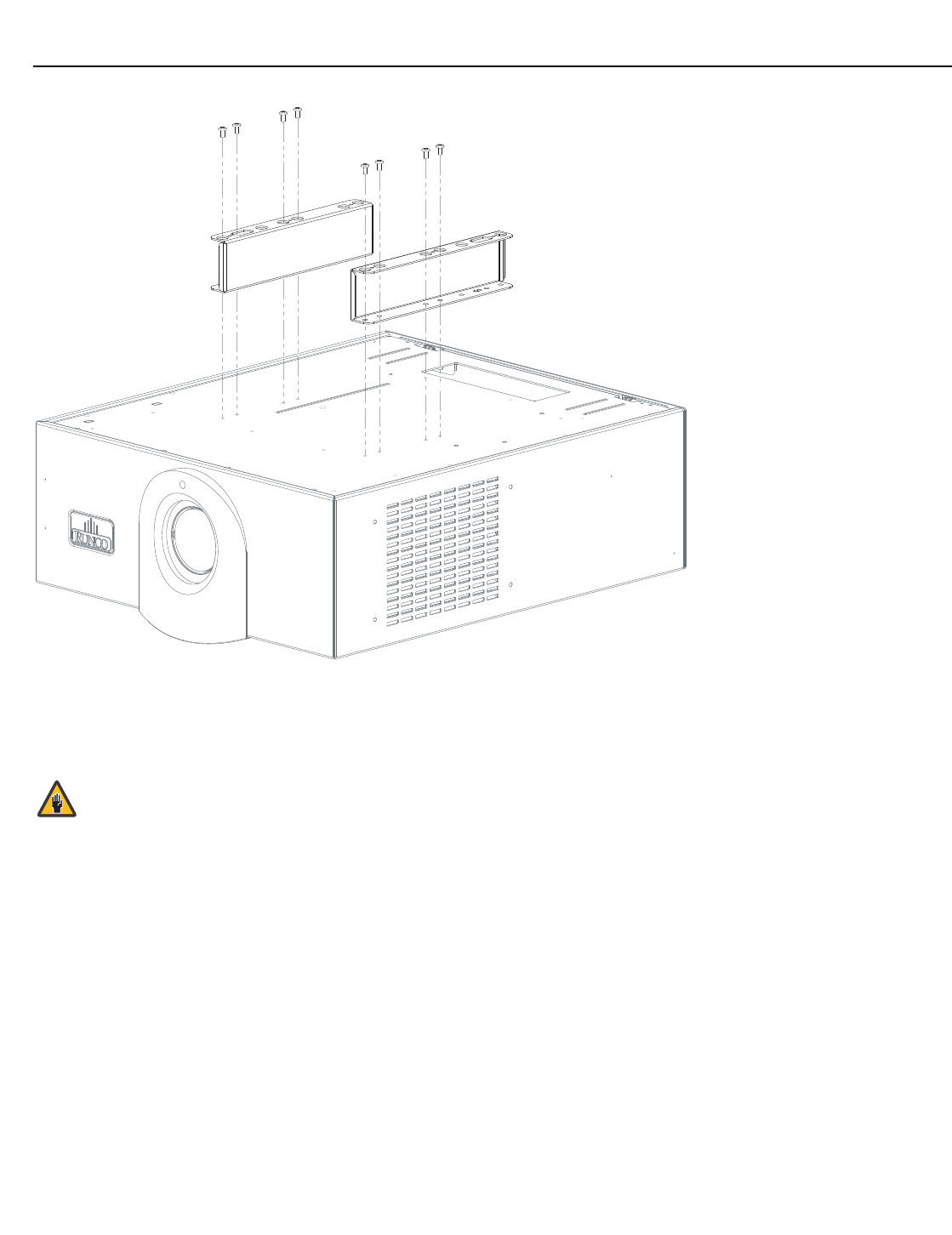

Figure 3-7. Installing the Ceiling Mount Adapters/Projector Stands
Install Lens Motor: Position the AutoScope Lens Motor as shown in Figure 3-8. Line up
the mounting holes on the lens motor housing with those on the underside of the
projector. Secure the motor to the projector with the four remaining Pan-Head Phillips
screws.
DO NOT OVER-TIGHTEN THE SCREWS.
Caution
