Runco VX-8d Installation/Operation Manual 27
PRE
L
IMINAR
Y
Installing the Fixed
CineWide Base Plate
(VX-8d/CineWide)

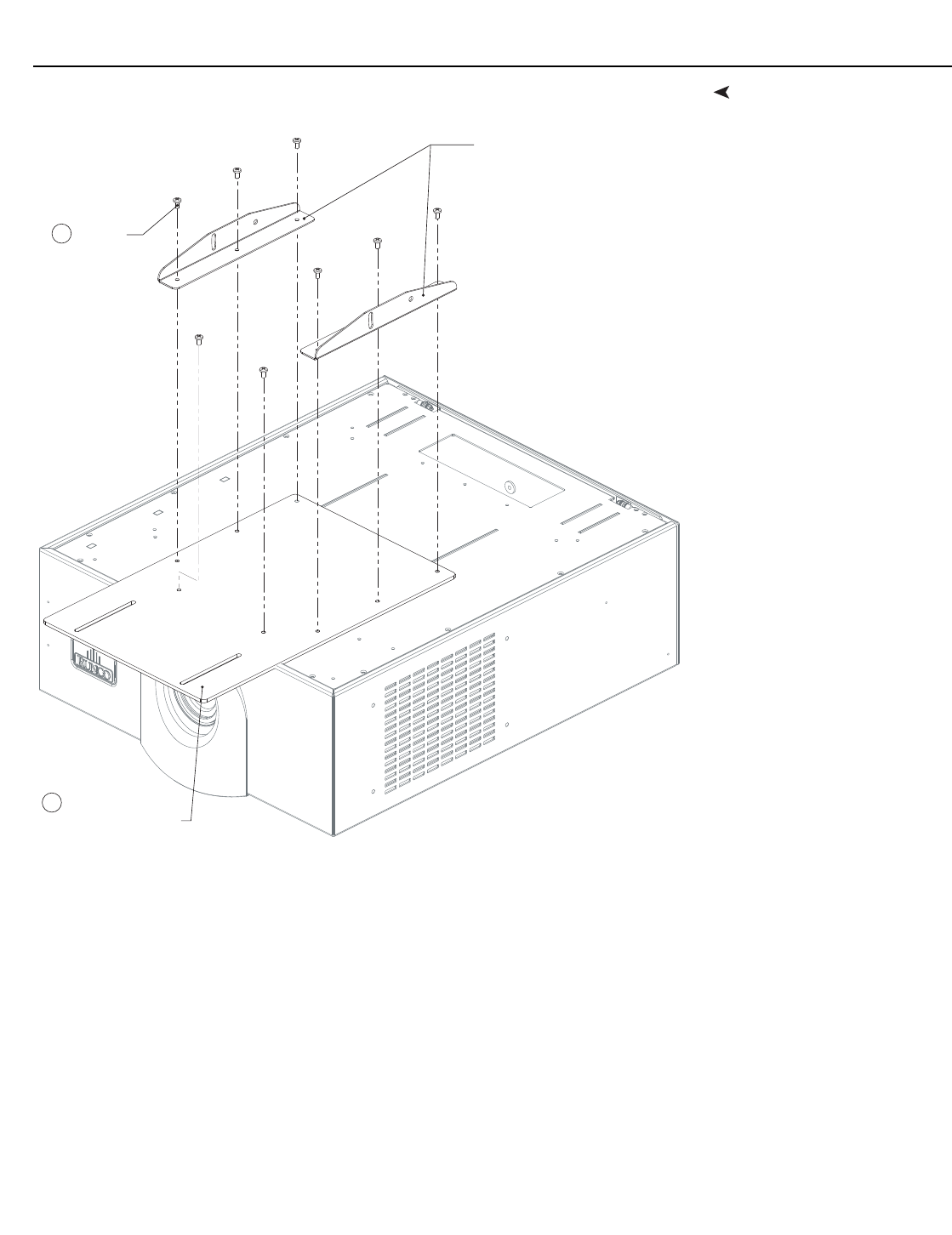

Figure 3-9 shows the anamorphic lens base plate assembly for a VX-8d/CineWide.
Figure 3-9. VX-8d/CineWide with Anamorphic Lens Base Plate and Ceiling
Mounting Rails - Exploded View
To install the fixed CineWide base plate on a VX-8d/CineWide:
1. Place the projector upside down on a blanket or other soft surface.
2. Place the CineWide base plate on the bottom of the projector.
3. If you are mounting the projector on a ceiling: Line up the three holes on the left
and right mounting rails (included with the projector ceiling mount kit) with those on
the bottom of the projector and CineWide base plate.
Ceiling Mount
Rails (part of
Ceiling Mount
Kit)
Anamorphic
Lens Base Plate
Screw,
Phillips
Pan-Head,
10-32 x
3/8” (8x)
1
2
